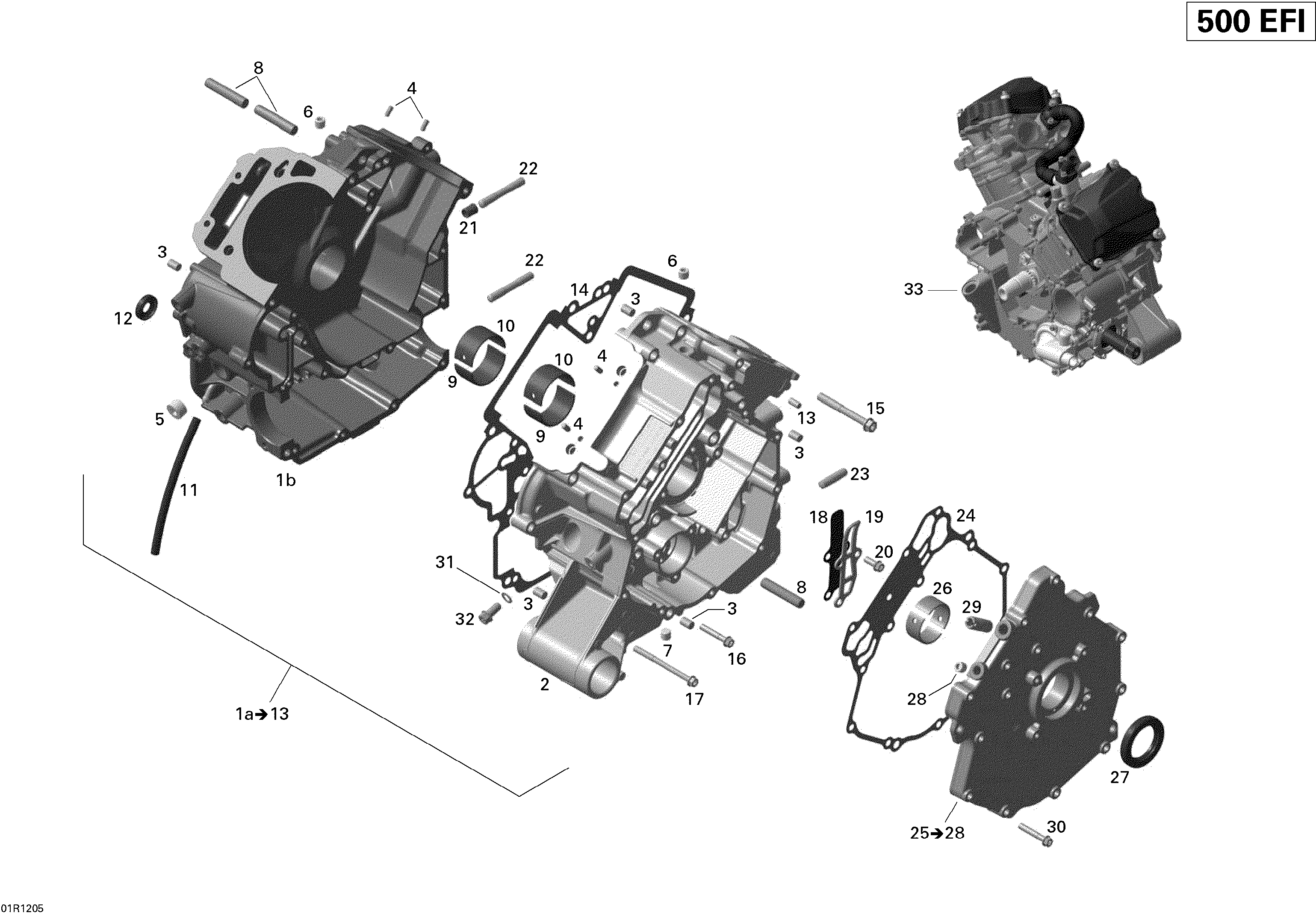

01- Crankcase для BRP Outlander MAX 500EFI STD & XT - 2012
-
№АртикулНазвание
-
1a420685317 Crankcase Ass'y. Includes 1a to 13Crankcase Ass'y. Includes 1a to 13
-
3420632010 Center Pin 8 X 12Center Pin 8 X 12
-
4420929650 Drive Pin 5 X 10Drive Pin 5 X 10
-
5420240170 Plug Screw M18 X 1.5Plug Screw M18 X 1.5
-
6420641323 Plug Screw M10 X 1Plug Screw M10 X 1
-
7420840657 Plug Screw M12 X 1.5Plug Screw M12 X 1.5
-
8420229302 Location PinLocation Pin
-
9420233962 Bearing SleeveBearing Sleeve
-
10420233967 Bearing SleeveBearing Sleeve
-
12420650310 Oil SealOil Seal
-
13420932780 Needle PinNeedle Pin
-
14420651220 GasketGasket
-
15420440402 Flanged Torx Screw M8 X 65Flanged Torx Screw M8 X 65
-
16420641258 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
17420440657 Flanged Torx Screw M6 X 75Flanged Torx Screw M6 X 75
-
18420224720 Valve PlateValve Plate
-
19420224725 Reed Valve StopReed Valve Stop
-
20420641048 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
21420929670 Dowel Pin 10 X 13Dowel Pin 10 X 13
-
22420240814 StudStud
-
23420840719 StudStud
-
24420651211 GasketGasket
-
25420612128 PTO Cover Ass'y. Includes 25 to 28PTO Cover Ass'y. Includes 25 to 28
-
26420233995 Bearing SleeveBearing Sleeve
-
27420631932 Oil SealOil Seal
-
28420641323 Plug Screw M10 X 1Plug Screw M10 X 1
-
29420256332 Hose NippleHose Nipple
-
30420641258 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
31420950141 Sealing RingSealing Ring
-
32420440852 Flanged Torx Screw M8 X 16Flanged Torx Screw M8 X 16
-
33420049036 Long Block, 500 EFILong Block, 500 EFI
