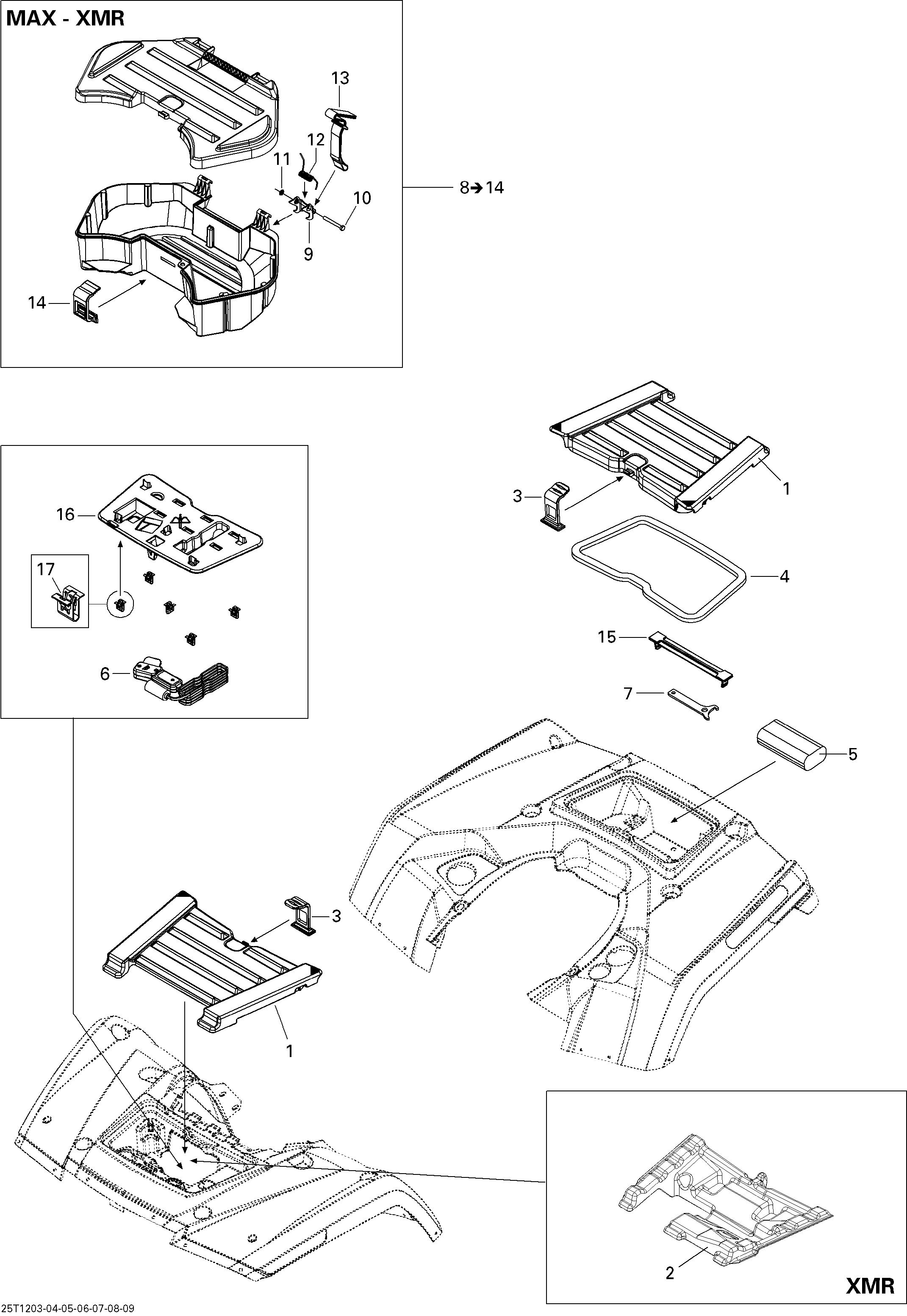

09- Front and Rear Trays для BRP Outlander MAX 500EFI STD & XT - 2012
-
№АртикулНазвание
-
1705003492 Storage CoverStorage Cover
-
3708200120 Cover LatchCover Latch
-
4293250192 Neoprene SealNeoprene Seal
-
5704700148 Tool KitTool Kit
-
6710002270 Remote Control. XTRemote Control. XT
-
7529000035 Adjustement WrenchAdjustement Wrench
-
8708200119 Box Ass'yBox Ass'y
-
9708200066 LatchLatch
-
10207065544 Hex. Screw M6 X 55Hex. Screw M6 X 55
-
11732610072 Push NutPush Nut
-
12708000369 SpringSpring
-
13510004495 BeltBelt
-
14708200120 Cover LatchCover Latch
-
15708200121 Cover Latch KitCover Latch Kit
-
16708200075 Support. XTSupport. XT
-
17517302785 Clip. XTClip. XT
