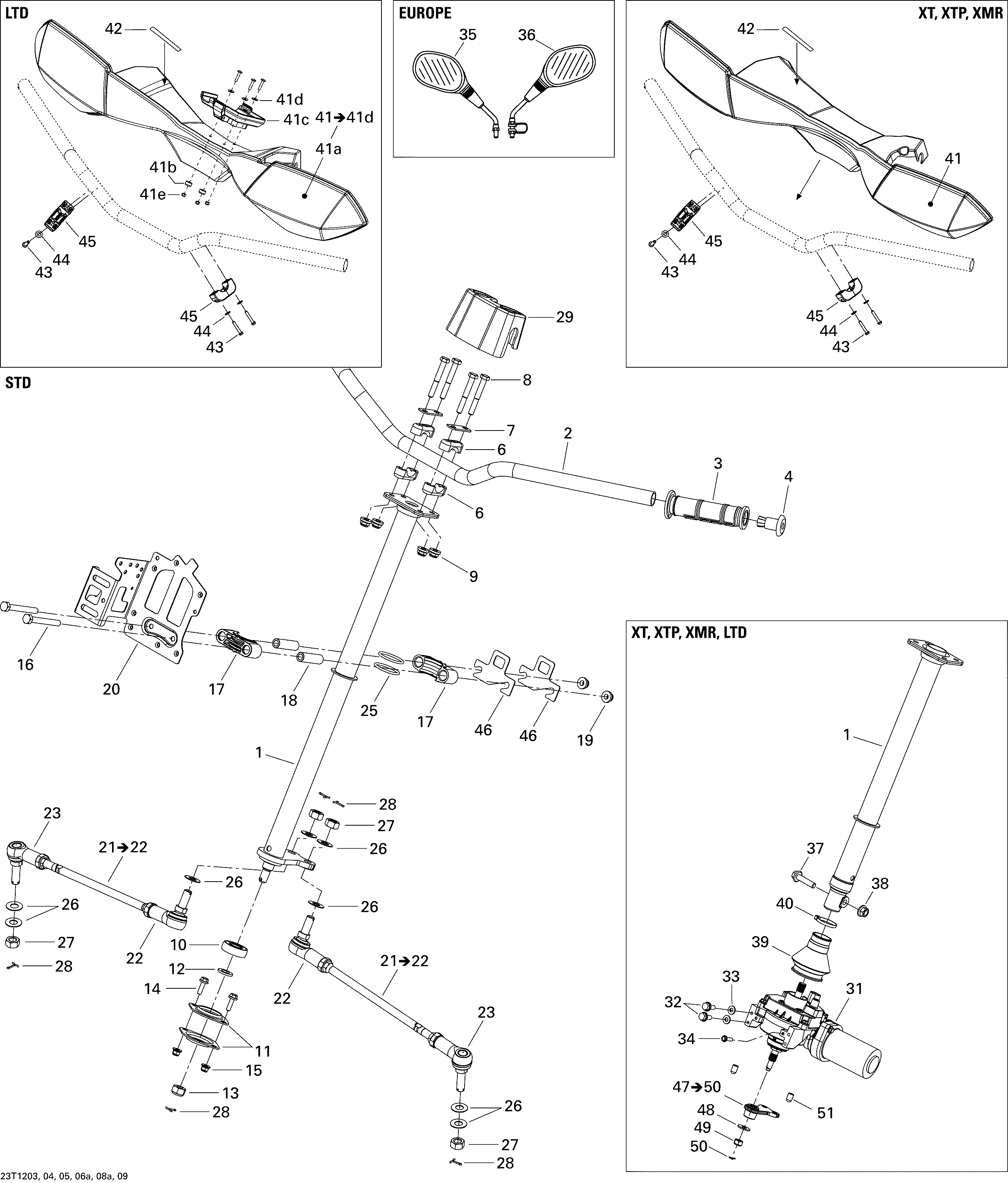

07- Steering для BRP Outlander MAX 500EFI STD & XT - 2012
-
№АртикулНазвание
-
1709400968 Main Tube, Black. XTMain Tube, Black. XT
-
1709400971 Main Tube, Black. STDMain Tube, Black. STD
-
2709400877 Handle Bar, BlackHandle Bar, Black
-
3709400493 Handle GripHandle Grip
-
4709400449 End PieceEnd Piece
-
6709400919 Steering SupportSteering Support
-
7709400509 StiffnerStiffner
-
8207086046 Hex. Screw M8 X 60Hex. Screw M8 X 60
-
9233281416 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
10709400439 Ball Bearing. STDBall Bearing. STD
-
11709400152 Thrust Washer. STDThrust Washer. STD
-
12234021410 Flat Washer 12 mm. STDFlat Washer 12 mm. STD
-
13250000047 Hex. Flanged Elastic Nut M12. STDHex. Flanged Elastic Nut M12. STD
-
14207562044 Flanged Screw M6 X 20, Scotch Grip. STDFlanged Screw M6 X 20, Scotch Grip. STD
-
15233261414 Hex. Flanged Elastic Nut M6. STDHex. Flanged Elastic Nut M6. STD
-
16207087044 Hex. Screw M8 X 70Hex. Screw M8 X 70
-
17709400471 Half BushingHalf Bushing
-
18709400072 BushingBushing
-
19233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
20709400751 Module SupportModule Support
-
21709401059 Tie Rod Ass'yTie Rod Ass'y
-
22709400486 Ball Joint, LH ThreadsBall Joint, LH Threads
-
23709400487 Ball Joint, RH ThreadsBall Joint, RH Threads
-
25293300068 O-RingO-Ring
-
26706200281 Hardened WasherHardened Washer
-
27250100099 Nut M12Nut M12
-
28211400013 Cotter Pin. STDCotter Pin. STD
-
28211400013 Cotter PinCotter Pin
-
29709400278 Steering Cover. STDSteering Cover. STD
-
31709401071 Power Steering Assist. XTPower Steering Assist. XT
-
32207582044 Hex. Flanged Screw M8 X 20, Scotch Grip. XTHex. Flanged Screw M8 X 20, Scotch Grip. XT
-
33234281474 Conical Spring Washer M8. XTConical Spring Washer M8. XT
-
34210252040 Hex. Forming Screw. XTHex. Forming Screw. XT
-
35709400406 LH Mirror. EuropeLH Mirror. Europe
-
36709400407 RH Mirror. EuropeRH Mirror. Europe
-
37207683544 Hex. Flanged Screw M8 X 35. XTHex. Flanged Screw M8 X 35. XT
-
38233281414 Hex. Flanged Elastic Nut M8. XTHex. Flanged Elastic Nut M8. XT
-
39709400674 Bellows. XTBellows. XT
-
40414115200 Tie-Rap 180 mm. XTTie-Rap 180 mm. XT
-
41703100251 Handle Bar Protector. XTHandle Bar Protector. XT
-
42704901558 Decal, Dynamic Power Steering. XTDecal, Dynamic Power Steering. XT
-
43241142560 Hex. Flanged Screw K40 X 25. XTHex. Flanged Screw K40 X 25. XT
-
44211200035 Flat Washer. XTFlat Washer. XT
-
45517303264 U-Clamp. XTU-Clamp. XT
-
46709400734 Shim 2 mm. STDShim 2 mm. STD
-
46709400734 Shim 2 mm. XTShim 2 mm. XT
-
46709400735 Shim 1 mm. XTShim 1 mm. XT
-
47703500784 Lower Main Tube Kit. Includes 47 to 50, XTLower Main Tube Kit. Includes 47 to 50, XT
-
48250200086 Flat Washer. XTFlat Washer. XT
-
49250000047 Hex. Flanged Elastic Nut M12. XTHex. Flanged Elastic Nut M12. XT
-
50250400034 Cotter Pin. XTCotter Pin. XT
-
51709401032 Cap. XTCap. XT
