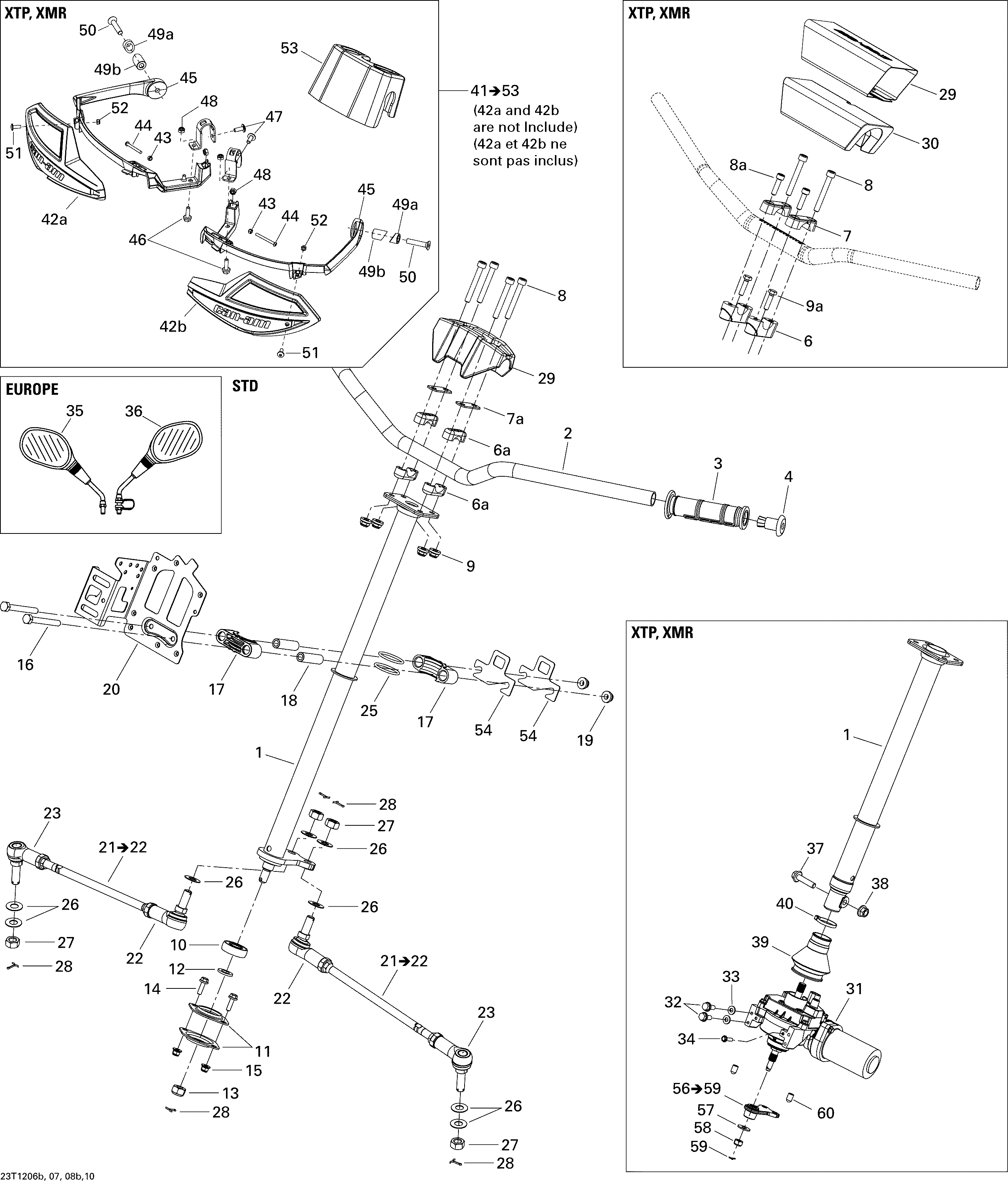

07- Steering XTP для BRP Outlander MAX 800REFI STD, XT & XT-P - 2012
-
№АртикулНазвание
-
1709400968 Main Tube, BlackMain Tube, Black
-
2709400513 Aluminum- Handle BarAluminum- Handle Bar
-
3709400493 Handle GripHandle Grip
-
6709400497 Steering SupportSteering Support
-
7709400496 SupportSupport
-
8205086060 Socket Head Screw M8 X 60Socket Head Screw M8 X 60
-
8a205083060 Socket Screw M8 X 30Socket Screw M8 X 30
-
9233281416 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
9a207183060 Hex. Screw M8 X 30Hex. Screw M8 X 30
-
16207087044 Hex. Screw M8 X 70Hex. Screw M8 X 70
-
17709400471 Half BushingHalf Bushing
-
18709400072 BushingBushing
-
19233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
20709400751 Module SupportModule Support
-
21709401059 Tie Rod Ass'yTie Rod Ass'y
-
22709400486 Ball Joint, LH ThreadsBall Joint, LH Threads
-
23709400487 Ball Joint, RH ThreadsBall Joint, RH Threads
-
25293300068 O-RingO-Ring
-
26706200281 Hardened WasherHardened Washer
-
27250100099 Nut M12Nut M12
-
28211400013 Cotter PinCotter Pin
-
29709400519 CoverCover
-
30709400422 FoamFoam
-
31709401071 Power Steering AssistPower Steering Assist
-
32207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
33234281474 Conical Spring Washer M8Conical Spring Washer M8
-
34210252040 Hex. Forming ScrewHex. Forming Screw
-
35709400406 LH MirrorLH Mirror
-
36709400523 RH MirrorRH Mirror
-
35709400406 LH Mirror. EuropeLH Mirror. Europe
-
36709400407 RH Mirror. EuropeRH Mirror. Europe
-
37207683544 Hex. Flanged Screw M8 X 35Hex. Flanged Screw M8 X 35
-
38233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
39709400674 BellowsBellows
-
40414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
41715000545 Deflector Support Kit. Includes 41 to 53Deflector Support Kit. Includes 41 to 53
-
42a709400530 RH Air DeflectorRH Air Deflector
-
42b709400531 LH Air DeflectorLH Air Deflector
-
43205444086 Socket Head Screw M4 X 40Socket Head Screw M4 X 40
-
44232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
46207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
47250000223 Torx Screw M6 X 16Torx Screw M6 X 16
-
48232061404 Hexagonal NutHexagonal Nut
-
49a709400161 BracketBracket
-
49b709400162 BracketBracket
-
50205384034 Socket Head ScrewSocket Head Screw
-
51250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
52232551600 Hex. Elastic Nut M5Hex. Elastic Nut M5
-
53709400278 Steering CoverSteering Cover
-
54709400734 Shim 2 mmShim 2 mm
-
54709400735 Shim 1 mmShim 1 mm
-
56703500784 Lower Main Tube Kit. Includes 56 to 59Lower Main Tube Kit. Includes 56 to 59
-
57250200086 Flat WasherFlat Washer
-
58250000047 Hex. Flanged Elastic Nut M12Hex. Flanged Elastic Nut M12
-
59250400034 Cotter PinCotter Pin
-
60709401032 CapCap
