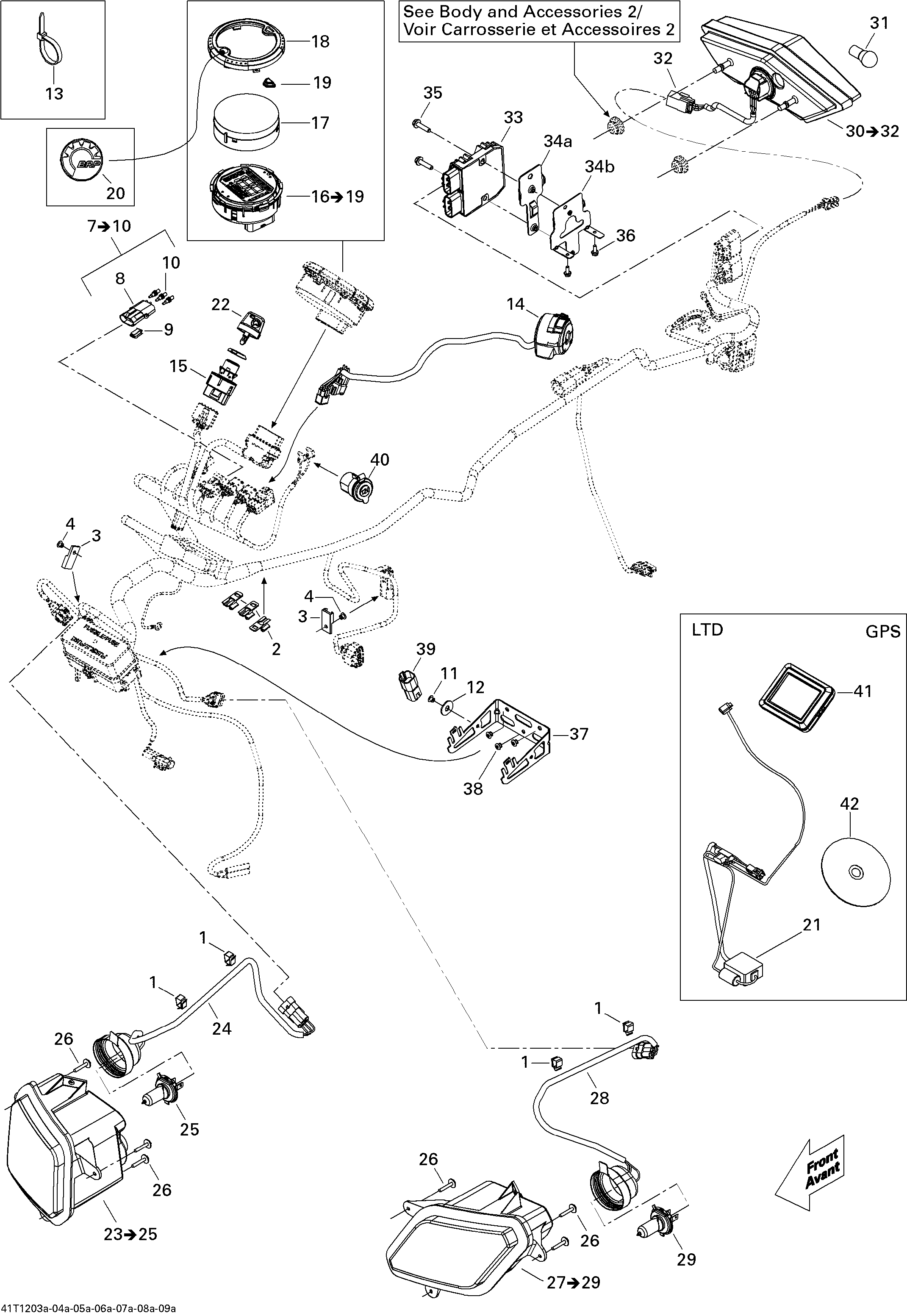

10- Electrical Accessories 1 для BRP Outlander MAX 800REFI STD, XT & XT-P - 2012
-
№АртикулНазвание
-
1414227300 ClipClip
-
2515175283 Housing Support. EuropeHousing Support. Europe
-
2515175283 Housing SupportHousing Support
-
3270000141 ClipClip
-
4390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
7710000917 Connector Ass'y. Includes 7 to 10Connector Ass'y. Includes 7 to 10
-
8278000281 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
9710000992 ClipClip
-
10278000216 Wire SealWire Seal
-
11390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
12517124300 WasherWasher
-
13293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
13293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
13293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
13414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
13293750041 Tie-rap 627 mmTie-rap 627 mm
-
14710003038 Multi-Fonction Handle. STDMulti-Fonction Handle. STD
-
14710003039 Multi-fonction Handle. XT, XTP, XMR, LTDMulti-fonction Handle. XT, XTP, XMR, LTD
-
14710003037 Multi-Function Handle. EuropeMulti-Function Handle. Europe
-
15710002324 Ignition SwitchIgnition Switch
-
16710001978 Speedometer Ass'y. Includes 16 to 19Speedometer Ass'y. Includes 16 to 19
-
17415129320 LensLens
-
18710001416 Trim RingTrim Ring
-
19710001473 ButtonButton
-
20704901270 BRP Logo, 13 mmBRP Logo, 13 mm
-
22710000817 Black-Electronic KeyBlack-Electronic Key
-
22710000817 Black-Electronic Key. EuropeBlack-Electronic Key. Europe
-
23710001496 RH Headlamp Ass'y. Includes 23 to 25RH Headlamp Ass'y. Includes 23 to 25
-
23710000861 RH Headlamp Ass'y. Europe, Includes 23 to 25RH Headlamp Ass'y. Europe, Includes 23 to 25
-
24710000923 Headlamp HarnessHeadlamp Harness
-
25710000871 Bulb, 12V 35/35WBulb, 12V 35/35W
-
26250000101 Plastite Screw Type K-40, M4 X 25Plastite Screw Type K-40, M4 X 25
-
27710001497 LH Headlamp Ass'y. Includes 27 to 29LH Headlamp Ass'y. Includes 27 to 29
-
27710000862 LH Headlamp Ass'y. Europe, Includes 27 to 29LH Headlamp Ass'y. Europe, Includes 27 to 29
-
28710000923 Headlamp HarnessHeadlamp Harness
-
29710000871 Bulb, 12V 35/35WBulb, 12V 35/35W
-
30710001203 Tail Light Housing Ass'y. Includes 30 to 32Tail Light Housing Ass'y. Includes 30 to 32
-
30710001204 Tail Light Housing Ass'y. Europe, Includes 30 to 32Tail Light Housing Ass'y. Europe, Includes 30 to 32
-
31410504100 Tail Light BulbTail Light Bulb
-
32515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
33710001103 Voltage Regulator. STDVoltage Regulator. STD
-
33710001191 Voltage Regulator. XT, XTP, XMR, LTDVoltage Regulator. XT, XTP, XMR, LTD
-
34a710001262 Rectifier Support. STDRectifier Support. STD
-
34b710001572 Rectifier Support. XT, XTP, XMR, LTDRectifier Support. XT, XTP, XMR, LTD
-
35210262580 Hex. Flanged Forming Screw M6 X 25Hex. Flanged Forming Screw M6 X 25
-
36207661644 Hex. Flanged Screw M6 X 16. XT, XTP, XMR, LTDHex. Flanged Screw M6 X 16. XT, XTP, XMR, LTD
-
37710002176 Fuse SupportFuse Support
-
38390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
39278002148 Diagnostic Connector CapDiagnostic Connector Cap
-
40710001248 Outlet DCOutlet DC
