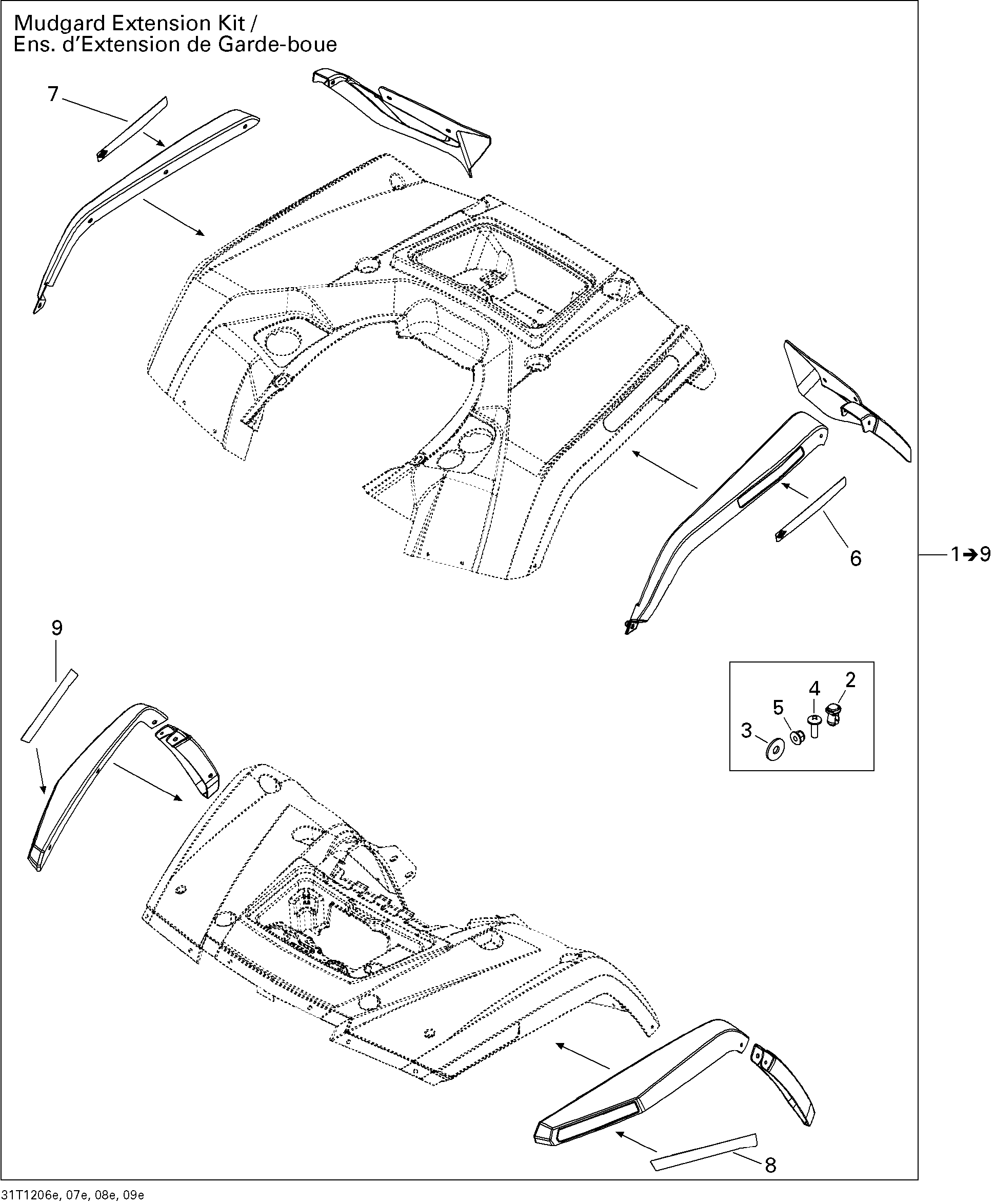

09- Body And Accessories 5, Mudguard для BRP Outlander MAX 800REFI STD, XT & XT-P - 2012
-
№АртикулНазвание
-
1715000533 Mudguard Extension Kit. XTMudguard Extension Kit. XT
-
2293150089 Tuflok Plastic Rivet. XTTuflok Plastic Rivet. XT
-
3234082430 Flat Washer M8. XTFlat Washer M8. XT
-
4211000123 Phillips Screw M6 X 20. XTPhillips Screw M6 X 20. XT
-
5704901429 LH Rear Lateral Reflector. XTLH Rear Lateral Reflector. XT
-
6233261434 Flanged Elastic Nut M6. XTFlanged Elastic Nut M6. XT
-
7704901430 RH Rear Lateral Reflector. XTRH Rear Lateral Reflector. XT
-
8704901431 LH Front Lateral Reflector. XTLH Front Lateral Reflector. XT
-
9704901432 RH Front Lateral Reflector. XTRH Front Lateral Reflector. XT
