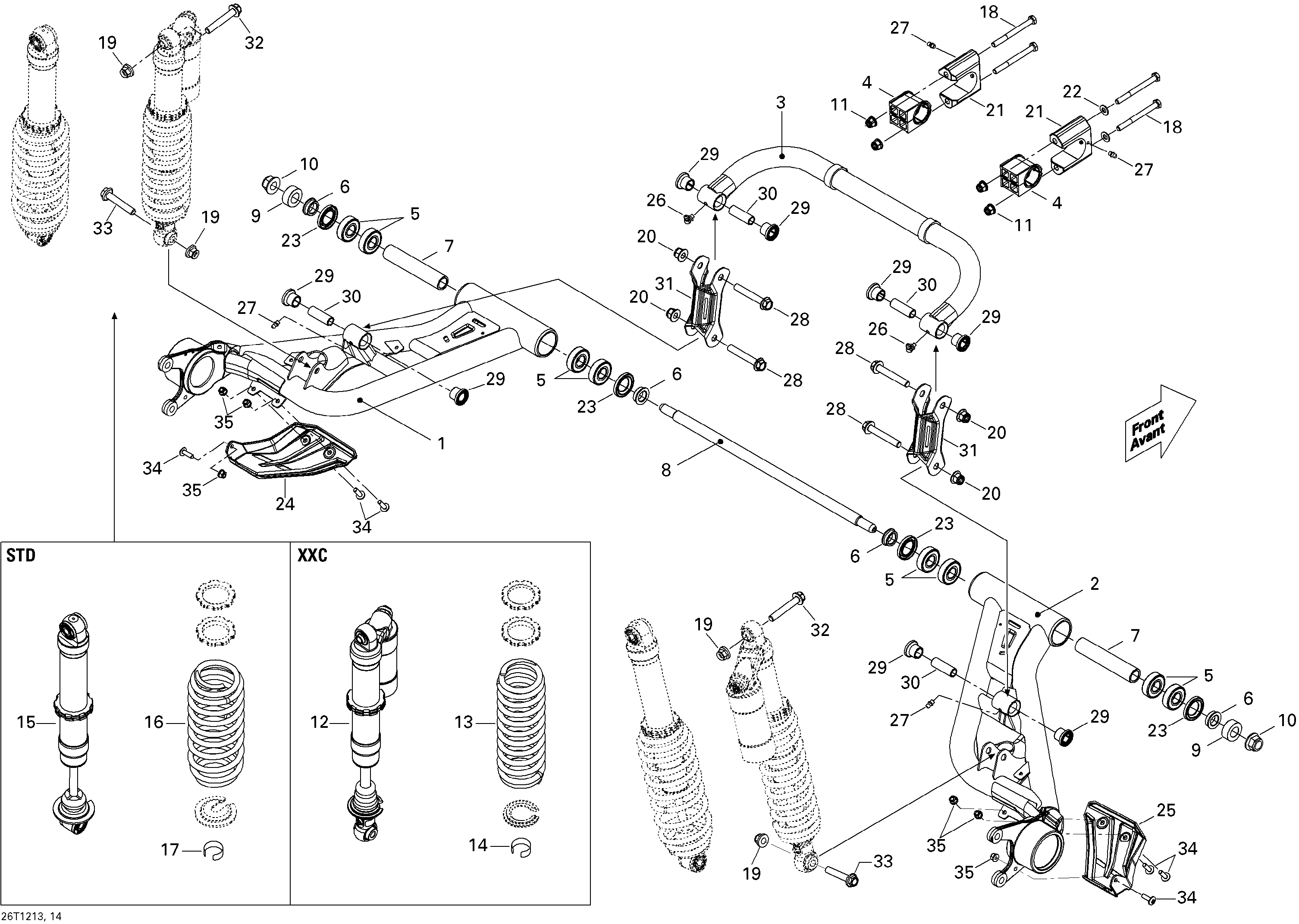

08- Rear Suspension для BRP Renegade STD, XXC, 800R EFI - 2012
-
№АртикулНазвание
-
1706000722 LH Swing Arm, Black. STDLH Swing Arm, Black. STD
-
1706000877 LH Swing Arm, Yellow. XXCLH Swing Arm, Yellow. XXC
-
2706000723 RH Swing Arm, Black. STDRH Swing Arm, Black. STD
-
2706000878 RH Swing Arm, Yellow. XXCRH Swing Arm, Yellow. XXC
-
3706000988 SwaybarSwaybar
-
4706001098 CushionCushion
-
5706000826 Ball BearingBall Bearing
-
6706001225 SpacerSpacer
-
7706000828 SpacerSpacer
-
8706001023 Axial PivotAxial Pivot
-
9250200112 Flat Washer M17Flat Washer M17
-
10233271416 Hex. Elastic Flanged Nut M14Hex. Elastic Flanged Nut M14
-
11233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
12706000868 Rear Shock. XXCRear Shock. XXC
-
13706000950 Yellow Spring. XXCYellow Spring. XXC
-
14706001084 Fox Decal - 0.046M. XXCFox Decal - 0.046M. XXC
-
15706000864 Rear Shock. STDRear Shock. STD
-
16706000955 Yellow Spring. STDYellow Spring. STD
-
17706001084 Fox Decal - 0.046M. STDFox Decal - 0.046M. STD
-
18207088587 Hex,. Screw M8 X 85Hex,. Screw M8 X 85
-
19233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
20233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
21706001099 Bushing HolderBushing Holder
-
22234081430 Flat Washer M8Flat Washer M8
-
23293200132 SealSeal
-
24706001009 LH ProtectorLH Protector
-
25706001010 RH ProtectorRH Protector
-
26293550056 Grease Fitting 90°Grease Fitting 90°
-
27250000315 Grease FittingGrease Fitting
-
28207606536 Hex Flange Screw M10 X 65Hex Flange Screw M10 X 65
-
29703500875 Bushing Kit. Includes 30Bushing Kit. Includes 30
-
30703500875 Bushing Kit. Includes 29Bushing Kit. Includes 29
-
31706001020 Swaybar LinkageSwaybar Linkage
-
32207606046 Flanged Hex. Screw M10 X 60Flanged Hex. Screw M10 X 60
-
33207605546 Flanged Hex. Screw M10 X 55Flanged Hex. Screw M10 X 55
-
34250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
35233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
