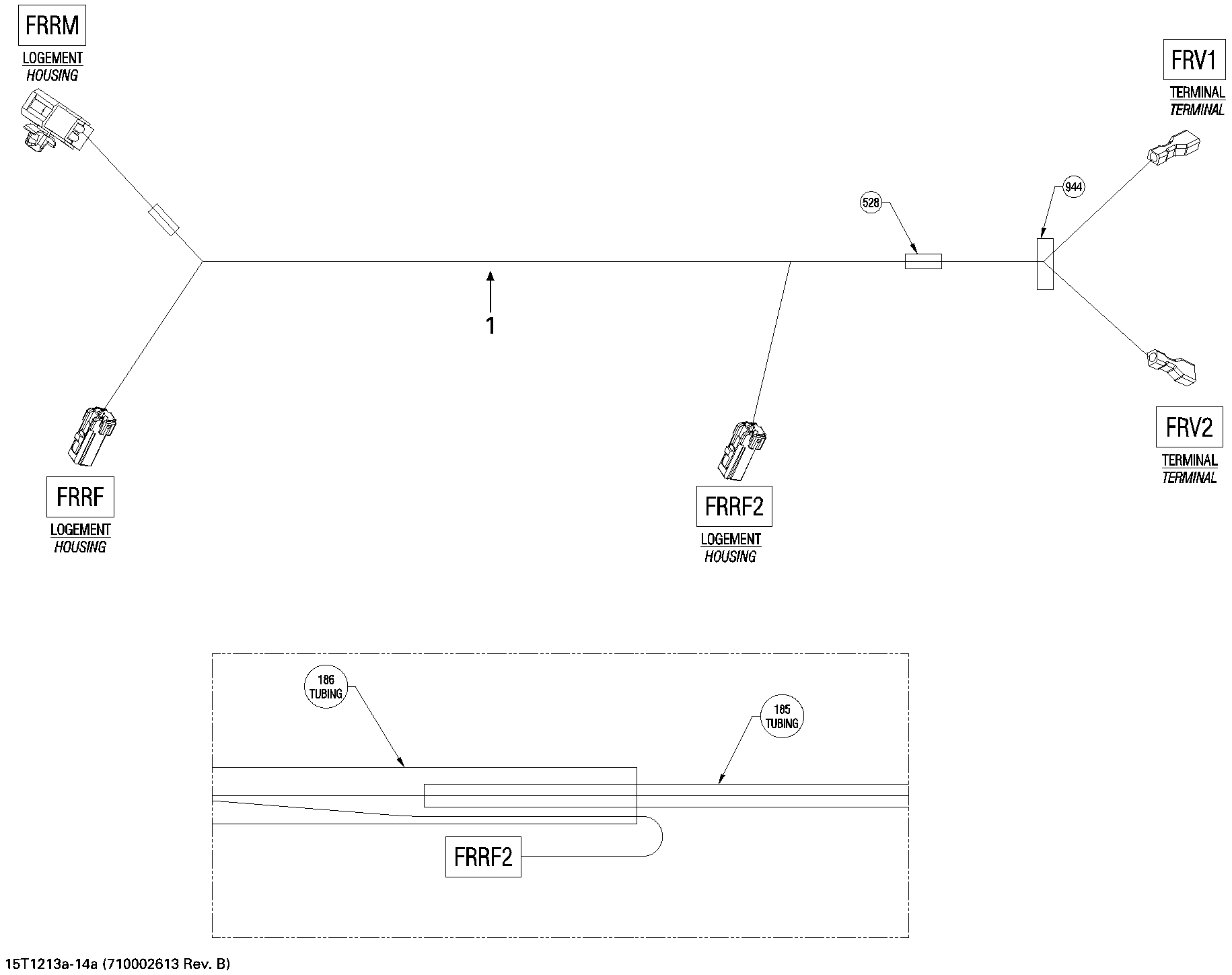

10- Electrical Harness Brake для BRP Renegade STD, XXC, 800R EFI - 2012
-
№АртикулНазвание
-
1710002613 Brake Harness. Includes 1 to FRV2Brake Harness. Includes 1 to FRV2
-
186515175332 Vinyl Tubing, Low TemperatureVinyl Tubing, Low Temperature
-
944710001350 CapCap
-
FRRF515175231 Female TerminalFemale Terminal
-
FRRF515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
FRRF293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
FRRF2515175231 Female TerminalFemale Terminal
-
FRRF2515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
FRRF2293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
FRRM515175232 Male TerminalMale Terminal
-
FRRM710000667 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
FRV1710000082 Female TerminalFemale Terminal
-
FRV1293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
FRV2710000082 Female TerminalFemale Terminal
-
FRV2293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
