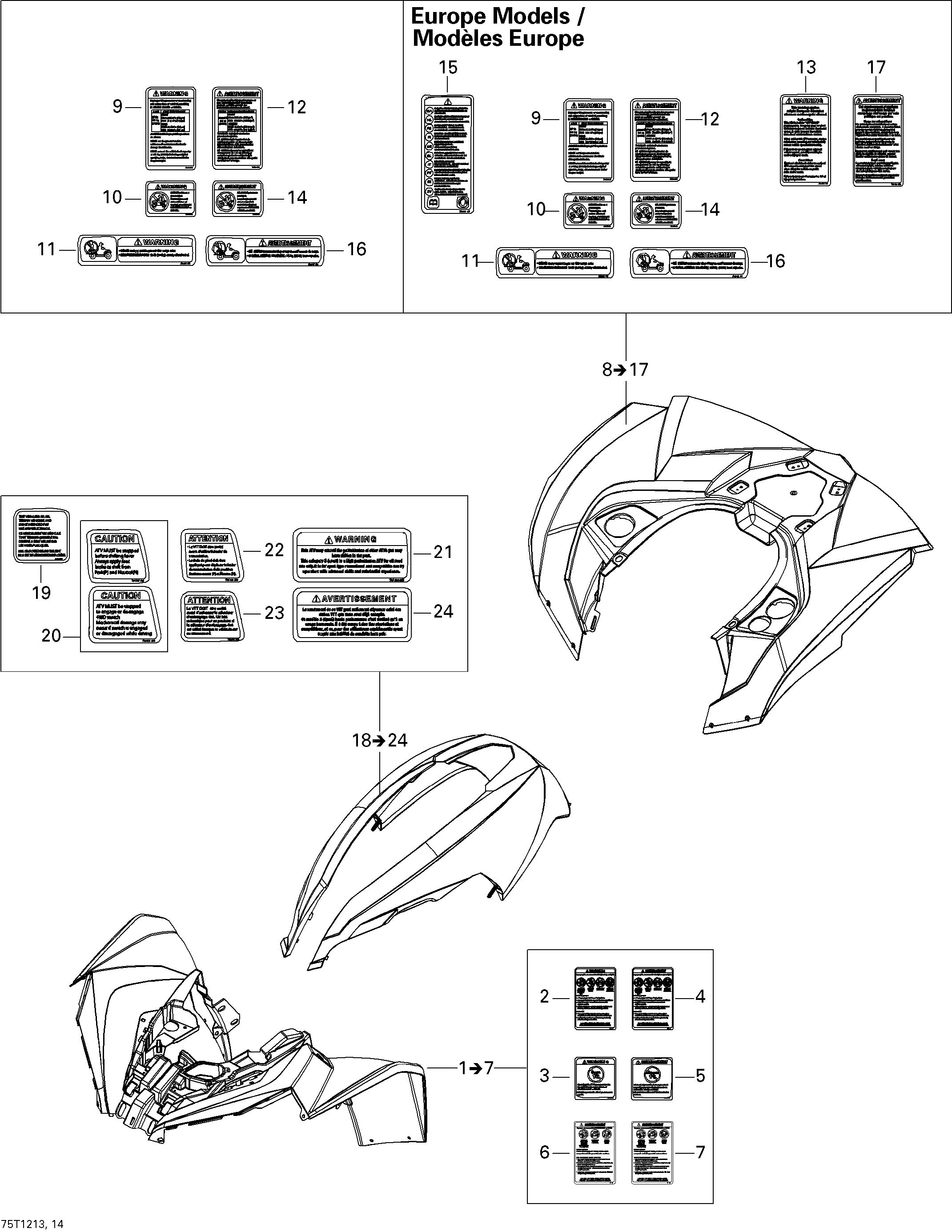

09- Fender And Central Panel Kit для BRP Renegade STD, XXC, 800R EFI - 2012
-
№АртикулНазвание
-
1715000737 Front Fender Kit, Yellow. Includes 1 to 7, STDFront Fender Kit, Yellow. Includes 1 to 7, STD
-
1715000742 Front Fender Kit, Black. Includes 1 to 7, XXCFront Fender Kit, Black. Includes 1 to 7, XXC
-
2704901878 Warning Decal, Death And InjuriesWarning Decal, Death And Injuries
-
3704900011 Warning Decal, Under 16 Years OldWarning Decal, Under 16 Years Old
-
4704900002 Warning Decal, Death And InjuriesWarning Decal, Death And Injuries
-
4704900005 Warning Decal, PassengerWarning Decal, Passenger
-
5704900012 Warning Decal, Under 16 Years OldWarning Decal, Under 16 Years Old
-
6704901875 Warning Decal, Death And Injuries. EuropeWarning Decal, Death And Injuries. Europe
-
7704901441 Warning Decal, Death And Injuries. EuropeWarning Decal, Death And Injuries. Europe
-
8715000499 Rear Fender Kit, Black. Includes 8 to 17, XXCRear Fender Kit, Black. Includes 8 to 17, XXC
-
8715000760 Rear Fender Kit, Yellow. Includes 8 to 17, STDRear Fender Kit, Yellow. Includes 8 to 17, STD
-
11704901333 Warning Decal, LoadWarning Decal, Load
-
12704902396 Warning Decal, Tire PressureWarning Decal, Tire Pressure
-
13704901444 Warning Decal, Public Roads UseWarning Decal, Public Roads Use
-
14704900006 Warning Decal, Passenger, FrenchWarning Decal, Passenger, French
-
15704901177 Warning Decal, MultilingualWarning Decal, Multilingual
-
16704901334 Warning Decal, LoadWarning Decal, Load
-
17704901158 Warning Decal, Public Roads UseWarning Decal, Public Roads Use
-
18715001495 Central Pannel Kit, Yellow. Includes 18 to 24, EuropeCentral Pannel Kit, Yellow. Includes 18 to 24, Europe
-
18715001493 Central Pannel Kit, Yellow. Includes 18 to 24Central Pannel Kit, Yellow. Includes 18 to 24
-
19704901438 Transport Canada LabelTransport Canada Label
-
20704901308 Caution Decal, Lever And 4wd SwitchCaution Decal, Lever And 4wd Switch
-
21704900089 Warning Decal, PerformanceWarning Decal, Performance
-
22704901330 Caution Decal, Shifting LeverCaution Decal, Shifting Lever
-
23704901332 Caution Decal, 4wd SwitchCaution Decal, 4wd Switch
-
24704900105 Warning Decal,, PerformanceWarning Decal,, Performance
