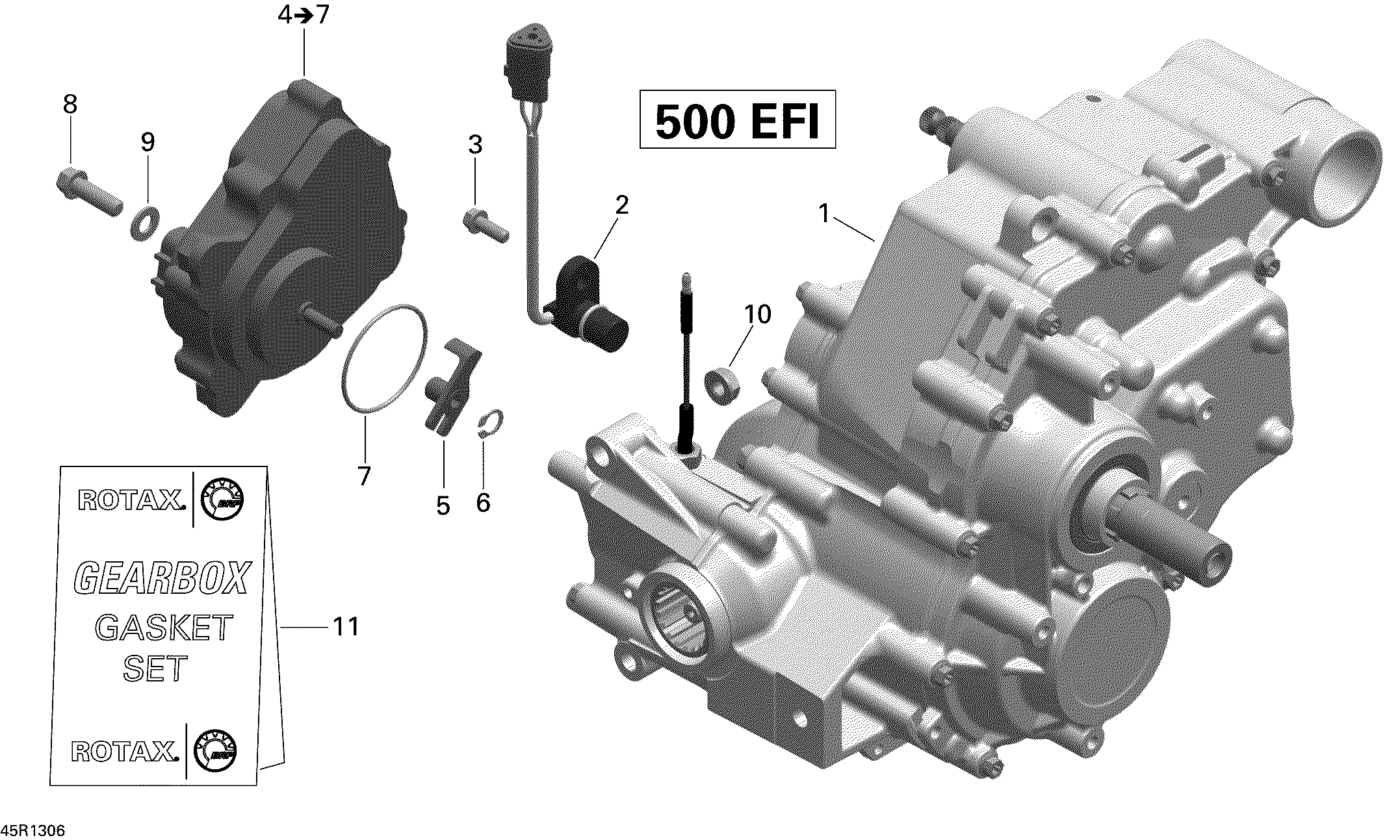

01- Gear Box Assy And 4X4 Actuator для BRP Outlander 500EFI STD, DPS & XT - 2013
-
№АртикулНазвание
-
1420684825 Gear BoxGear Box
-
2420265626 Speed SensorSpeed Sensor
-
3420641048 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
4415129174 Actuator Ass'y. Includes 4 to 7Actuator Ass'y. Includes 4 to 7
-
5415129175 Shifting ForkShifting Fork
-
6415129176 CirclipCirclip
-
7293300117 O-RingO-Ring
-
8420440372 Flanged Torx Screw M8 X 25Flanged Torx Screw M8 X 25
-
9420250311 Flat Washer 8.4 mmFlat Washer 8.4 mm
-
10420842616 Hex. Nut M8Hex. Nut M8
-
11420684135 Gasket Set, GearboxGasket Set, Gearbox
