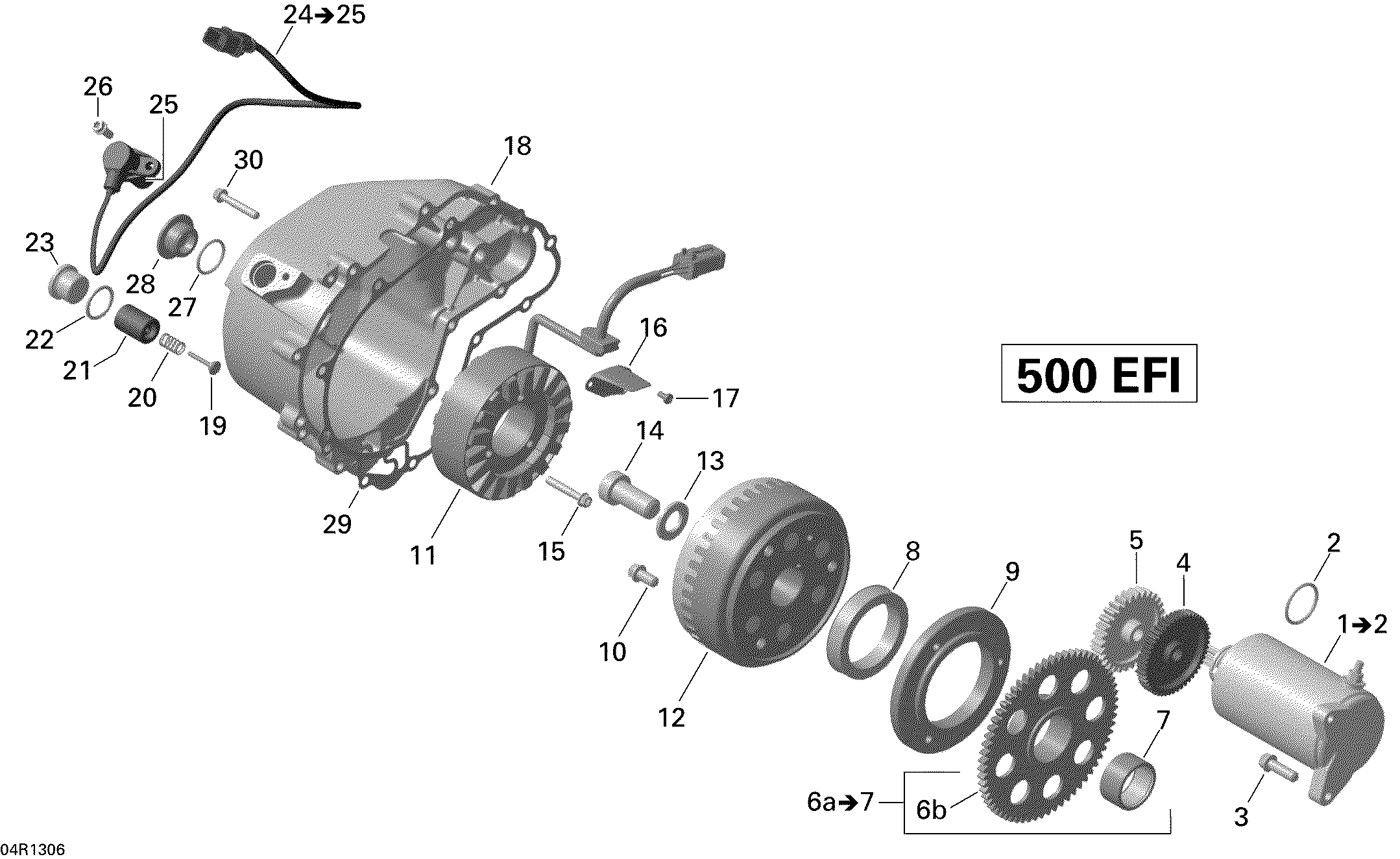

03- Magneto And Electric Starter Outlander для BRP Outlander 500EFI STD, DPS & XT - 2013
-
№АртикулНазвание
-
1420684560 Starter Ass'y. Includes 1 to 2Starter Ass'y. Includes 1 to 2
-
2420250140 O-RingO-Ring
-
3420440372 Flanged Torx Screw M8 X 25Flanged Torx Screw M8 X 25
-
4420634741 Double GearDouble Gear
-
5420634605 Gear, 30 TeethGear, 30 Teeth
-
6a420434235 Free Wheel Gear, 64 Teeth. Includes 6a to 7Free Wheel Gear, 64 Teeth. Includes 6a to 7
-
8420659112 Sprag ClutchSprag Clutch
-
9420659261 Sprag Clutch HousingSprag Clutch Housing
-
10420440852 Flanged Torx Screw M8 X 16Flanged Torx Screw M8 X 16
-
11420296907 Stator Plate. STD North AmericaStator Plate. STD North America
-
11420296907 Stator Plate. STD InternationalStator Plate. STD International
-
11420685632 Stator Plate. DPS North AmericaStator Plate. DPS North America
-
11420685632 Stator Plate. DPS InternationalStator Plate. DPS International
-
11420685632 Stator Plate. DPS EuropeStator Plate. DPS Europe
-
11420685632 Stator Plate. XT North AmericaStator Plate. XT North America
-
12420296906 Flywheel. STD North AmericaFlywheel. STD North America
-
12420296906 Flywheel. STD InternationalFlywheel. STD International
-
12420685647 Flywheel. DPS North AmericaFlywheel. DPS North America
-
12420685647 Flywheel. DPS InternationalFlywheel. DPS International
-
12420685647 Flywheel. DPS EuropeFlywheel. DPS Europe
-
12420685647 Flywheel. XT North AmericaFlywheel. XT North America
-
13420627270 ShimShim
-
14420241545 Socket Head Screw M16 X 35Socket Head Screw M16 X 35
-
15420641258 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
16420251880 Cable Inner CoverCable Inner Cover
-
17420240195 Tapping Screw M4 X 8Tapping Screw M4 X 8
-
18420611132 CoverCover
-
19420656370 Pressure Relief ValvePressure Relief Valve
-
20420939480 Compression SpringCompression Spring
-
21420256486 Housing ValveHousing Valve
-
22420650465 Gasket RingGasket Ring
-
23420640270 Screw PlugScrew Plug
-
24420966570 Crankshaft Position Sensor Ass'yCrankshaft Position Sensor Ass'y
-
25420431580 O-RingO-Ring
-
26420641048 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
27420430782 O-RingO-Ring
-
28420241630 Screw PlugScrew Plug
-
29420651200 GasketGasket
-
30420641258 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
