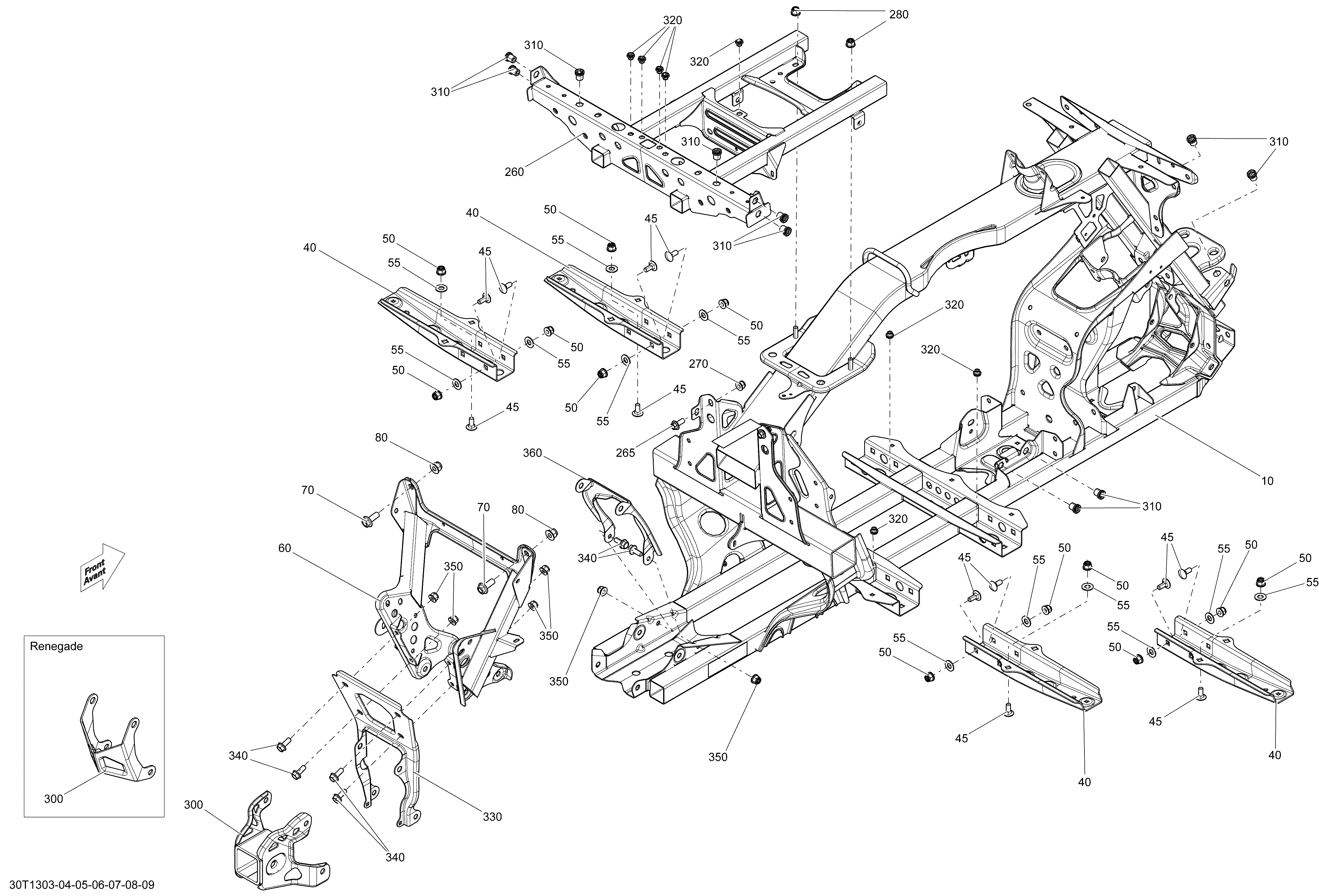

09- Frame для BRP Outlander 500EFI STD, DPS & XT - 2013
-
№АртикулНазвание
-
10705203139 Frame, Black. OutlanderFrame, Black. Outlander
-
40705202021 Footrest SupportFootrest Support
-
45207782044 Carriage Bolt, M8 X 20Carriage Bolt, M8 X 20
-
50233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
55234001410 Flat Washer 10 mmFlat Washer 10 mm
-
60705201907 Welded Rear SupportWelded Rear Support
-
70207602546 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
80233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
260705202291 Welded Extension, BlackWelded Extension, Black
-
265207602546 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
270233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
280233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
300715001329 Welded Hitch, Black. OutlanderWelded Hitch, Black. Outlander
-
310293450307 InsertInsert
-
320293450232 Insert. OutlanderInsert. Outlander
-
330705203301 Rear SupportRear Support
-
340207682046 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
350233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
360705202900 Front LinkFront Link
