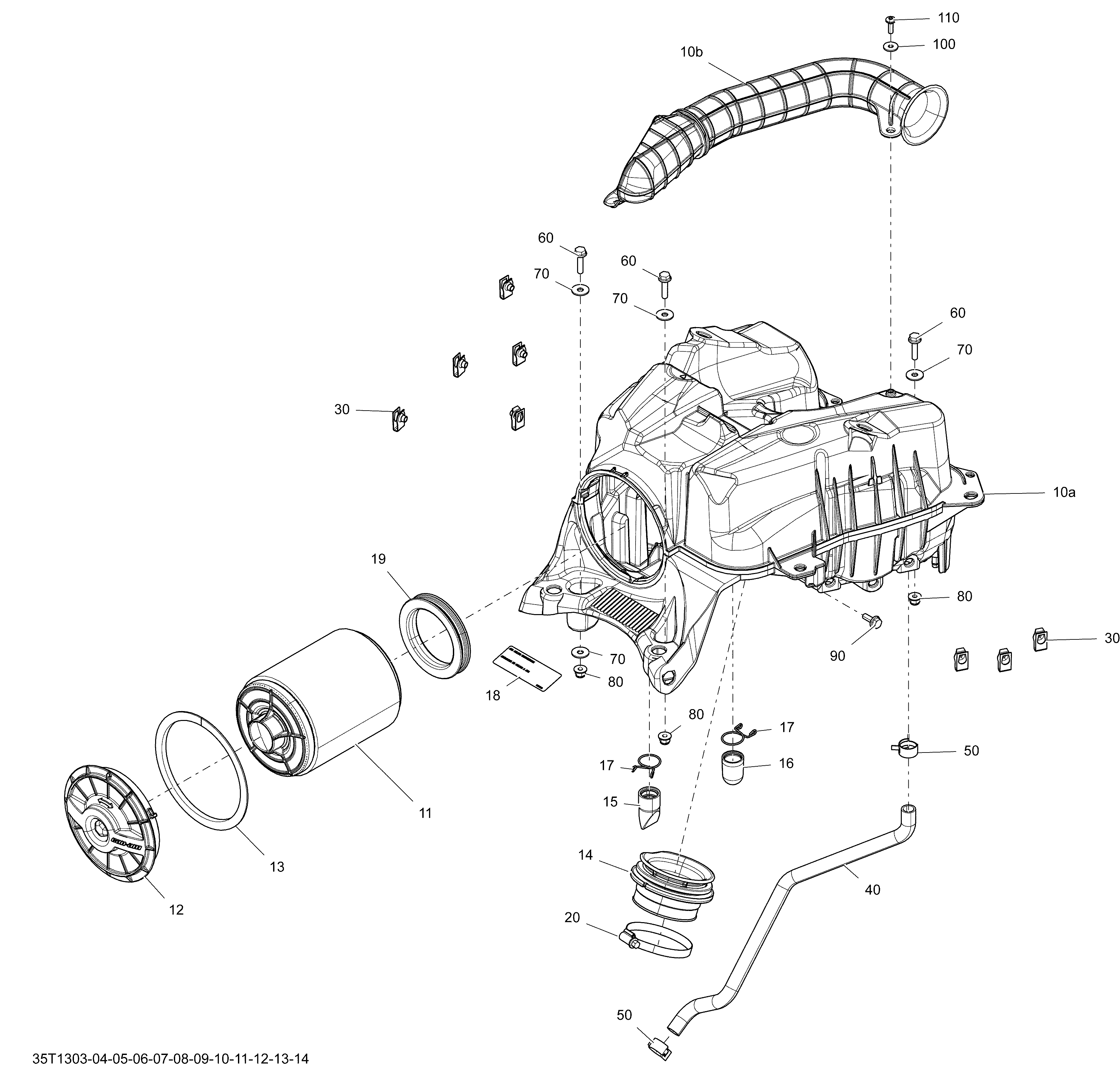

02- Air Intake Silencer для BRP Outlander 650EFI STD, DPS & XT - 2013
-
№АртикулНазвание
-
10a707800531 Intake SilencerIntake Silencer
-
10b707800375 Air Intake HoseAir Intake Hose
-
11707800371 Air FilterAir Filter
-
12707800518 Intake Silencer CapIntake Silencer Cap
-
13293300165 GasketGasket
-
14707800333 Intake AdaptorIntake Adaptor
-
15707800404 Drain TubeDrain Tube
-
16707800080 Drain TubeDrain Tube
-
17707800278 Retainer ClipRetainer Clip
-
18707800373 Decal, Air Filter MaintenanceDecal, Air Filter Maintenance
-
19707800470 Air Filter AdaptorAir Filter Adaptor
-
20293650091 Norma ClampNorma Clamp
-
30250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
40707800453 Vent HoseVent Hose
-
50293650110 Norma ClampNorma Clamp
-
60207662534 Hex. Flanged ScrewHex. Flanged Screw
-
70391302000 Flat WasherFlat Washer
-
80233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
90207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
100391301600 WasherWasher
-
110250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
