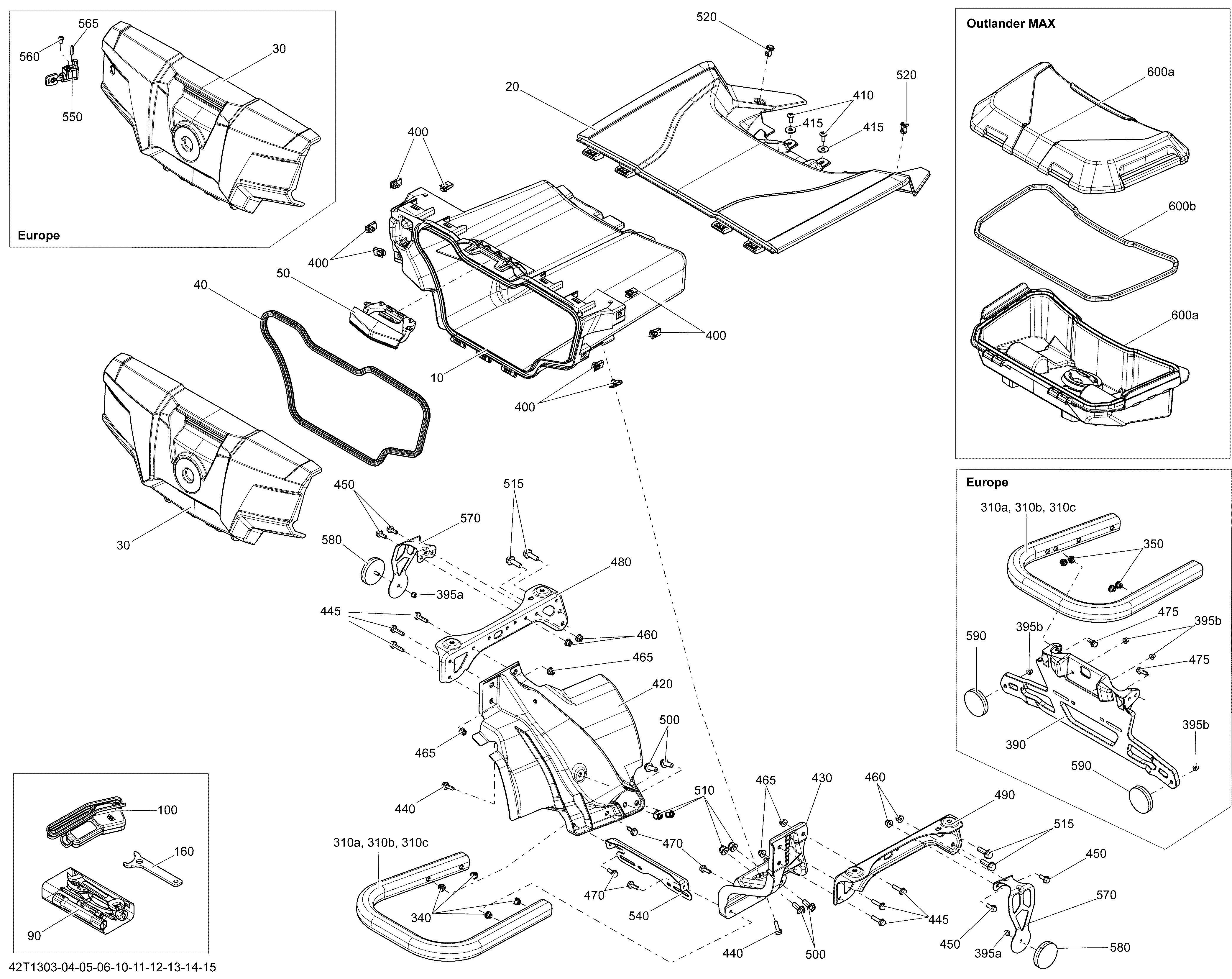

09- Rear Cargo Box для BRP Outlander 650EFI STD, DPS & XT - 2013
-
№АртикулНазвание
-
10708300674 Rear Storage BoxRear Storage Box
-
20708300848 Rear Storage CoverRear Storage Cover
-
30708300150 Rear PanelRear Panel
-
30708300511 Rear Panel. EuropeRear Panel. Europe
-
40293250275 Neoprene SealNeoprene Seal
-
50708200272 HandleHandle
-
90704700148 Tool KitTool Kit
-
100710002270 Remote Control. XT ModelsRemote Control. XT Models
-
160529000035 Adjustement WrenchAdjustement Wrench
-
310a715001564 Rear Bumper. Includes 310a to 310cRear Bumper. Includes 310a to 310c
-
310a715001566 Rear Bumper. Europe, Includes 310a to 310cRear Bumper. Europe, Includes 310a to 310c
-
310b704902777 Warning Decal, Luggage Rack. English VersionWarning Decal, Luggage Rack. English Version
-
310c704902778 Warning Decal, Luggage Rack. French VersionWarning Decal, Luggage Rack. French Version
-
340293450274 InsertInsert
-
350293450274 Insert. EuropeInsert. Europe
-
390708300434 Plate Support. EuropePlate Support. Europe
-
395a233251414 Hex. Flanged Elastic Nut M5. Except EuropeHex. Flanged Elastic Nut M5. Except Europe
-
395b233251414 Hex. Flanged Elastic Nut M5. EuropeHex. Flanged Elastic Nut M5. Europe
-
400250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
410250000446 Torx Screw Scotch Grip, M6 X 20Torx Screw Scotch Grip, M6 X 20
-
420705006997 LH Cargo SupportLH Cargo Support
-
430705006998 RH Cargo SupportRH Cargo Support
-
440207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
445207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
450207661644 Hex. Flanged Screw M6 X 16. Except EuropeHex. Flanged Screw M6 X 16. Except Europe
-
460233261414 Hex. Flanged Elastic Nut M6. Except EuropeHex. Flanged Elastic Nut M6. Except Europe
-
465233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
470207561646 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
475207661634 Hex. Flanged Screw M6 X 16. EuropeHex. Flanged Screw M6 X 16. Europe
-
480705004563 LH SupportLH Support
-
490705004564 RH SupportRH Support
-
500207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
510233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
515207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
520293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
540705004806 Plate SupportPlate Support
-
550707000666 Lock. EuropeLock. Europe
-
560205951046 Socket Head Screw M5 X 10. EuropeSocket Head Screw M5 X 10. Europe
-
565206252044 Socket Set Screw M5 X 20. EuropeSocket Set Screw M5 X 20. Europe
-
570705202576 reflector Support. Except Europereflector Support. Except Europe
-
580705002408 Reflector, Red. Except EuropeReflector, Red. Except Europe
-
590705002408 Reflector, Red. EuropeReflector, Red. Europe
