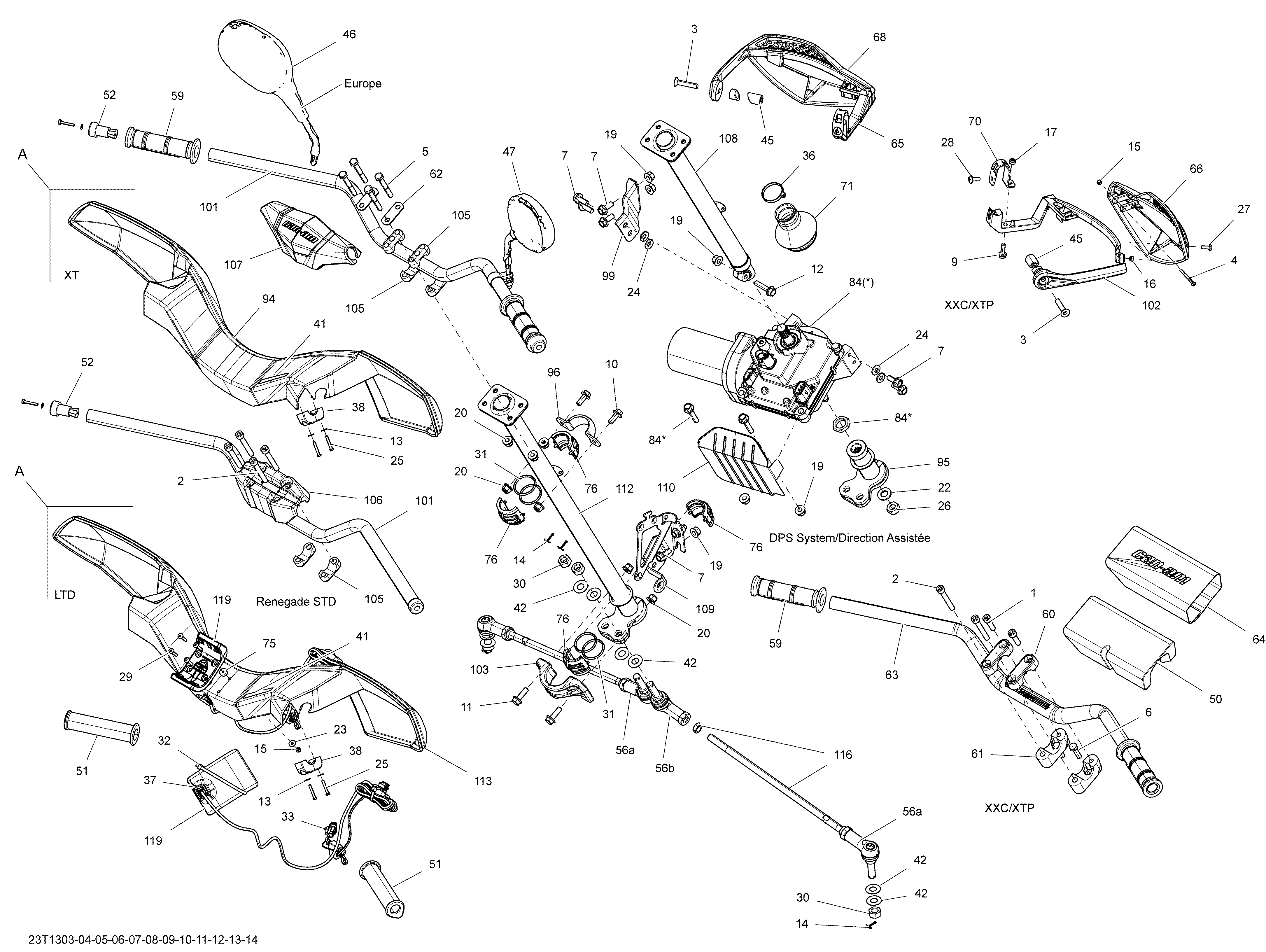

07- Steering для BRP Outlander 650EFI STD, DPS & XT - 2013

№

Артикул

Название
1

205083060 Socket Screw M8 X 30. XXC, XTP Model

Socket Screw M8 X 30. XXC, XTP Model

1 050 ₽
2

205086060 Socket Head Screw M8 X 60. XXC, XTP Model

Socket Head Screw M8 X 60. XXC, XTP Model

1 450 ₽
3

205384034 Socket Head Screw. XXC, XTP Model

Socket Head Screw. XXC, XTP Model

2 620 ₽
4

205444086 Socket Head Screw M4 X 40. XXC, XTP Model

Socket Head Screw M4 X 40. XXC, XTP Model

160 ₽
5

207086046 Hex. Screw M8 X 60

Hex. Screw M8 X 60

980 ₽
6

207183060 Hex. Screw M8 X 30. XXC, XTP Model

Hex. Screw M8 X 30. XXC, XTP Model

550 ₽
7

207582044 Hex. Flanged Screw M8 X 20, Scotch Grip

Hex. Flanged Screw M8 X 20, Scotch Grip

600 ₽
9

207662044 Hex. Flanged Screw M6 X 20. XXC, XTP Model

Hex. Flanged Screw M6 X 20. XXC, XTP Model

1 470 ₽
10

207682044 Hex. Flanged Screw M8 X 20

Hex. Flanged Screw M8 X 20

390 ₽
11

207682544 Hex. Flanged Screw M8 X 25

Hex. Flanged Screw M8 X 25

380 ₽
12

207683544 Hex. Flanged Screw M8 X 35

Hex. Flanged Screw M8 X 35

600 ₽
13

211200035 Flat Washer

Flat Washer

190 ₽
14

211400013 Cotter Pin

Cotter Pin

120 ₽
15

232541414 Elastic Stop Nut M4. XXC, XTP Model

Elastic Stop Nut M4. XXC, XTP Model

210 ₽
16

232551600 Hex. Elastic Nut M5. XXC, XTP Model

Hex. Elastic Nut M5. XXC, XTP Model

390 ₽
17

232561600 Hex. Elastic Stop Nut M6. XXC, XTP Model

Hex. Elastic Stop Nut M6. XXC, XTP Model

390 ₽
19

233081416 Hex. Flanged Nut M8

Hex. Flanged Nut M8

110 ₽
20

233281414 Hex. Flanged Elastic Nut M8

Hex. Flanged Elastic Nut M8

490 ₽
22

250200086 Flat Washer

Flat Washer

1 980 ₽
23

234042600 Flat Washer 4 mm, Stainless

Flat Washer 4 mm, Stainless

390 ₽
24

234281474 Conical Spring Washer M8

Conical Spring Washer M8

540 ₽
25

241142560 Hex. Flanged Screw K40 X 25

Hex. Flanged Screw K40 X 25

930 ₽
26

250000047 Hex. Flanged Elastic Nut M12

Hex. Flanged Elastic Nut M12

670 ₽
27

250000145 Torx Screw M5 X 14. XXC, XTP Model

Torx Screw M5 X 14. XXC, XTP Model

140 ₽
28

250000223 Torx Screw M6 X 16. XXC, XTP Model

Torx Screw M6 X 16. XXC, XTP Model

200 ₽
29

250000405 Torx Screw M4 X 20

Torx Screw M4 X 20

190 ₽
30

250100099 Nut M12

Nut M12

740 ₽
31

293300068 O-Ring

O-Ring

2 260 ₽
32

293750008 Tie-Rap 350 mm

Tie-Rap 350 mm

370 ₽
33

293750009 Tie-Rap 173 mm

Tie-Rap 173 mm

100 ₽
36

414115200 Tie-Rap 180 mm

Tie-Rap 180 mm

60 ₽
37

414115200 Tie-Rap 180 mm

Tie-Rap 180 mm

60 ₽
38

517303264 U-Clamp

U-Clamp

3 890 ₽
41

704902966 DPS Decal

DPS Decal

1 040 ₽
42

706200281 Hardened Washer

Hardened Washer

0 ₽
45

709400162 Bracket, Large. XXC, XTP Model

Bracket, Large. XXC, XTP Model

5 670 ₽
46

709400406 LH Mirror. Europe

LH Mirror. Europe

11 060 ₽
47

709400407 RH Mirror. Europe

RH Mirror. Europe

11 210 ₽
50

709400422 Foam. XXC, XTP Model

Foam. XXC, XTP Model

4 220 ₽
51

709400443 Handle Grip, Grey. LTD Model

Handle Grip, Grey. LTD Model

4 620 ₽
52

709400449 End Piece

End Piece

2 480 ₽
59

709400493 Handle Grip

Handle Grip

3 880 ₽
60

709400496 Support. XXC, XTP Model

Support. XXC, XTP Model

6 690 ₽
61

709400497 Steering Support. XXC, XTP Model

Steering Support. XXC, XTP Model

7 700 ₽
62

709400509 Stiffner

Stiffner

1 590 ₽
63

709400513 Aluminum- Handle Bar. XXC, XTP Model

Aluminum- Handle Bar. XXC, XTP Model

18 180 ₽
64

709400519 Cover. XXC, XTP Model

Cover. XXC, XTP Model

2 640 ₽
65

715000545 Deflector Support Kit. XXC, XTP Model

Deflector Support Kit. XXC, XTP Model

0 ₽
66

709400530 RH Air Deflector. XXC, XTP Model

RH Air Deflector. XXC, XTP Model

3 280 ₽
68

709400531 LH Air Deflector. XXC, XTP Model

LH Air Deflector. XXC, XTP Model

3 280 ₽
70

715000545 Deflector Support Kit. XXC, XTP Model

Deflector Support Kit. XXC, XTP Model

0 ₽
71

709400674 Bellows

Bellows

4 970 ₽
75

709400781 Rubber Bumper. LTD Model

Rubber Bumper. LTD Model

380 ₽
76

709400783 Spherical Half Bushing

Spherical Half Bushing

3 630 ₽
84

709401182 Power Steering Ass'y

Power Steering Ass'y

90 740 ₽
94

709400822 Handle Bar Protector. XT Model

Handle Bar Protector. XT Model

8 020 ₽
95

703500785 Pitman Kit

Pitman Kit

12 540 ₽
96

709400827 Upper Column Attachment

Upper Column Attachment

360 ₽
99

709400848 Power Steering Module Bracket

Power Steering Module Bracket

1 420 ₽
101

709400877 Handle Bar, Black

Handle Bar, Black

0 ₽
102

715001378 RH Deflector Support. XXC, XTP Model

RH Deflector Support. XXC, XTP Model

34 550 ₽
103

709400912 Lower Column Attachment

Lower Column Attachment

0 ₽
105

709400919 Steering Support

Steering Support

6 690 ₽
106

709400920 Support

Support

3 820 ₽
107

709400939 Cover

Cover

7 350 ₽
108

709400703 Upper Main Tube

Upper Main Tube

4 910 ₽
109

709400994 RH Steering Bracket

RH Steering Bracket

2 280 ₽
110

709401005 Heat Deflector

Heat Deflector

1 820 ₽
112

709401008 Main Tube. STD Model

Main Tube. STD Model

48 480 ₽
113

709401013 Handle Bar PRO. LTD Model

Handle Bar PRO. LTD Model

9 990 ₽
116

703500783 Tie-Rod Ass'y

Tie-Rod Ass'y

7 090 ₽
119

710002545 GPS Support. LTD Model

GPS Support. LTD Model

18 050 ₽
56a

709400490 Ball Joint

Ball Joint

5 050 ₽
56b

709400486 Ball Joint, LH Threads

Ball Joint, LH Threads

3 390 ₽
A

703100352 Handle Guard Ass'y, XT. XT Model

Handle Guard Ass'y, XT. XT Model

33 990 ₽
A

703100357 Handle Guard Ass'y, LTD. LTD Model

Handle Guard Ass'y, LTD. LTD Model

31 850 ₽
