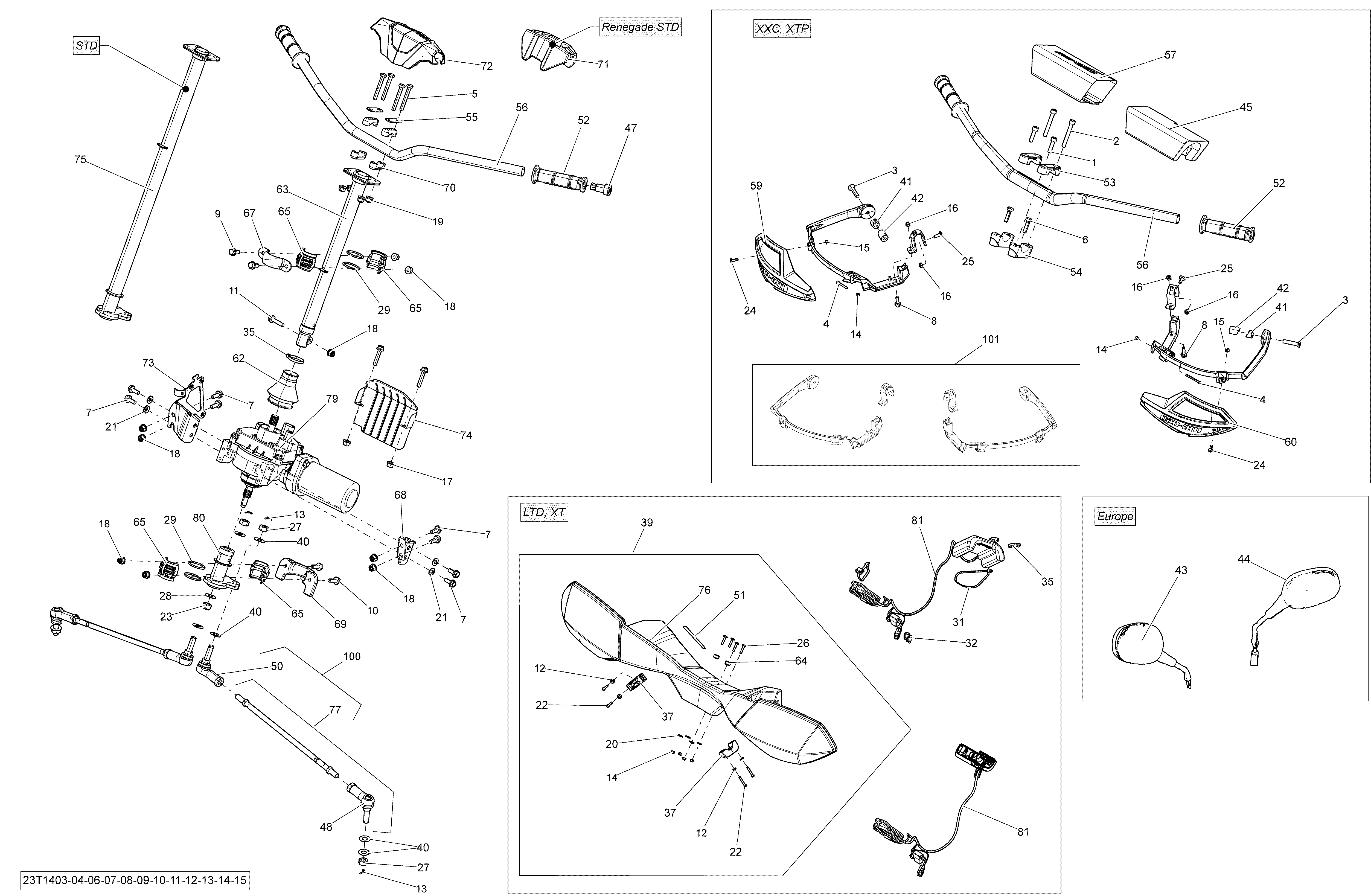

07- Steering для BRP Outlander MAX 1000EFI LTD - 2014
-
№АртикулНазвание
-
5207086046 Hex. Screw M8 X 60Hex. Screw M8 X 60
-
7207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
9207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
10207682544 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
12211200035 Flat WasherFlat Washer
-
13211400013 Cotter PinCotter Pin
-
14232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
17233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
18233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
19233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
20234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
21234281474 Conical Spring Washer M8Conical Spring Washer M8
-
22241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
-
23250000047 Hex. Flanged Elastic Nut M12Hex. Flanged Elastic Nut M12
-
26250000405 Torx Screw M4 X 20Torx Screw M4 X 20
-
27250100099 Nut M12Nut M12
-
28250200086 Flat WasherFlat Washer
-
29293300068 O-RingO-Ring
-
31293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
32293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
35414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
37517303264 U-ClampU-Clamp
-
39703100357 Handle Guard Ass'y, LTDHandle Guard Ass'y, LTD
-
40250200086 Flat WasherFlat Washer
-
43709400406 LH MirrorLH Mirror
-
44709400523 RH MirrorRH Mirror
-
47709400449 End PieceEnd Piece
-
48709400486 Ball Joint, LH ThreadsBall Joint, LH Threads
-
50709400490 Ball JointBall Joint
-
51704902966 DPS DecalDPS Decal
-
52709400493 Handle GripHandle Grip
-
55709400509 StiffnerStiffner
-
56709401240 Steering, BlackSteering, Black
-
62709400674 BellowsBellows
-
63709400703 Upper Main TubeUpper Main Tube
-
64709400781 Rubber BumperRubber Bumper
-
65709400783 Spherical Half BushingSpherical Half Bushing
-
67709400827 Upper Column AttachmentUpper Column Attachment
-
68709400848 Power Steering Module BracketPower Steering Module Bracket
-
69709400912 Lower Column AttachmentLower Column Attachment
-
70709400919 Steering SupportSteering Support
-
72709400939 CoverCover
-
73709400994 RH Steering BracketRH Steering Bracket
-
74709401005 Heat DeflectorHeat Deflector
-
76709400822 Handle Bar ProtectorHandle Bar Protector
-
77703500783 Tie-Rod Ass'yTie-Rod Ass'y
-
79709401182 Power Steering Ass'yPower Steering Ass'y
-
80709401320 Lower Steering Tube, BlackLower Steering Tube, Black
-
81710002545 GPS SupportGPS Support
-
100703500783 Tie-Rod Ass'yTie-Rod Ass'y
