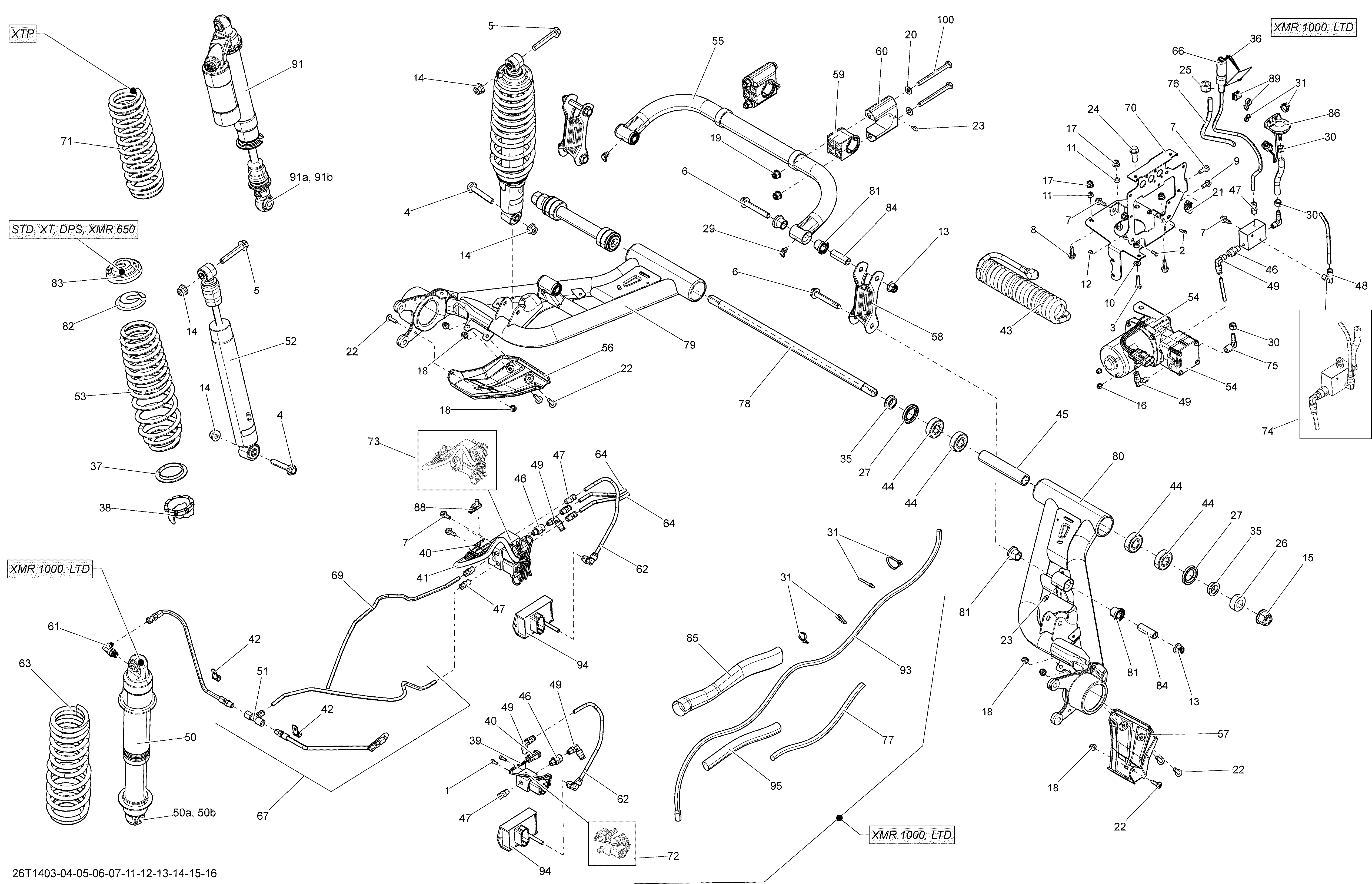

08- Rear Suspension для BRP Outlander MAX 1000EFI LTD - 2014
-
№АртикулНазвание
-
1205041284 Socket Head Screw M4 X 12Socket Head Screw M4 X 12
-
2207141244 Hex. Screw M4 X 12Hex. Screw M4 X 12
-
3207162544 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
4207605546 Flanged Hex. Screw M10 X 55Flanged Hex. Screw M10 X 55
-
5207606046 Flanged Hex. Screw M10 X 60Flanged Hex. Screw M10 X 60
-
6207606536 Hex Flange Screw M10 X 65Hex Flange Screw M10 X 65
-
7207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
8207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
9210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
10224061121 Flat WasherFlat Washer
-
11232061414 Hex. Nut M6Hex. Nut M6
-
12232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
13233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
14233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
15233211466 Hex. Flanged Elastic Nut M16Hex. Flanged Elastic Nut M16
-
16233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
17233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
18233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
19233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
20234081430 Flat Washer M8Flat Washer M8
-
21250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
22250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
23250000315 Grease FittingGrease Fitting
-
24250000562 Hex Flange Screw M10 X 25Hex Flange Screw M10 X 25
-
25250100124 Hex. Nut With Nylon 1/2'' X 20Hex. Nut With Nylon 1/2'' X 20
-
26250200112 Flat Washer M17Flat Washer M17
-
27293200132 SealSeal
-
29293550056 Grease Fitting 90°Grease Fitting 90°
-
30293650207 Clamp OetikerClamp Oetiker
-
31293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
35706001282 SpacerSpacer
-
36414811400 O-RingO-Ring
-
39515175232 Male TerminalMale Terminal
-
40515175654 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
42705600459 ClampClamp
-
43706000808 Auxiliary HoseAuxiliary Hose
-
44706000826 Ball BearingBall Bearing
-
45706000828 SpacerSpacer
-
46706000860 Check ValveCheck Valve
-
47706000869 ConnectorConnector
-
48706000872 Elbow 90°Elbow 90°
-
49706000928 Elbow 90°Elbow 90°
-
50706000930 Rear Shock. Includes 50a to 50bRear Shock. Includes 50a to 50b
-
50a715900210 Interior BushingInterior Bushing
-
50b715900209 O-Ring BushingO-Ring Bushing
-
51706000946 ''T'' Fitting''T'' Fitting
-
54706000964 Compressor Ass'yCompressor Ass'y
-
55706000988 SwaybarSwaybar
-
56706001009 LH ProtectorLH Protector
-
57706001010 RH ProtectorRH Protector
-
58706001020 Swaybar LinkageSwaybar Linkage
-
59706001098 CushionCushion
-
60706001099 Bushing HolderBushing Holder
-
61706001200 Elbow 90°Elbow 90°
-
62706001216 Hose Ass'yHose Ass'y
-
63706000836 Black Rear SpringBlack Rear Spring
-
66706001339 Inflater Ass'yInflater Ass'y
-
67706001341 Rear Shock Distributor Ass'yRear Shock Distributor Ass'y
-
70706001351 Compressor BracketCompressor Bracket
-
72706001367 Pressure Collector Ass'yPressure Collector Ass'y
-
74706001388 Hose Ass'yHose Ass'y
-
75706001405 Elbow 90°Elbow 90°
-
76504153074 Protector TubeProtector Tube
-
77504153074 Protector TubeProtector Tube
-
78706001664 Axial Pivot M16Axial Pivot M16
-
79706001543 Black LH Swing ArmBlack LH Swing Arm
-
80706001544 Black RH Swing ArmBlack RH Swing Arm
-
81703500875 Bushing Kit. Includes 84Bushing Kit. Includes 84
-
84703500875 Bushing Kit. Includes 81Bushing Kit. Includes 81
-
86710001825 Air Suspension SensorAir Suspension Sensor
-
89710002899 Clip Tie-RapClip Tie-Rap
-
93415080200 Hose, PolyurethaneHose, Polyurethane
-
94710003204 Calibrated ModuleCalibrated Module
-
100207088587 Hex,. Screw M8 X 85Hex,. Screw M8 X 85
