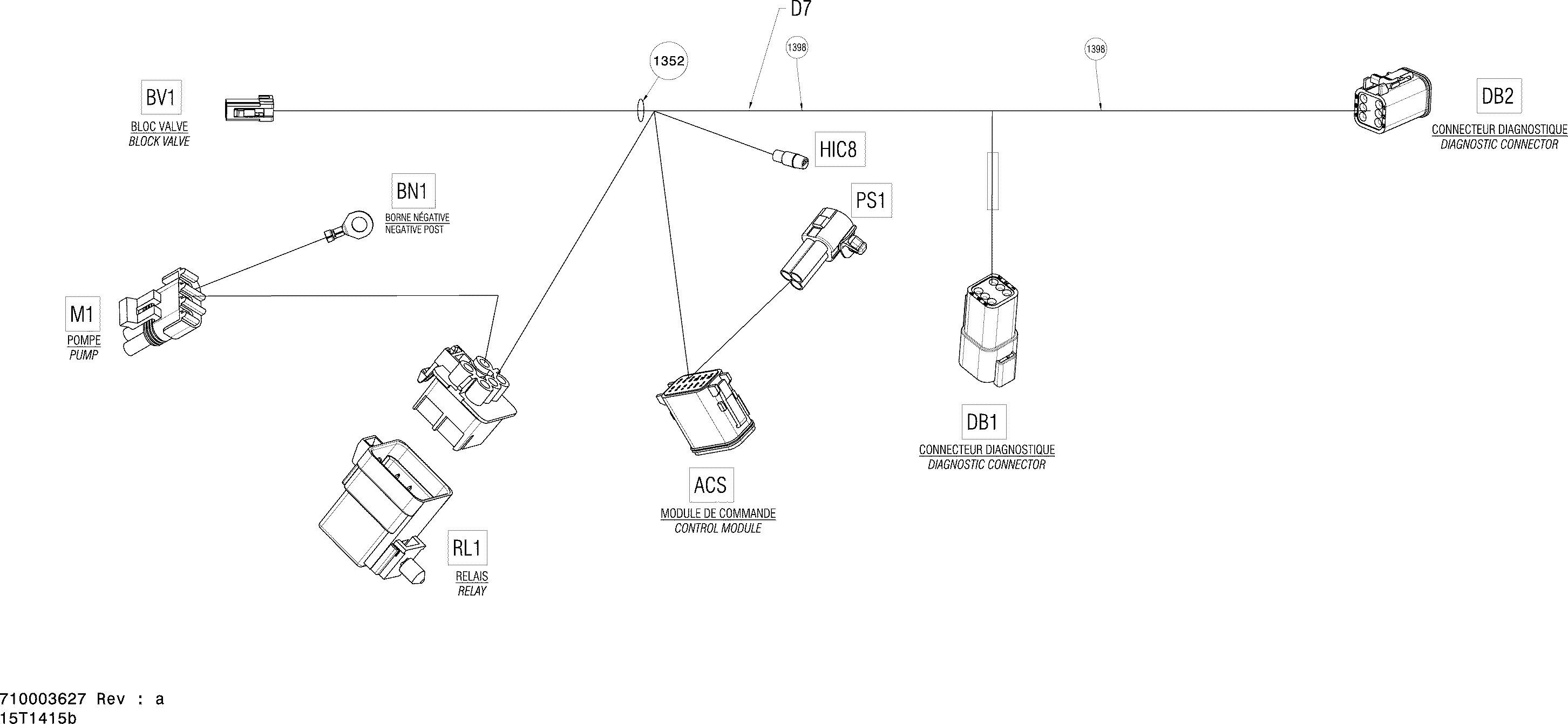

10- Electrical Harness Compressor для BRP Outlander MAX 1000EFI LTD - 2014
-
№АртикулНазвание
-
1710003627 Compressor HarnessCompressor Harness
-
ACS710003193 Male HousingMale Housing
-
ACS710003192 Male Wedge, 12 CircuitsMale Wedge, 12 Circuits
-
ACS293000052 Sealing CapSealing Cap
-
ACS278001665 Female TerminalFemale Terminal
-
ACS278001665 Female TerminalFemale Terminal
-
BN1278000992 Open BarrelOpen Barrel
-
BV1515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
BV1515175231 Female TerminalFemale Terminal
-
D7409012700 DiodeDiode
-
DB1710001539 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
DB1278000735 Female Lock, 6 CircuitsFemale Lock, 6 Circuits
-
DB1710001348 Male TerminalMale Terminal
-
DB2278002896 Housing, 6 CircuitsHousing, 6 Circuits
-
DB2515175678 Male Wedge, 6 CircuitsMale Wedge, 6 Circuits
-
HIC8278001008 Insulated SheathInsulated Sheath
-
HIC8278000230 Male TerminalMale Terminal
-
M1278000273 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
M1278000216 Wire SealWire Seal
-
M1278000218 Wire SealWire Seal
-
M1409007300 Female TerminalFemale Terminal
-
M1278000216 Wire SealWire Seal
-
M1278000218 Wire SealWire Seal
-
PS1710000722 ConnectorConnector
-
PS1710000402 Wire SealWire Seal
-
PS1409011300 Male TerminalMale Terminal
-
RL1710003001 ClipClip
-
RL1710002920 HousingHousing
-
RL1710002921 LockLock
-
RL1710002996 RelayRelay
-
RL1278001065 Wire SealWire Seal
-
RL1710003191 TerminalTerminal
-
1352710003168 Tie-RapTie-Rap
-
1398415129879 Corrugated TubeCorrugated Tube
