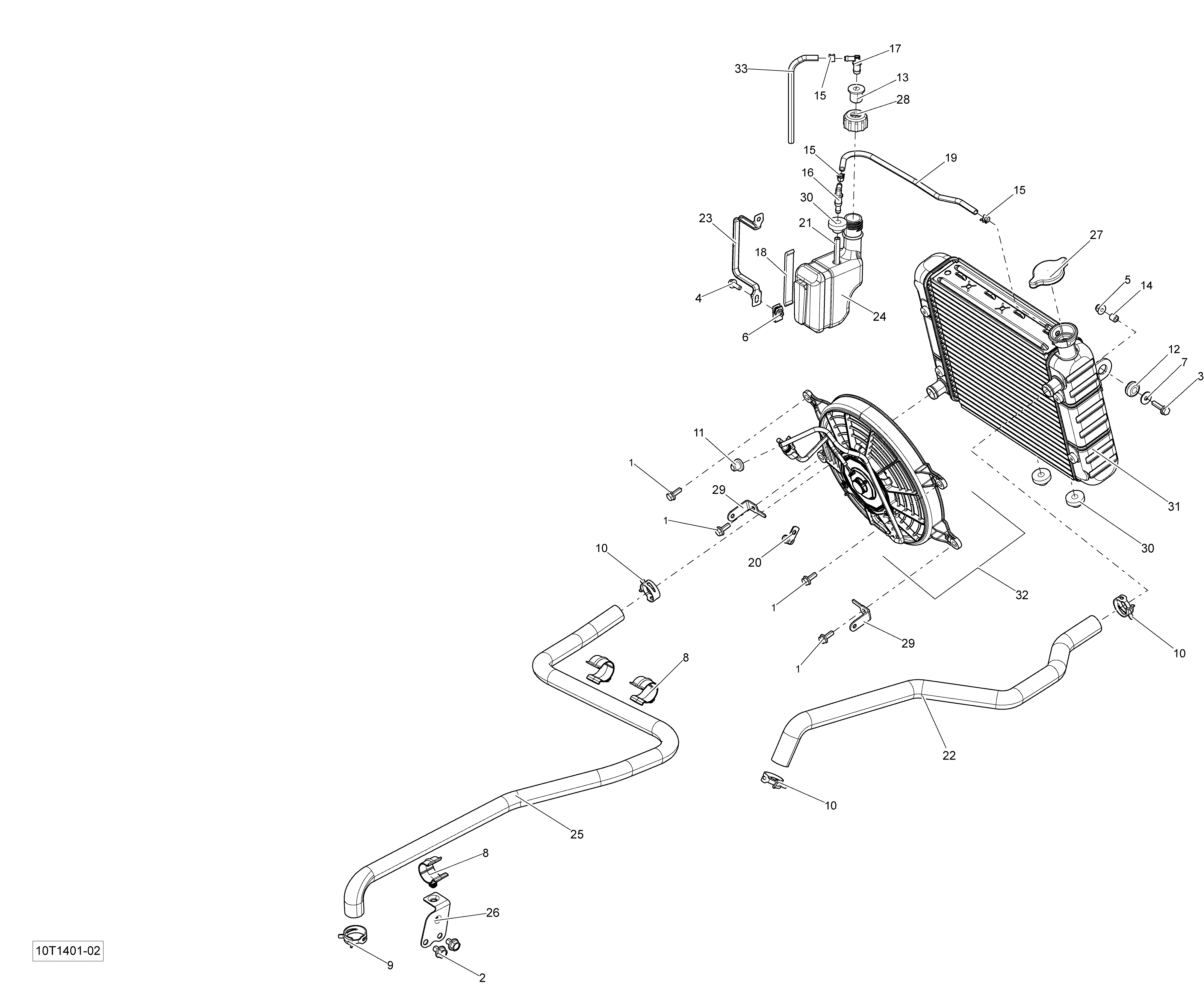

01- Cooling System для BRP Outlander Max 400 EFI, STD, XT - 2014
-
№АртикулНазвание
-
1207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
2207581244 Hex. Flanged Screw M8 X 12, Scotch GripHex. Flanged Screw M8 X 12, Scotch Grip
-
3207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
4210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
5233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
6250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
7250200082 Flat WasherFlat Washer
-
8275500526 RetainerRetainer
-
9293650108 Norma Spring ClampNorma Spring Clamp
-
10293650109 Norma Spring ClampNorma Spring Clamp
-
11293720029 GrommetGrommet
-
12293720053 GrommetGrommet
-
13293830136 GrommetGrommet
-
14293900105 BushingBushing
-
15414554800 Spring ClampSpring Clamp
-
16414580600 Elbow Male ConnectorElbow Male Connector
-
17414580700 Male ConnectorMale Connector
-
18293250087 Gasket, NeopreneGasket, Neoprene
-
19415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
20705600459 ClampClamp
-
21415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
22709200077 Radiator Inlet HoseRadiator Inlet Hose
-
23709200080 Tank AnchorTank Anchor
-
24709200099 Coolant TankCoolant Tank
-
25709200198 Hose Outlet RadiatorHose Outlet Radiator
-
26709200206 Hose SupportHose Support
-
27709200207 Pressure CapPressure Cap
-
28548872589 Coolant Reserve Tank CapCoolant Reserve Tank Cap
-
29709200284 SupportSupport
-
30709200285 GrommetGrommet
-
31709200307 Radiator Ass'yRadiator Ass'y
-
32709200371 Fan Ass'yFan Ass'y
-
33415080200 Hose, PolyurethaneHose, Polyurethane
