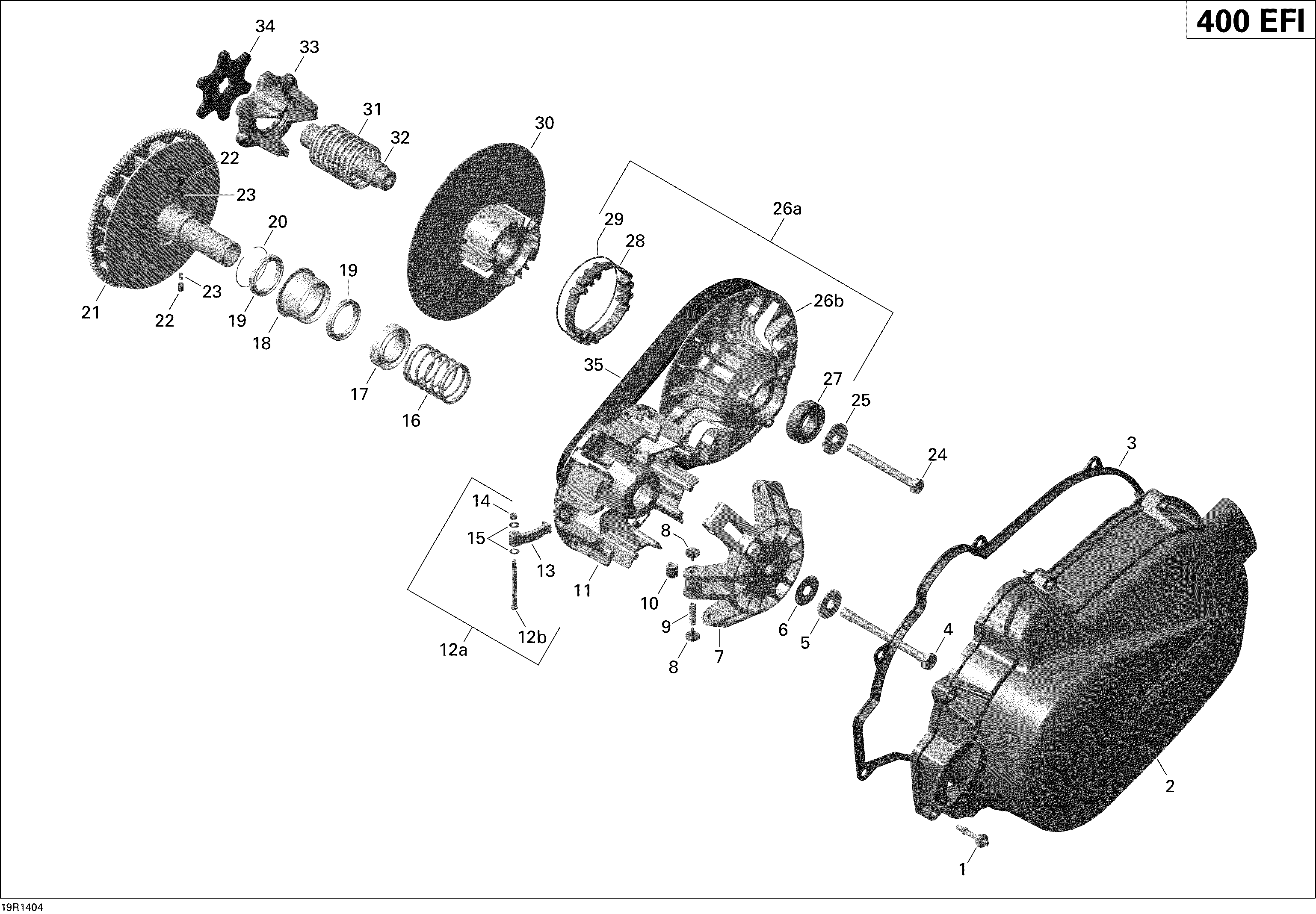

05- Transmission для BRP Outlander Max 400 EFI, STD, XT - 2014
-
№АртикулНазвание
-
1420440567 Hex. Distance Screw M6 X 30.5Hex. Distance Screw M6 X 30.5
-
2420610428 CVT CoverCVT Cover
-
3420630290 CVT Cover GasketCVT Cover Gasket
-
4420641812 Hex. Screw M12 X 140Hex. Screw M12 X 140
-
5420627760 Spring WasherSpring Washer
-
6420627920 Thrust WasherThrust Washer
-
7420280157 Governor Cup Ass'y. Includes 7 to 10Governor Cup Ass'y. Includes 7 to 10
-
8420281293 Slider Shoe SetSlider Shoe Set
-
9417223257 Roller AxleRoller Axle
-
10417223387 RollerRoller
-
11420280467 Outher HaftOuther Haft
-
12a420248424 Centrifugal Lever Set. Includes 12a to 15Centrifugal Lever Set. Includes 12a to 15
-
16420238166 Compression SpringCompression Spring
-
17420627577 Spring SeatSpring Seat
-
18420257439 ClutchClutch
-
19420632375 Ball BearingBall Bearing
-
20420245951 Retaining RingRetaining Ring
-
21420280247 Inner Half Ass'yInner Half Ass'y
-
22420229577 Spring SleeveSpring Sleeve
-
23420239135 Compression SpringCompression Spring
-
24420441485 Hex. Screw M10 X 110Hex. Screw M10 X 110
-
25420627590 Thrust WasherThrust Washer
-
26a420280173 Outer Half Pulley Ass'y. Includes 26a to 29Outer Half Pulley Ass'y. Includes 26a to 29
-
27420932421 Ball BearingBall Bearing
-
28420660121 Torque GearTorque Gear
-
29420245910 Retaining RingRetaining Ring
-
30420248233 Inner Half Ass'yInner Half Ass'y
-
31420238173 Compression Spring, Driven PulleyCompression Spring, Driven Pulley
-
32420220914 Driven Pulley ShaftDriven Pulley Shaft
-
33420280250 CamCam
-
34420627586 Cam PlateCam Plate
-
35715900024 V-BeltV-Belt
