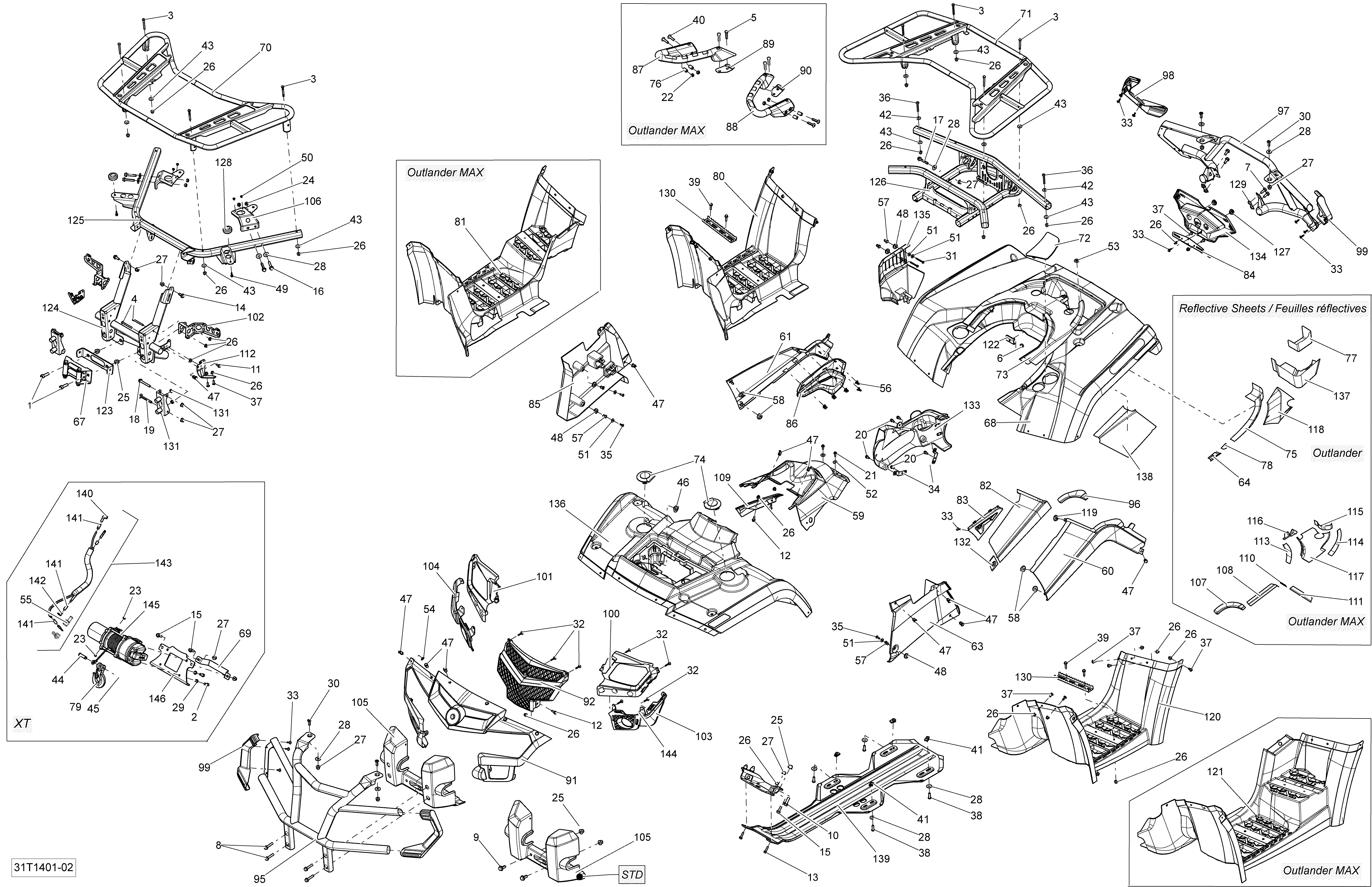

09- Body And Accessories для BRP Outlander Max 400 EFI, STD, XT - 2014
-
№АртикулНазвание
-
1205003544 Socket Screw M10 X 35. Model-XTSocket Screw M10 X 35. Model-XT
-
2205082044 Socket Head Screw M8 X 20. Model-XTSocket Head Screw M8 X 20. Model-XT
-
3207065544 Hex. Screw M6 X 55Hex. Screw M6 X 55
-
4207066044 Hex. Screw M6 X 60Hex. Screw M6 X 60
-
5207083544 Hex. Screw M8 X 35Hex. Screw M8 X 35
-
6207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
7207582084 Hex. Flanged Screw M8 X 20, Scotch Grip. Model-XTHex. Flanged Screw M8 X 20, Scotch Grip. Model-XT
-
8207584044 Hex. Flanged Screw M8 X 40, Scotch Grip. Model-XTHex. Flanged Screw M8 X 40, Scotch Grip. Model-XT
-
9207602544 Hex. Flanged Screw M10 X 25. Model-STDHex. Flanged Screw M10 X 25. Model-STD
-
10207603044 Hex. Flanged Screw M10 X 30Hex. Flanged Screw M10 X 30
-
11207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
12207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
13207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
14207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
15207682544 Hex. Flanged Screw M8 X 25. Model-XTHex. Flanged Screw M8 X 25. Model-XT
-
16207684544 Hex. Flanged Screw M8 X 45Hex. Flanged Screw M8 X 45
-
17207685044 Hex. Flanged Screw M8 X 50Hex. Flanged Screw M8 X 50
-
18207686044 Hex. Flanged Screw M8 x 60. Model-XTHex. Flanged Screw M8 x 60. Model-XT
-
19207787044 Carriage Bolt M8 X 70. Model-XTCarriage Bolt M8 X 70. Model-XT
-
20210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
21210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
22232081494 Hex. NutHex. Nut
-
23232561414 Elastic Stop Nut M6. Model-XTElastic Stop Nut M6. Model-XT
-
24232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
25233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
26233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
27233281414 Hex. Flanged Elastic Nut M8. Model-XTHex. Flanged Elastic Nut M8. Model-XT
-
28234082410 Flat Washer 8 mmFlat Washer 8 mm
-
29234181401 Lock Washer 8 mm. Model-XTLock Washer 8 mm. Model-XT
-
30235482584 Torx Screw M8 X 25. Model-XTTorx Screw M8 X 25. Model-XT
-
31241154540 Hex. Screw K50 X 45Hex. Screw K50 X 45
-
32250000101 Plastite Screw Type K-40, M4 X 25Plastite Screw Type K-40, M4 X 25
-
33250000113 Screw M4 X 16, Type K-40. Model-XTScrew M4 X 16, Type K-40. Model-XT
-
34705003646 Engine Cover SupportEngine Cover Support
-
35250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
36250000239 Torx Truss Screw M6 X 50Torx Truss Screw M6 X 50
-
37250000261 Torx Screw M6 X 16Torx Screw M6 X 16
-
38250000283 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
39250000435 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
40250000441 Torx Screw M8 x 35Torx Screw M8 x 35
-
41250100111 Panel Nut M8Panel Nut M8
-
42250200040 Flat WasherFlat Washer
-
43250200072 Flat WasherFlat Washer
-
44250400021 Clevis Pin. Model-XTClevis Pin. Model-XT
-
45250400022 Cotter Pin. Model-XTCotter Pin. Model-XT
-
46293000103 Plastic CapPlastic Cap
-
47293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
48293720053 GrommetGrommet
-
49365901100 Hex. Screw 12 X 3/4Hex. Screw 12 X 3/4
-
50390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
51391301600 WasherWasher
-
52250200082 Flat WasherFlat Washer
-
53414859400 CapCap
-
54506151252 WasherWasher
-
55515175919 Protector Cap. Model-XTProtector Cap. Model-XT
-
56517302785 ClipClip
-
57517303439 KnobKnob
-
58705000321 Oval WasherOval Washer
-
59715000789 Black Dash-Board KitBlack Dash-Board Kit
-
60705003484 Red LH Side Panel. Model-RedRed LH Side Panel. Model-Red
-
60705003483 Yellow LH Side Panel. Model-YellowYellow LH Side Panel. Model-Yellow
-
61705003679 Red RH Side Panel. Model-RedRed RH Side Panel. Model-Red
-
61705003678 Yellow RH Side Panel. Model-YellowYellow RH Side Panel. Model-Yellow
-
63705000652 LH Inner FenderLH Inner Fender
-
64705000809 Reflective SheetReflective Sheet
-
67715000011 Winch Roller. Model-XTWinch Roller. Model-XT
-
68715002335 Red Rear Fender Kit. Model-Red North AmericaRed Rear Fender Kit. Model-Red North America
-
68715002343 Red Rear Fender Kit. Model-Red EuropeRed Rear Fender Kit. Model-Red Europe
-
68715002339 Red Rear Fender Kit. Model-Red InternationalRed Rear Fender Kit. Model-Red International
-
68715002337 Yellow Rear Fender Kit. Model-Yellow North AmericaYellow Rear Fender Kit. Model-Yellow North America
-
68715002345 Yellow Rear Fender Kit. Model-Yellow EuropeYellow Rear Fender Kit. Model-Yellow Europe
-
68715002341 Yellow Rear Fender Kit. Model-Yellow InternationalYellow Rear Fender Kit. Model-Yellow International
-
69705001460 Black Winch Bracket. Model-XTBlack Winch Bracket. Model-XT
-
70705002616 Front Luggage RackFront Luggage Rack
-
71705002617 Rear Luggage RackRear Luggage Rack
-
72705001910 Black LH CapBlack LH Cap
-
73705002952 Yellow Storage Tray. Model-YellowYellow Storage Tray. Model-Yellow
-
73705002954 Red Storage Tray. Model-RedRed Storage Tray. Model-Red
-
74705001999 Front CapFront Cap
-
75705002085 Reflective SheetReflective Sheet
-
76705002153 BushingBushing
-
77705002191 Reflective SheetReflective Sheet
-
79705002329 Hook. Model-XTHook. Model-XT
-
81705002487 RH FootboardRH Footboard
-
82705002491 Reflective SheetReflective Sheet
-
83705002493 Console CapConsole Cap
-
84705002499 Support. Model-EuropeSupport. Model-Europe
-
85705002640 Inner FenderInner Fender
-
86705002664 Muffler CoverMuffler Cover
-
87705002699 RH HandleRH Handle
-
88705002700 LH HandleLH Handle
-
89705002760 RH Fixation PlateRH Fixation Plate
-
90705002762 LH Fixation PlateLH Fixation Plate
-
91705002778 Yellow Front Fascia. Model-YellowYellow Front Fascia. Model-Yellow
-
91705003080 Red Front Fascia. Model-RedRed Front Fascia. Model-Red
-
92705002779 Upper GrillUpper Grill
-
95705002812 Front Bumber. Model-XTFront Bumber. Model-XT
-
97705002806 Rear Bumber. Model-XTRear Bumber. Model-XT
-
98705002802 LH Front Cap. Model-XTLH Front Cap. Model-XT
-
99705002803 RH Front Cap. Model-XTRH Front Cap. Model-XT
-
100705002825 LH Head Lamp SupportLH Head Lamp Support
-
101705002826 RH Head Lamp SupportRH Head Lamp Support
-
102705002925 LH Facia SupportLH Facia Support
-
102705002926 RH Facia SupportRH Facia Support
-
103705002780 LH Lower Front Facia. Model-North America/InternationalLH Lower Front Facia. Model-North America/International
-
103705002889 LH Lower Front Facia. Model-EuropeLH Lower Front Facia. Model-Europe
-
104705002781 RH Lower Front Facia. Model-North America/InternationalRH Lower Front Facia. Model-North America/International
-
104705002890 RH Lower Front Facia. Model-EuropeRH Lower Front Facia. Model-Europe
-
105705003495 Guard Plate. Model-STDGuard Plate. Model-STD
-
105705003496 Guard Plate. Model-XTGuard Plate. Model-XT
-
106705002995 LH Anchor PlateLH Anchor Plate
-
106705002997 RH Anchor PlateRH Anchor Plate
-
107705003004 Reflective SheetReflective Sheet
-
108705003005 Reflective SheetReflective Sheet
-
109705001529 Lever Indicator. Model-North America/InternationalLever Indicator. Model-North America/International
-
109705003028 Lever Indicator. Model-EuropeLever Indicator. Model-Europe
-
110705003033 Reflective SheetReflective Sheet
-
111705003034 Reflective SheetReflective Sheet
-
112705003037 LH Lower Facia SupportLH Lower Facia Support
-
112705003039 RH Lower Facia SupportRH Lower Facia Support
-
113705003082 Reflective SheetReflective Sheet
-
114705003083 Reflective SheetReflective Sheet
-
115705003084 Reflective SheetReflective Sheet
-
116705003085 Reflective SheetReflective Sheet
-
117705003086 Reflective SheetReflective Sheet
-
118705003087 Reflective SheetReflective Sheet
-
119705003264 GrommetGrommet
-
121705003633 LH FootboardLH Footboard
-
122705003647 U ReinforcementU Reinforcement
-
123705003649 Winch Bracket. Model-XTWinch Bracket. Model-XT
-
124705003654 Front BumperFront Bumper
-
125705003655 Front SupportFront Support
-
126705003656 Rear SupportRear Support
-
127705003666 Rubber GrommetRubber Grommet
-
128705003667 Rubber CapRubber Cap
-
129705003796 Link Plate. Model-XTLink Plate. Model-XT
-
130705003648 FootrestFootrest
-
131705003828 Bumper Bracket. Model-XTBumper Bracket. Model-XT
-
132705003830 Reflective SheetReflective Sheet
-
133705003837 Engine CoverEngine Cover
-
134705003840 Rear Facia. Model-XTRear Facia. Model-XT
-
135705004036 Thread CoverThread Cover
-
136715002329 Red Front Fender Kit. Model-Red North AmericaRed Front Fender Kit. Model-Red North America
-
136715002331 Red Front Fender Kit. Model-Red EuropeRed Front Fender Kit. Model-Red Europe
-
136715002331 Red Front Fender Kit. Model-Red InternationalRed Front Fender Kit. Model-Red International
-
136715002330 Yellow Front Fender Kit. Model-Yellow North AmericaYellow Front Fender Kit. Model-Yellow North America
-
136715002333 Yellow Front Fender Kit. Model-Yellow EuropeYellow Front Fender Kit. Model-Yellow Europe
-
136715002333 Yellow Front Fender Kit. Model-Yellow InternationalYellow Front Fender Kit. Model-Yellow International
-
137705005888 Reflective SheetReflective Sheet
-
138705005889 Reflective Sheet. Model-EuropeReflective Sheet. Model-Europe
-
139715000688 Skid Plate KitSkid Plate Kit
-
140710000476 Open Barrel, 6.6 mm. Model-XTOpen Barrel, 6.6 mm. Model-XT
-
141710000483 Shrink Tubing. Model-XTShrink Tubing. Model-XT
-
142710000506 Open Barell. Model-XTOpen Barell. Model-XT
-
143710001251 Winch Cable Ass'y. Model-XTWinch Cable Ass'y. Model-XT
-
144732610072 Push NutPush Nut
-
145705003296 Winch. Model-XTWinch. Model-XT
-
146705004278 Black Mounting Plate. Model-XTBlack Mounting Plate. Model-XT
