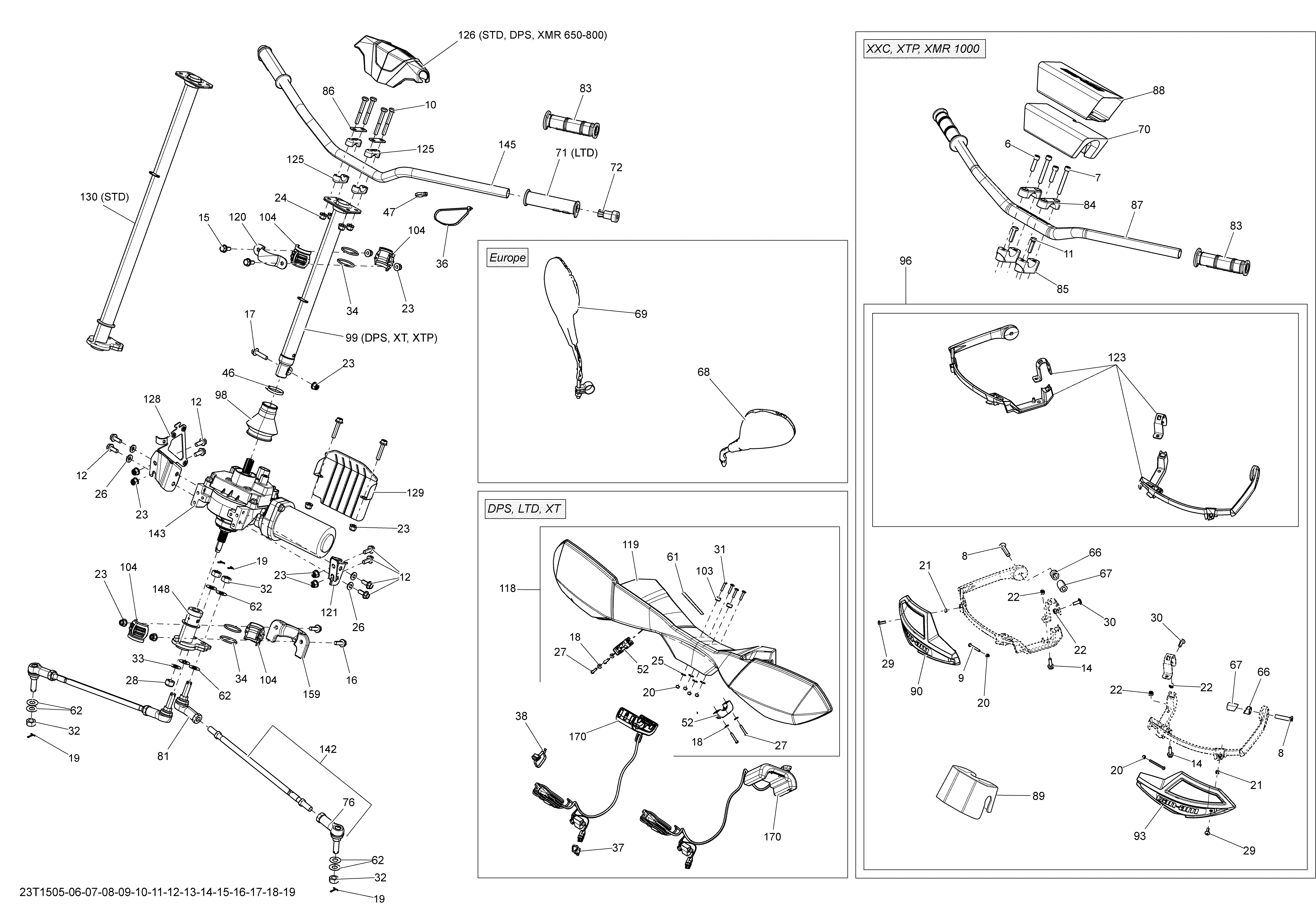

07- Steering _23T1519 для BRP Outlander 1000 EFI Xmr - 2015
-
№АртикулНазвание
-
6205083060 Socket Screw M8 X 30Socket Screw M8 X 30
-
7205086060 Socket Head Screw M8 X 60Socket Head Screw M8 X 60
-
8205384034 Socket Head ScrewSocket Head Screw
-
9205444086 Socket Head Screw M4 X 40Socket Head Screw M4 X 40
-
11207183060 Hex. Screw M8 X 30Hex. Screw M8 X 30
-
12207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
14207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
15207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
16207682534 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
17207683544 Hex. Flanged Screw M8 X 35Hex. Flanged Screw M8 X 35
-
19211400013 Cotter PinCotter Pin
-
20232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
21232551600 Hex. Elastic Nut M5Hex. Elastic Nut M5
-
22232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
23233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
24233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
26234281474 Conical Spring Washer M8Conical Spring Washer M8
-
28250000047 Hex. Flanged Elastic Nut M12Hex. Flanged Elastic Nut M12
-
29250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
30250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
-
32250100099 Nut M12Nut M12
-
33250200086 Flat WasherFlat Washer
-
34293300068 O-RingO-Ring
-
46414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
62250200086 Flat WasherFlat Washer
-
66709400161 Bracket, SmallBracket, Small
-
67709400162 Bracket, LargeBracket, Large
-
70709400422 FoamFoam
-
76709400486 Ball Joint, LH ThreadsBall Joint, LH Threads
-
81709400490 Ball JointBall Joint
-
83709400493 Handle GripHandle Grip
-
84709400496 SupportSupport
-
85709400497 Steering SupportSteering Support
-
87709400513 Aluminum Handle Bar. Package-XMR BlackAluminum Handle Bar. Package-XMR Black
-
88709400519 Cover. Package-XMR BlackCover. Package-XMR Black
-
90709400616 Black RH Deflector. Package-XMR 1000 Deep BlackBlack RH Deflector. Package-XMR 1000 Deep Black
-
90709401622 Manta Green RH Deflector. Package-XMR 1000 Digital CamoManta Green RH Deflector. Package-XMR 1000 Digital Camo
-
93709400617 Black LH Deflector. Package-XMR 1000 Deep BlackBlack LH Deflector. Package-XMR 1000 Deep Black
-
93709401623 Manta Green LH Deflector. Package-XMR 1000 Digital CamoManta Green LH Deflector. Package-XMR 1000 Digital Camo
-
98709400674 BellowsBellows
-
99709400703 Noir Upper Main TubeNoir Upper Main Tube
-
104709400783 Spherical Half BushingSpherical Half Bushing
-
120709400827 Upper Column AttachmentUpper Column Attachment
-
121709400848 Power Steering Module BracketPower Steering Module Bracket
-
123715000545 Frame Deflector Support KitFrame Deflector Support Kit
-
128709400994 RH Steering BracketRH Steering Bracket
-
129709401005 Heat DeflectorHeat Deflector
-
142703500829 Tie-Rod Ass'yTie-Rod Ass'y
-
143709401182 Power SteeringPower Steering
-
145709400513 Aluminum Handle BarAluminum Handle Bar
-
148703500812 Pitman KitPitman Kit
-
159709401428 Column AttachmentColumn Attachment
