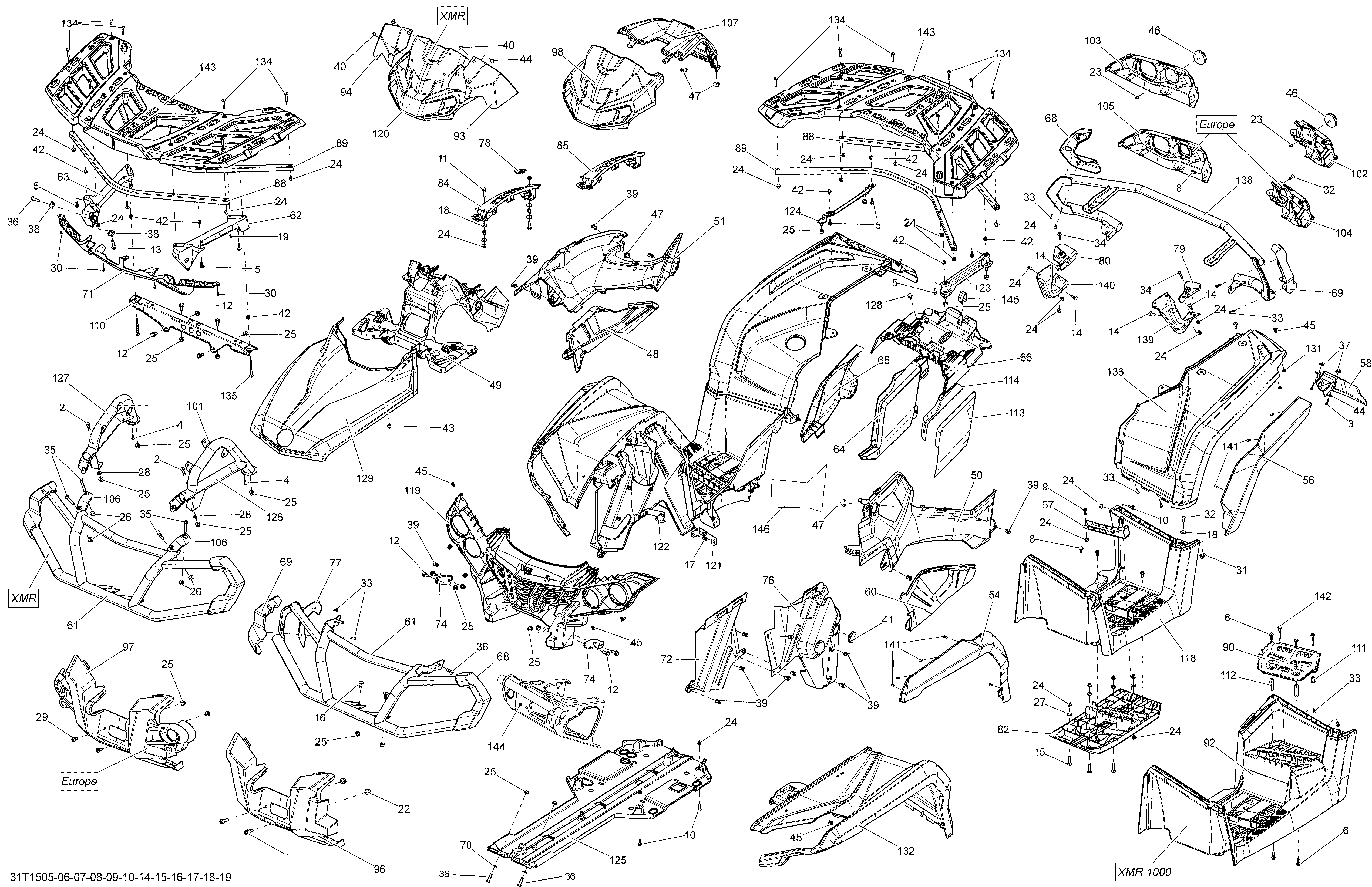

09- Body And Accessories _31T1519 для BRP Outlander 1000 EFI Xmr - 2015
-
№АртикулНазвание
-
1205003044 Socket Screw M10 x 30Socket Screw M10 x 30
-
2207183054 Hex. Cap Screw M8 X 30Hex. Cap Screw M8 X 30
-
4207551634 Hex. Flanged Screw, Scotch GripHex. Flanged Screw, Scotch Grip
-
6207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
8207661684 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
9207662034 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
10207662084 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
11207663034 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
12207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
14207762044 Carriage Bolt M6 X 20Carriage Bolt M6 X 20
-
15207763584 Carriage Bolt M6 X 35Carriage Bolt M6 X 35
-
16207782044 Carriage Bolt, M8 X 20Carriage Bolt, M8 X 20
-
17210261040 Hex. Flanged Screw M6 X 10Hex. Flanged Screw M6 X 10
-
18224061201 Flat WasherFlat Washer
-
22233201434 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
23233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
25233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
26233281464 Elastic Flange Nut M8Elastic Flange Nut M8
-
27234062410 Flat Washer 6 mmFlat Washer 6 mm
-
28234081670 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
29236282084 Hex. Screw M8 X 20Hex. Screw M8 X 20
-
31250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
32250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
33250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
34250000371 Torx Screw M6 X 30 StainlessTorx Screw M6 X 30 Stainless
-
35250000535 Torx Screw M8 X 55Torx Screw M8 X 55
-
36250000544 Torx Screw M8 X 30Torx Screw M8 X 30
-
40293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
41293250242 Rubber CoverRubber Cover
-
43293830005 Rubber BumperRubber Bumper
-
44517124300 WasherWasher
-
45517302785 ClipClip
-
46705002408 Red ReflectorRed Reflector
-
47705003264 GrommetGrommet
-
48705003444 Engine CoverEngine Cover
-
49715001552 Dash Support KitDash Support Kit
-
50705003446 Yellow LH Lateral Panel. Model Black-YellowYellow LH Lateral Panel. Model Black-Yellow
-
50705008580 Digital Camo LH Lateral Panel. Model-Digital CamoDigital Camo LH Lateral Panel. Model-Digital Camo
-
51705009019 Yellow RH Lateral Panel. Model Black-YellowYellow RH Lateral Panel. Model Black-Yellow
-
51705008587 Digital CAMO RH Lateral Panel. Model-Digital CamoDigital CAMO RH Lateral Panel. Model-Digital Camo
-
54705006988 LH Mud Guard XmrLH Mud Guard Xmr
-
54705006989 RH Mud Guard XmrRH Mud Guard Xmr
-
56705003918 LH Rear MudguardLH Rear Mudguard
-
56705003920 RH Rear MudguardRH Rear Mudguard
-
58705003921 LH Rear Mudguard, Part 2LH Rear Mudguard, Part 2
-
58705003922 RH Rear Mudguard, Part 2RH Rear Mudguard, Part 2
-
60705004147 LH Extension PannelLH Extension Pannel
-
61705006876 Black Front Bumper. Model Black-YellowBlack Front Bumper. Model Black-Yellow
-
61705008573 Green Front Bumper. Model-Digital CamoGreen Front Bumper. Model-Digital Camo
-
64715001897 LH Extension PanelLH Extension Panel
-
65705004348 RH Extension PanelRH Extension Panel
-
66705007948 Seat HolderSeat Holder
-
67705004352 LH FootrestLH Footrest
-
67705005395 RH FootrestRH Footrest
-
68705004409 Cap (Front LH) (Rear RH)Cap (Front LH) (Rear RH)
-
69705004410 Cap (Front RH) (Rear LH)Cap (Front RH) (Rear LH)
-
70705004497 RingRing
-
72705004558 RH Inner FenderRH Inner Fender
-
72705004557 LH Inner FenderLH Inner Fender
-
74705004565 Lower Fender SupportLower Fender Support
-
76705004587 RH Inner FenderRH Inner Fender
-
76705004588 LH Inner FenderLH Inner Fender
-
77705004987 Bracket CoverBracket Cover
-
79705005094 LH BracketLH Bracket
-
80705005095 RH BracketRH Bracket
-
82705005254 LH. FootboardLH. Footboard
-
82705005253 RH. FootboardRH. Footboard
-
84705005257 IndicatorIndicator
-
90705005890 FootrestFootrest
-
92705005978 LH FootboardLH Footboard
-
93705006134 LH Air DeflectorLH Air Deflector
-
94705006135 RH Air DeflectorRH Air Deflector
-
96705006299 Front Guard PlateFront Guard Plate
-
98705006373 Gage SupportGage Support
-
101705005094 LH BracketLH Bracket
-
101705005095 RH BracketRH Bracket
-
102705006643 LH Rear FaciaLH Rear Facia
-
103705006650 RH Rear FaciaRH Rear Facia
-
106705006691 Black Upper Bracket. Model Black-YellowBlack Upper Bracket. Model Black-Yellow
-
106705008574 Manta Green Upper Bracket. Model-Digital CamoManta Green Upper Bracket. Model-Digital Camo
-
107715001765 Dash Kit. North AmericaDash Kit. North America
-
107715002783 Dash Kit. Europe, Int'lDash Kit. Europe, Int'l
-
110705006220 Front Bumper Center SupportFront Bumper Center Support
-
111705006818 Coupling Nut, ShortCoupling Nut, Short
-
112705006819 Coupling Nut, LargeCoupling Nut, Large
-
113705006870 Heat ShieldHeat Shield
-
114705006871 Heat ShieldHeat Shield
-
118705005977 RH FootboardRH Footboard
-
119705007041 Front FaciaFront Facia
-
120705006373 Gage SupportGage Support
-
121705007140 LH Inner Fender BracketLH Inner Fender Bracket
-
122705007141 RH Inner Fender BracketRH Inner Fender Bracket
-
123705007277 LH SupportLH Support
-
124705007278 RH SupportRH Support
-
125705007553 Central Skid PlateCentral Skid Plate
-
126705007878 LH Radiator Support. Model Black-YellowLH Radiator Support. Model Black-Yellow
-
126705008575 Green LH Radiator Support. Model-Digital CamoGreen LH Radiator Support. Model-Digital Camo
-
127705007879 RH Radiator Support. Model Black-YellowRH Radiator Support. Model Black-Yellow
-
127705008576 Green RH Radiator Support. Model-Digital CamoGreen RH Radiator Support. Model-Digital Camo
-
128708000759 Rubber StopperRubber Stopper
-
129708301154 Yellow Hood Kit. Model Black-YellowYellow Hood Kit. Model Black-Yellow
-
129708301354 Digital CAMO Hood Kit. Model-Digital CamoDigital CAMO Hood Kit. Model-Digital Camo
-
131732610072 Push NutPush Nut
-
132715002302 Black LH Front Fender Kit. Model-Black-Yellow North AmericaBlack LH Front Fender Kit. Model-Black-Yellow North America
-
132715002304 Black LH Front Fender Kit. Model-Black-Yellow InternationalBlack LH Front Fender Kit. Model-Black-Yellow International
-
132715001826 Black RH Front Fender Kit. Model-Black-Yellow North AmericaBlack RH Front Fender Kit. Model-Black-Yellow North America
-
132715002309 Black RH Front Fender Kit. Model-Black-Yellow InternationalBlack RH Front Fender Kit. Model-Black-Yellow International
-
132715002999 Painted Black LH Front Fender Kit. Model-Digital Camo North AmericaPainted Black LH Front Fender Kit. Model-Digital Camo North America
-
132715003001 Painted Black Front Fender Kit. Model-Digital Camo InternationalPainted Black Front Fender Kit. Model-Digital Camo International
-
132715002991 Painted Black RH Front Fender Kit. Model-Digital Camo North AmericaPainted Black RH Front Fender Kit. Model-Digital Camo North America
-
132715002993 Painted Black RH Front Fender Kit. Model-Digital Camo InternationalPainted Black RH Front Fender Kit. Model-Digital Camo International
-
135206285044 Socket Set Screw M8 x 50Socket Set Screw M8 x 50
-
136715001798 Black LH Rear Fender Kit. Model-Black-Yellow North AmericaBlack LH Rear Fender Kit. Model-Black-Yellow North America
-
136715002312 Black LH Rear Fender Kit. Model-Black-Yellow InternationalBlack LH Rear Fender Kit. Model-Black-Yellow International
-
136715002996 Painted Black LH Rear Fender Kit. Model-Digital Camo North AmericaPainted Black LH Rear Fender Kit. Model-Digital Camo North America
-
136715002998 Painted Black LH Rear Fender Kit. Model-Digital Camo InternationalPainted Black LH Rear Fender Kit. Model-Digital Camo International
-
136715002315 Black RH Rear Fender Kit. Model-Black-Yellow InternationalBlack RH Rear Fender Kit. Model-Black-Yellow International
-
136705005221 Black RH Rear Fender. Model-Black-Yellow North AmericaBlack RH Rear Fender. Model-Black-Yellow North America
-
136705009870 Painted Black RH Rear Fender Kit. Model-Digital Camo North AmericaPainted Black RH Rear Fender Kit. Model-Digital Camo North America
-
136715002995 Painted Black RH Rear Fender Kit. Model-Digital Camo InternationalPainted Black RH Rear Fender Kit. Model-Digital Camo International
-
138705005019 Black Bumper. Model Black-YellowBlack Bumper. Model Black-Yellow
-
138705008577 Green Bumper. Model-Digital CamoGreen Bumper. Model-Digital Camo
-
139705007896 LH Rear BracketLH Rear Bracket
-
140705007897 RH Rear BracketRH Rear Bracket
-
141241141340 Hex. Screw K40 X 13Hex. Screw K40 X 13
-
142207664536 Hex. Flange Screw M6 X 45Hex. Flange Screw M6 X 45
-
143715001852 Rack Kit. North AmericaRack Kit. North America
-
143715002784 Rack Kit. Europe, Int'lRack Kit. Europe, Int'l
-
144705009253 Black Front Bumper SupportBlack Front Bumper Support
-
145708200462 Rod CapRod Cap
-
146705008438 Heat ShieldHeat Shield
