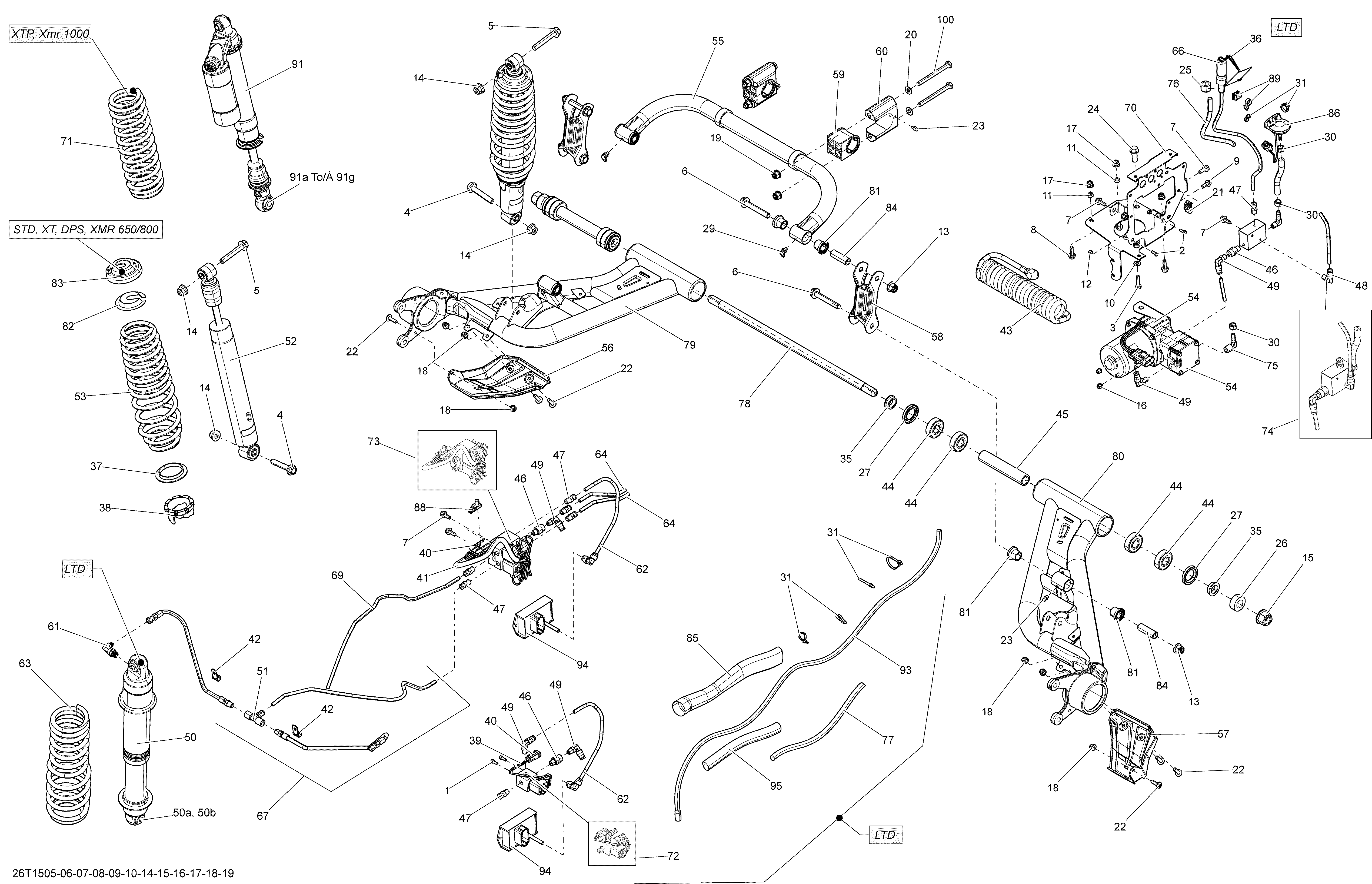

08- Rear Suspension _26T1519 для BRP Outlander 1000 EFI Xmr - 2015
-
№АртикулНазвание
-
4207605546 Flanged Hex. Screw M10 X 55Flanged Hex. Screw M10 X 55
-
5207606046 Flanged Hex. Screw M10 X 60Flanged Hex. Screw M10 X 60
-
6207606536 Hex Flange Screw M10 X 65Hex Flange Screw M10 X 65
-
13233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
14233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
15233211466 Hex. Flanged Elastic Nut M16Hex. Flanged Elastic Nut M16
-
18233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
19233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
20234081430 Flat Washer M8Flat Washer M8
-
22250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
23250000315 Grease FittingGrease Fitting
-
26250200112 Flat Washer M17Flat Washer M17
-
27293200144 SealSeal
-
29293550056 Grease Fitting 90°Grease Fitting 90°
-
35706001282 SpacerSpacer
-
44706000826 Ball BearingBall Bearing
-
45706000828 SpacerSpacer
-
55706000988 SwaybarSwaybar
-
56706001009 LH ProtectorLH Protector
-
57706001010 RH ProtectorRH Protector
-
58706001020 Swaybar LinkageSwaybar Linkage
-
59706001098 CushionCushion
-
60706001099 Bushing HolderBushing Holder
-
71706000950 Yellow Spring. Package-XMR 1000 Deep BlackYellow Spring. Package-XMR 1000 Deep Black
-
71706001838 Manta Green Spring. Package-XMR 1000 Digital CamoManta Green Spring. Package-XMR 1000 Digital Camo
-
78706001664 Axial Pivot M16Axial Pivot M16
-
79706001860 Black LH Swing ArmBlack LH Swing Arm
-
80706001861 Black RH Swing ArmBlack RH Swing Arm
-
81703500875 Bushing Kit. Includes 84Bushing Kit. Includes 84
-
84703500875 Bushing Kit. Includes 81Bushing Kit. Includes 81
-
91706001959 Rear ShockRear Shock
-
91A715900336 Ball JournalBall Journal
-
91b715900331 ProtectorProtector
-
91c715900209 O-Ring BushingO-Ring Bushing
-
91d715900252 Retaining RingRetaining Ring
-
91e715900210 Interior BushingInterior Bushing
-
100207088587 Hex,. Screw M8 X 85Hex,. Screw M8 X 85
