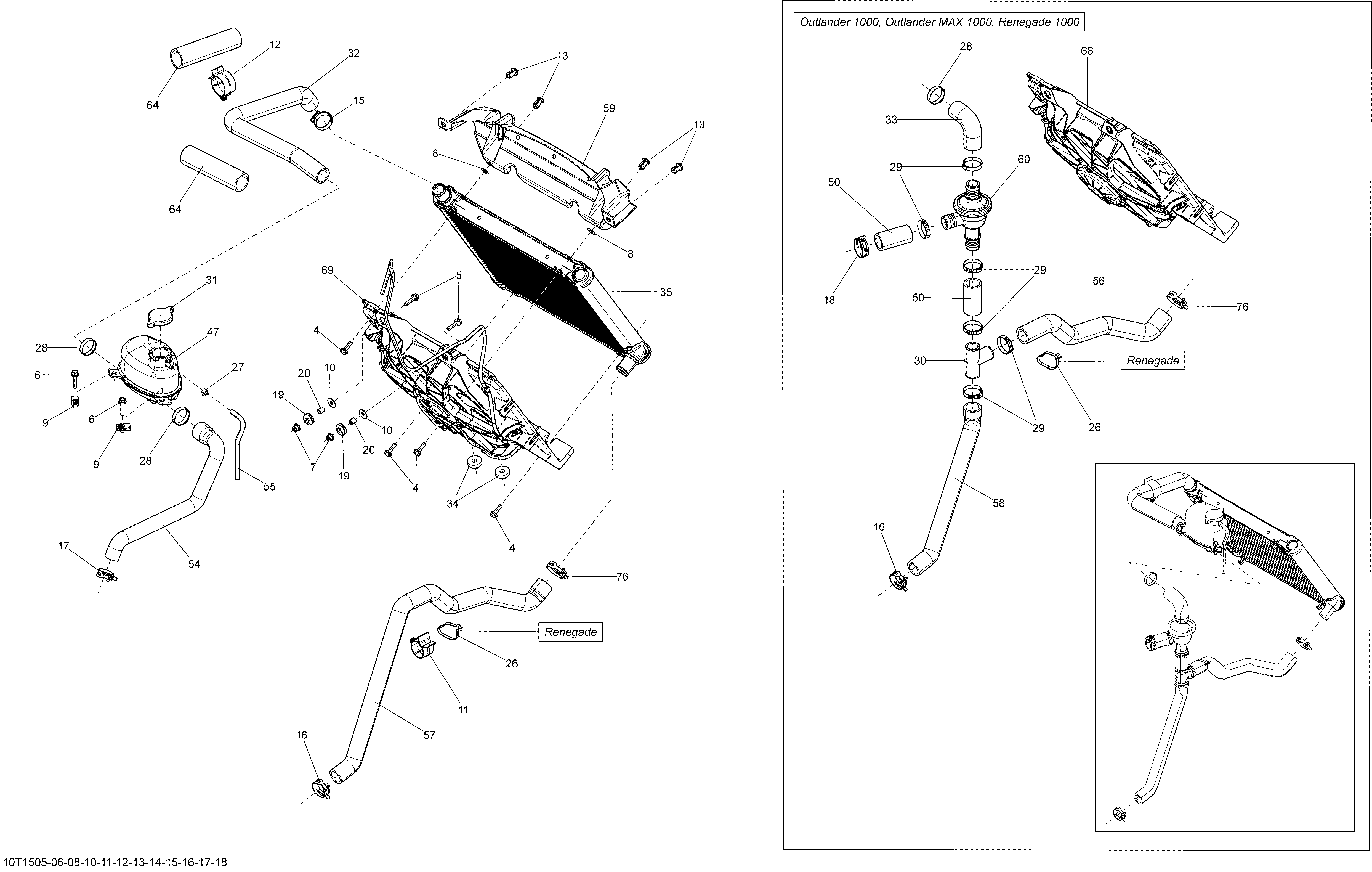

01- Cooling System _10T1513 для BRP Renegade 1000 EFI - 2015
-
№АртикулНазвание
-
4207662034 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
5207662534 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
6207663034 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
7233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
9250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
10250200082 Flat WasherFlat Washer
-
12275500590 RetainerRetainer
-
15293650098 Norma Gear ClampNorma Gear Clamp
-
16293650108 Norma Spring ClampNorma Spring Clamp
-
18293650166 Norma Spring ClampNorma Spring Clamp
-
19293720053 GrommetGrommet
-
20293900105 BushingBushing
-
26414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
27414554800 Spring ClampSpring Clamp
-
28509000162 Gear ClampGear Clamp
-
29509000162 Gear ClampGear Clamp
-
30509000219 T-FittingT-Fitting
-
31709200207 Pressure CapPressure Cap
-
32709200278 Radiator Inlet HoseRadiator Inlet Hose
-
33709200280 Thermostat Inlet HoseThermostat Inlet Hose
-
34709200285 GrommetGrommet
-
35709200286 RadiatorRadiator
-
47709200297 Coolant TankCoolant Tank
-
50709200299 HoseHose
-
55415080200 Hose, PolyurethaneHose, Polyurethane
-
56709200390 Radiator Outlet HoseRadiator Outlet Hose
-
58709200392 HoseHose
-
60709200406 ThermostatThermostat
-
64515176260 Tubing 35 mmTubing 35 mm
-
66709200462 Fan Ass'yFan Ass'y
-
76293650166 Norma Spring ClampNorma Spring Clamp
