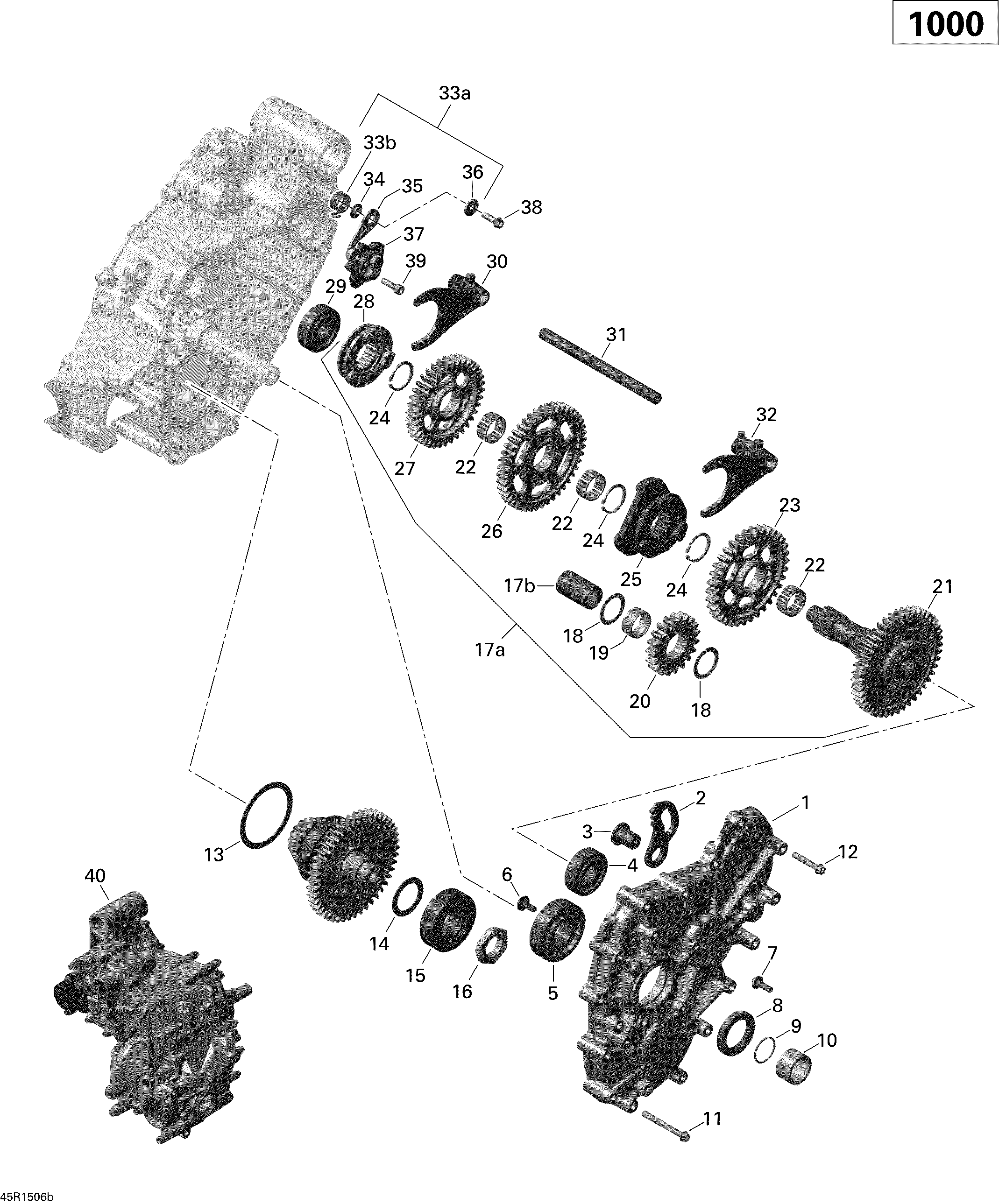

05- Gear Box 2_45R1506b для BRP Renegade 1000 EFI - 2015
-
№АртикулНазвание
-
2420257658 Parking Lock LeverParking Lock Lever
-
3420647121 Collar SleeveCollar Sleeve
-
4420932815 Ball Bearing 6303EBall Bearing 6303E
-
5420932825 Ball BearingBall Bearing
-
6420241529 Torx Screw M6 X 16Torx Screw M6 X 16
-
7420441430 Distance Screw M6Distance Screw M6
-
8420950089 Oil SealOil Seal
-
9420631610 O-RingO-Ring
-
10420647253 Distance RingDistance Ring
-
11420440702 Flanged Torx Screw M6 X 55Flanged Torx Screw M6 X 55
-
12420440274 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
17a420281151 Gear Set. Includes 17a to 28Gear Set. Includes 17a to 28
-
18420944476 Thrust WasherThrust Washer
-
19420932930 Needle BearingNeedle Bearing
-
22420632070 Needle BearingNeedle Bearing
-
23420434871 Gear Pinion, 34 TeethGear Pinion, 34 Teeth
-
24420845771 Retaining RingRetaining Ring
-
25420257953 Shifting SleeveShifting Sleeve
-
26420434864 Gear Pinion, 44 TeethGear Pinion, 44 Teeth
-
27420434855 Gear Pinion, 37 TeethGear Pinion, 37 Teeth
-
28420257944 Shifting SleeveShifting Sleeve
-
29420932815 Ball Bearing 6303EBall Bearing 6303E
-
30420257628 Shift ForkShift Fork
-
31420258386 Fork SpindleFork Spindle
-
32420257618 Shift ForkShift Fork
-
33a420248532 Index Lever Ass'y. Includes 33a to 37Index Lever Ass'y. Includes 33a to 37
-
38420440207 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
39420241939 Allen Screw M6 X 20Allen Screw M6 X 20
-
40420685802 Gear BoxGear Box
