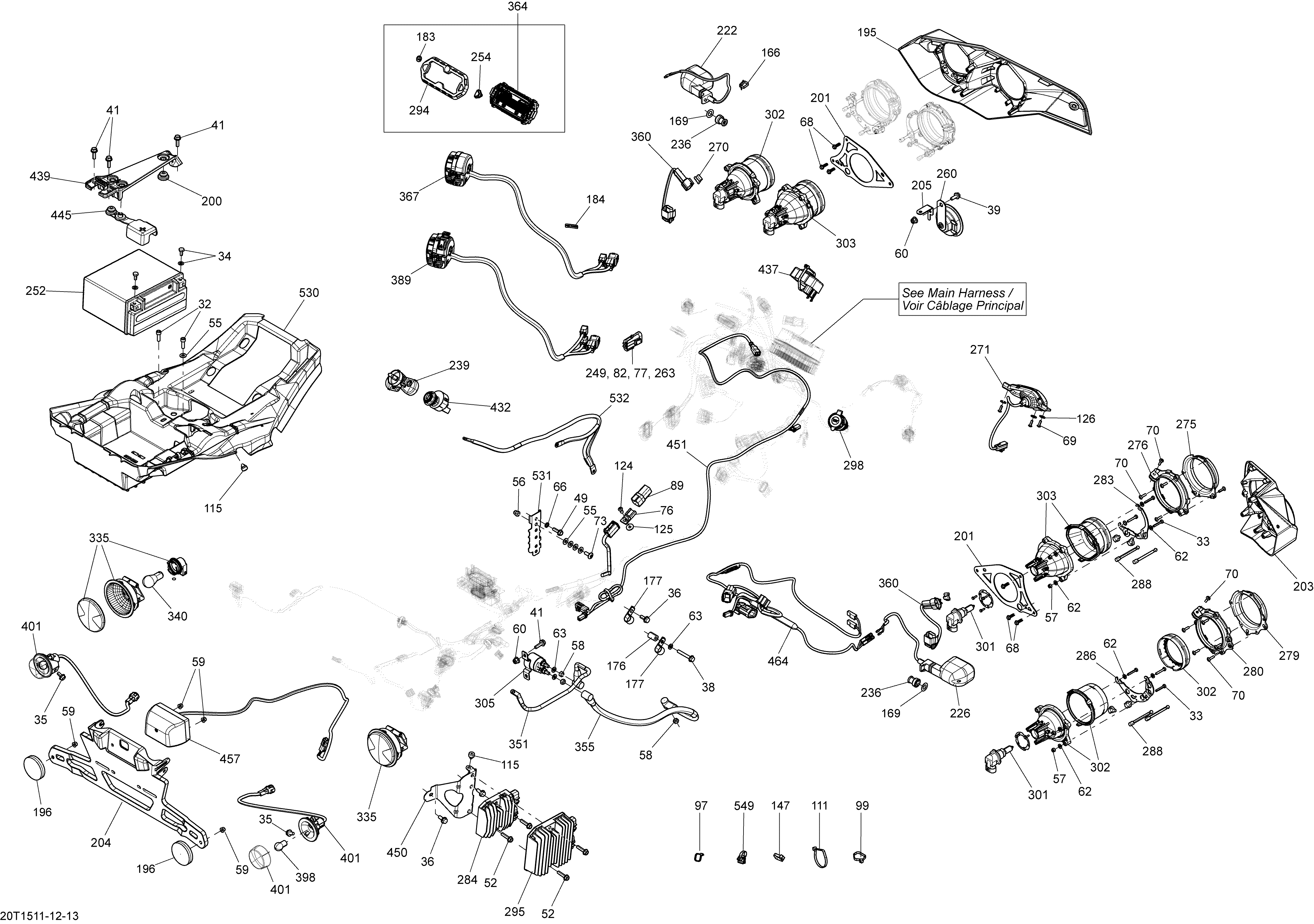

10- Electrical System _20T1513 для BRP Renegade 1000 EFI - 2015
-
№АртикулНазвание
-
32205562044 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
33207142544 Hex. Screw M4 X 25Hex. Screw M4 X 25
-
34250000282 Battery Bolt KitBattery Bolt Kit
-
36207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
41207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
49210262040 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
52210262580 Hex. Flanged Forming Screw M6 X 25Hex. Flanged Forming Screw M6 X 25
-
55224061121 Flat WasherFlat Washer
-
56232361493 Domed Nut M6Domed Nut M6
-
57232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
58232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
60233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
62234051410 Flat Washer M5Flat Washer M5
-
63234161601 Lock Washer Helical M6Lock Washer Helical M6
-
66234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
68241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
70250000084 Phillips Screw K40 X 16Phillips Screw K40 X 16
-
73250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
-
76270000141 ClipClip
-
77278000216 Wire SealWire Seal
-
82278000281 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
89710003006 HousingHousing
-
97293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
99293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
111293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
115293830005 Rubber BumperRubber Bumper
-
124390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
125391301600 WasherWasher
-
147414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
166414227300 ClipClip
-
177518321570 Open ClampOpen Clamp
-
183704904615 BRP Logo, 13 mmBRP Logo, 13 mm
-
195705004508 LH Front FaciaLH Front Facia
-
200705003666 Rubber GrommetRubber Grommet
-
201705004309 Painted Headlamp SupportPainted Headlamp Support
-
203705004509 RH Front FaciaRH Front Facia
-
239710002183 Grey-Electronic KeyGrey-Electronic Key
-
239710000817 Black-Electronic KeyBlack-Electronic Key
-
249710000917 Connector Ass'yConnector Ass'y
-
252410301203 Lead Battery 18 AmperesLead Battery 18 Amperes
-
254715900265 ButtonButton
-
263710000992 ClipClip
-
275710001083 LH Low Front HousingLH Low Front Housing
-
275710001081 RH Low Front HousingRH Low Front Housing
-
276710001084 LH Low Rear HousingLH Low Rear Housing
-
276710001082 RH Low Rear HousingRH Low Rear Housing
-
279710001087 LH High Front HousingLH High Front Housing
-
279710001085 RH High Front HousingRH High Front Housing
-
280710001088 LH High Rear HousingLH High Rear Housing
-
280710001086 RH High Rear HousingRH High Rear Housing
-
283710001037 LH Low Light SupportLH Low Light Support
-
283710001094 RH Low Light SupportRH Low Light Support
-
284710001103 Voltage RegulatorVoltage Regulator
-
286710001036 LH High Light SupportLH High Light Support
-
286710001115 RH High Light SupportRH High Light Support
-
288710001147 Setting ScrewSetting Screw
-
294710001183 Trim Ring Ass'yTrim Ring Ass'y
-
295710001191 Voltage RegulatorVoltage Regulator
-
298710001248 Outlet DCOutlet DC
-
301415129249 Halogen BulbHalogen Bulb
-
302710002525 High Beam Ass'yHigh Beam Ass'y
-
303710002524 Low Beam Ass'yLow Beam Ass'y
-
305710001364 Starter RelayStarter Relay
-
335710001645 Tail LightTail Light
-
340520000758 BulbBulb
-
351710001749 Positive CablePositive Cable
-
355710001750 Positive CablePositive Cable
-
360710001757 Harness Ass'yHarness Ass'y
-
364710003924 Multifunction SpeedometerMultifunction Speedometer
-
367710004042 Multi-Fonction Handle. STDMulti-Fonction Handle. STD
-
367710004041 Multi-Function Handle. XXC Except EuropeMulti-Function Handle. XXC Except Europe
-
389710004040 Multi-Function Handle. EuropeMulti-Function Handle. Europe
-
432710003847 Ignition SwitchIgnition Switch
-
437710003239 Flasher Unit. EuropeFlasher Unit. Europe
-
439710002404 Fixation PlateFixation Plate
-
445710002569 CapCap
-
450710002587 Rectifier SupportRectifier Support
-
451710002613 Brake HarnessBrake Harness
-
530710003990 Battery TrayBattery Tray
-
531710004118 Connector BracketConnector Bracket
-
532710004183 Ground CableGround Cable
-
549710002896 Tie-Rap ClipTie-Rap Clip
