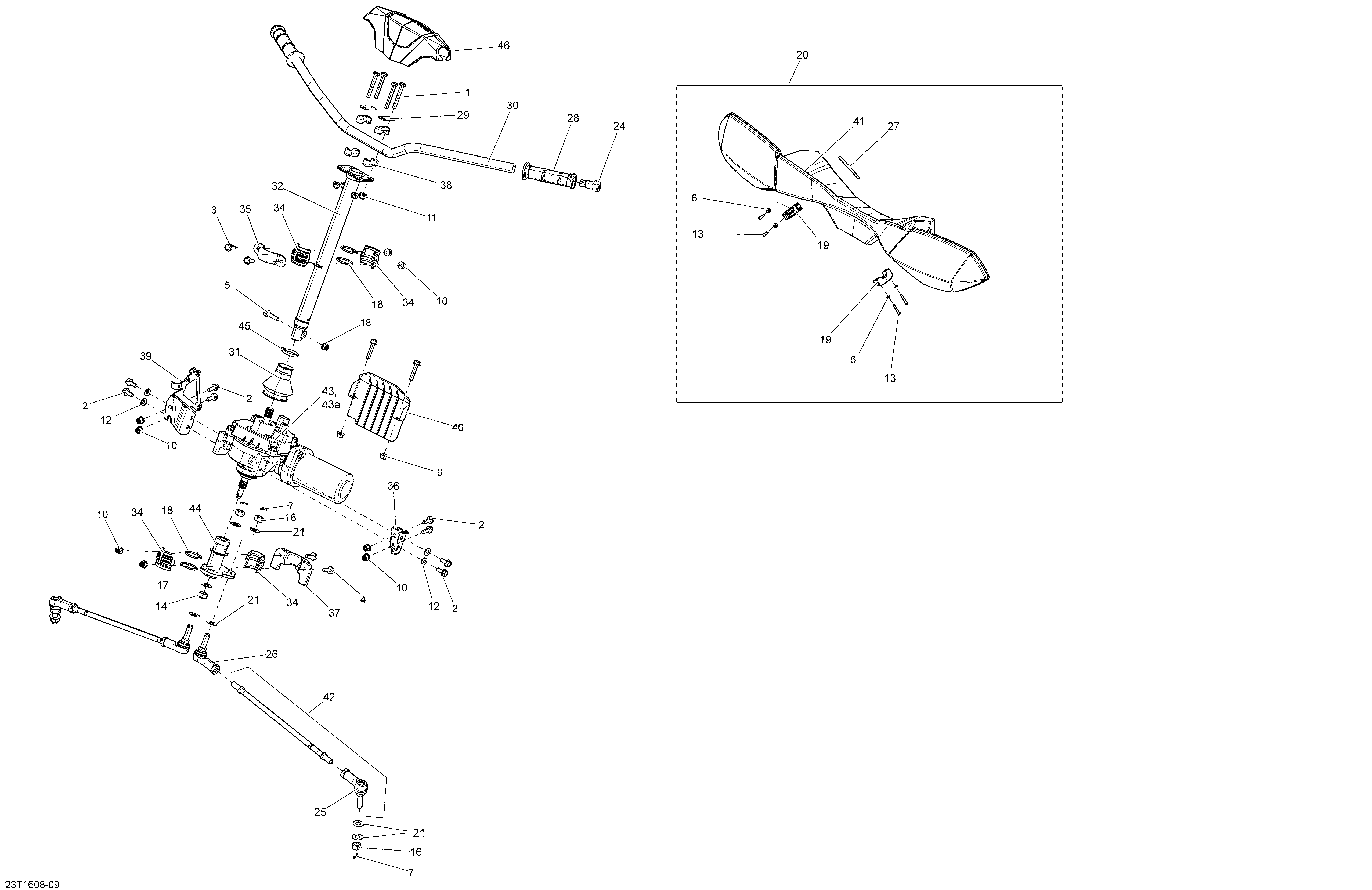

07- Steering для BRP Outlander 6X6 - 650 EFI - 2016
-
№АртикулНазвание
-
1207086046 Hex. Screw M8 X 60Hex. Screw M8 X 60
-
2207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
3207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
4207682544 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
5207683544 Hex. Flanged Screw M8 X 35Hex. Flanged Screw M8 X 35
-
6211200035 Flat WasherFlat Washer
-
7211400013 Cotter PinCotter Pin
-
9233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
10233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
11233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
12234281474 Conical Spring Washer M8Conical Spring Washer M8
-
13241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
-
14250000047 Hex. Flanged Elastic Nut M12Hex. Flanged Elastic Nut M12
-
16250100099 Nut M12Nut M12
-
17250200086 Flat WasherFlat Washer
-
18293300068 O-RingO-Ring
-
19517303264 U-ClampU-Clamp
-
20703100352 Handle Guard Ass'y, XT. Package XTHandle Guard Ass'y, XT. Package XT
-
21250200086 Flat WasherFlat Washer
-
24709400449 End PieceEnd Piece
-
25709400486 Ball Joint, LH ThreadsBall Joint, LH Threads
-
26709400490 Ball JointBall Joint
-
27704902966 DPS DecalDPS Decal
-
28709400493 Handle GripHandle Grip
-
29709400509 StiffnerStiffner
-
30709401240 Black Handle BarBlack Handle Bar
-
31709400674 BellowsBellows
-
32709400703 Noir Upper Main TubeNoir Upper Main Tube
-
34709400783 Spherical Half BushingSpherical Half Bushing
-
35709400827 Upper Column AttachmentUpper Column Attachment
-
36709400848 Power Steering Module BracketPower Steering Module Bracket
-
37709400912 Lower Column AttachmentLower Column Attachment
-
38709400919 Steering SupportSteering Support
-
39709400994 RH Steering BracketRH Steering Bracket
-
40709401005 Heat DeflectorHeat Deflector
-
41709400822 Handle Bar ProtectorHandle Bar Protector
-
42703500783 Tie-Rod Ass'yTie-Rod Ass'y
-
43709401182 Power SteeringPower Steering
-
43a709401573 Calibration Electronic Module DPSCalibration Electronic Module DPS
-
44709401320 Lower Steering Tube, BlackLower Steering Tube, Black
-
45293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
46709400939 Cover. Package DPSCover. Package DPS
