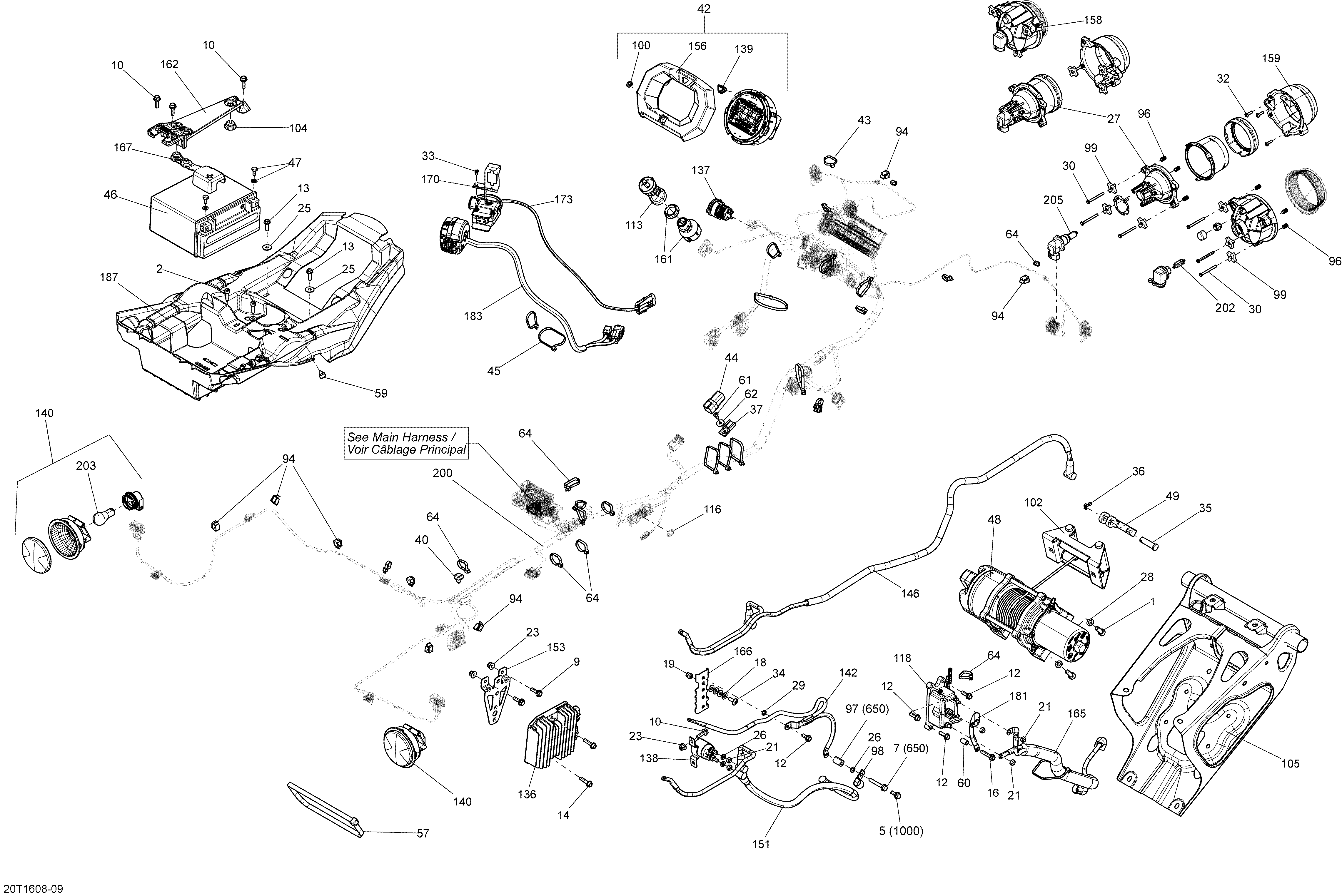

10- Electrical System для BRP Outlander 6X6 - 650 EFI - 2016
-
№АртикулНазвание
-
1205082044 Socket Head Screw M8 X 20Socket Head Screw M8 X 20
-
2205562044 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
5207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
7207663034 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
9207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
10207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
12210262040 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
13210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
14210262580 Hex. Flanged Forming Screw M6 X 25Hex. Flanged Forming Screw M6 X 25
-
16210264040 Hex Flanged Screw M6 X 40Hex Flanged Screw M6 X 40
-
18224061121 Flat WasherFlat Washer
-
18224061121 Flat WasherFlat Washer
-
19232361493 Domed Nut M6Domed Nut M6
-
21232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
21232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
21232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
23233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
25234062670 Flat WasherFlat Washer
-
26234161601 Lock Washer Helical M6Lock Washer Helical M6
-
27710002525 High Beam Ass'yHigh Beam Ass'y
-
28234181401 Lock Washer 8 mmLock Washer 8 mm
-
29234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
30250000718 Hex. Screw K40 X 45Hex. Screw K40 X 45
-
32250000723 Phillips Screw K40 X 16Phillips Screw K40 X 16
-
33250000153 Hex. Cap Screw 6-32 X 1/4''Hex. Cap Screw 6-32 X 1/4''
-
34250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
-
35250400021 Clevis PinClevis Pin
-
36250400022 Cotter PinCotter Pin
-
37270000141 ClipClip
-
40293730040 Mount DartMount Dart
-
42710003923 Speedometer Ass'ySpeedometer Ass'y
-
42a415129320 LensLens
-
43293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
44710003006 HousingHousing
-
45293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
46410301203 Lead Battery 18 AmperesLead Battery 18 Amperes
-
47250000282 Battery Bolt KitBattery Bolt Kit
-
48705008546 WinchWinch
-
49705002329 HookHook
-
57293750041 Tie-rap 627 mm. Model-North AmericaTie-rap 627 mm. Model-North America
-
59293830005 Rubber BumperRubber Bumper
-
60293900078 SleeveSleeve
-
61390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
62391301600 WasherWasher
-
64414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
94414227300 ClipClip
-
96517168600 SpringSpring
-
97517203200 Spacer. Model-650Spacer. Model-650
-
98518321570 Open ClampOpen Clamp
-
99572106600 HandleHandle
-
100704904615 BRP Logo, 13 mmBRP Logo, 13 mm
-
102715000011 Winch RollerWinch Roller
-
104705003666 Rubber GrommetRubber Grommet
-
105705004165 Front Bumper SupportFront Bumper Support
-
113710000817 Black-Electronic KeyBlack-Electronic Key
-
113710002183 Grey-Electronic KeyGrey-Electronic Key
-
116710000992 ClipClip
-
118710001000 Winch SolenoidWinch Solenoid
-
136710001191 Voltage RegulatorVoltage Regulator
-
137710001248 Outlet DCOutlet DC
-
138710001364 Starter RelayStarter Relay
-
139710001473 ButtonButton
-
140710001645 Tail Light. Model-OUTLANDERTail Light. Model-OUTLANDER
-
142710004183 Ground CableGround Cable
-
146710001748 Battery Positive CableBattery Positive Cable
-
151710001750 Positive CablePositive Cable
-
153710001752 Rectifier SupportRectifier Support
-
156710002092 Trim RingTrim Ring
-
158710002191 Low BeamLow Beam
-
159710002291 RH High Front HousingRH High Front Housing
-
159710002292 LH High Front HousingLH High Front Housing
-
161710003847 Ignition SwitchIgnition Switch
-
162710002404 Fixation PlateFixation Plate
-
165710002560 Winch CablesWinch Cables
-
166710004118 Connector BracketConnector Bracket
-
167710002569 CapCap
-
170710002631 Winch Interrupter SupportWinch Interrupter Support
-
173710002724 Winch InterrupterWinch Interrupter
-
181710003003 Negative HarnessNegative Harness
-
183710004617 Multi-Function Handle. Except T3Multi-Function Handle. Except T3
-
183710004040 Multi-Function Handle. T3Multi-Function Handle. T3
-
187710003990 Battery TrayBattery Tray
-
200710003626 Harness Ass'yHarness Ass'y
-
202715900141 Bulb 12V 55WBulb 12V 55W
-
203520000758 BulbBulb
-
205415129249 Halogen BulbHalogen Bulb
