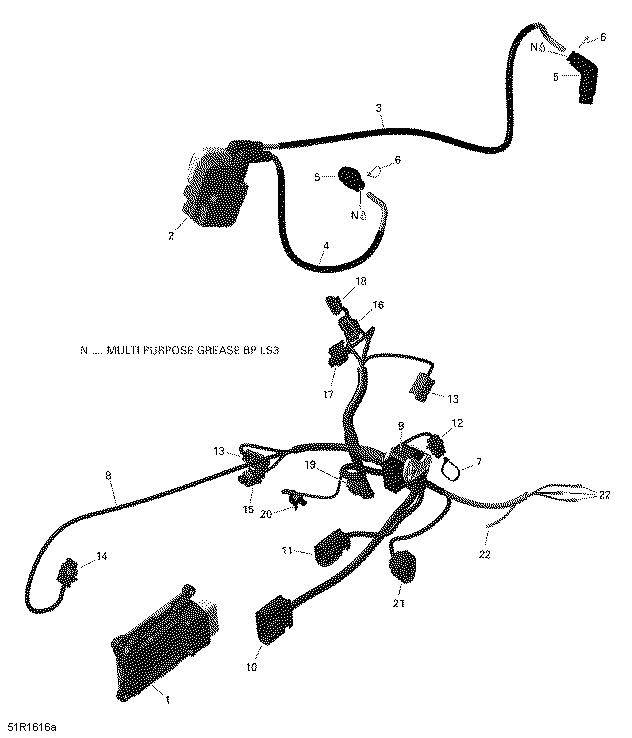

10- Engine Harness and Electronic Module - 650 EFI для BRP Outlander 6X6 - 650 EFI - 2016
-
№АртикулНазвание
-
1420464000 ECM, Engine Control Module. North America ModelECM, Engine Control Module. North America Model
-
1420464001 ECM, Engine Control Module. MAX North America ModelECM, Engine Control Module. MAX North America Model
-
1420464002 ECM, Engine Control Module. Europe ModelECM, Engine Control Module. Europe Model
-
1420464003 ECM, Engine Control Module. XMR PackageECM, Engine Control Module. XMR Package
-
2>2a278001546 Ignition CoilIgnition Coil
-
2a710000568 HousingHousing
-
3420665330 Spark Plug Cable, 610 mm, PTO SideSpark Plug Cable, 610 mm, PTO Side
-
4420664300 Spark Plug Cable, 365 mm, MAG SideSpark Plug Cable, 365 mm, MAG Side
-
5420265248 Spark Plug ConnectorSpark Plug Connector
-
6420866710 Tie RapTie Rap
-
7293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
8>23420666571 Engine Wiring HarnessEngine Wiring Harness
-
8>23420265950 Engine Wiring Harness. PRO PackageEngine Wiring Harness. PRO Package
-
8>23420264791 Engine Wiring Harness. XMR PackageEngine Wiring Harness. XMR Package
-
10710001227 HousingHousing
-
11710001927 HousingHousing
-
12278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
14278000997 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
15278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
16278001829 Housing Connector, 3 CircuitsHousing Connector, 3 Circuits
-
17515176410 Male ConnectorMale Connector
-
19278002378 Male HousingMale Housing
-
20278001012 Male Housing, 1 CircuitMale Housing, 1 Circuit
-
21710000329 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
22>23278001009 Female TerminalFemale Terminal
-
23278001007 Insulated SheathInsulated Sheath
