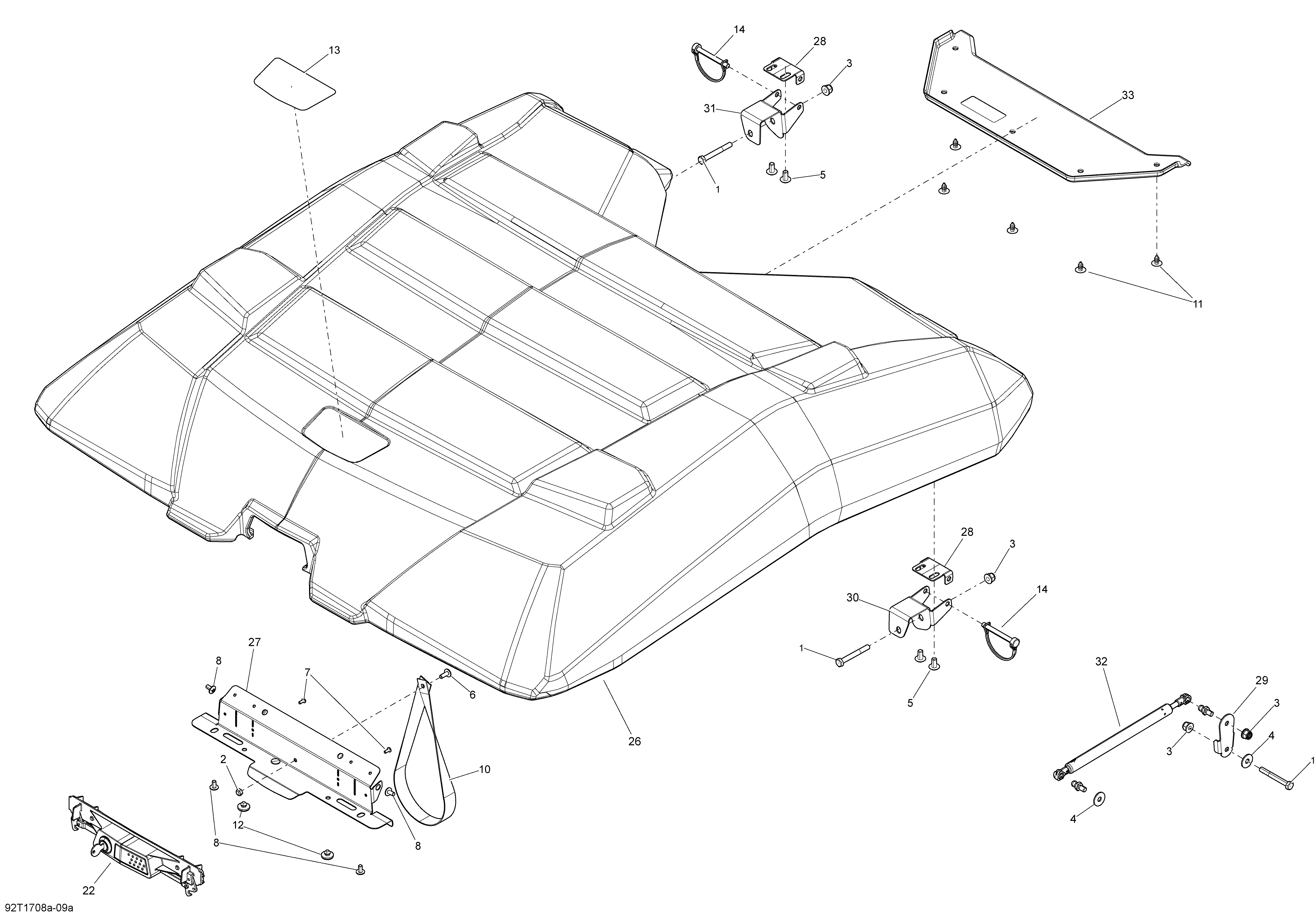

09- Cargo Hard Top для BRP Outlander 6X6 - 650 EFI - 2017
-
№АртикулНазвание
-
1207086544 Hex. Screw M8 x 65Hex. Screw M8 x 65
-
2232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
3233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
4234082410 Flat Washer 8 mmFlat Washer 8 mm
-
5250000198 Torx Truss Screw M8 X 16Torx Truss Screw M8 X 16
-
6250000223 Torx Screw M6 X 16Torx Screw M6 X 16
-
7250000666 Washer Head Hexagonal Screw K40 X 10Washer Head Hexagonal Screw K40 X 10
-
8250000804 Torx Screw M6 X 12Torx Screw M6 X 12
-
10293850119 Holding StrapHolding Strap
-
11414644300 DartDart
-
12605452114 PlugPlug
-
13704904235 Warning LabelWarning Label
-
14706001602 Pin Onto The ShaftPin Onto The Shaft
-
22708200249 Latch AssemblyLatch Assembly
-
26708301282 Large Hard TopLarge Hard Top
-
27708301283 Cover Lock SupportCover Lock Support
-
28708301284 Upper HingeUpper Hinge
-
29708301287 Side Bracket ShockSide Bracket Shock
-
30708301340 LH Lower Hinge Plate CornerLH Lower Hinge Plate Corner
-
31708301342 RH Lower Hinge Plate CornerRH Lower Hinge Plate Corner
-
32708301346 Gas ShockGas Shock
-
33708301509 Front Adapter PlateFront Adapter Plate
