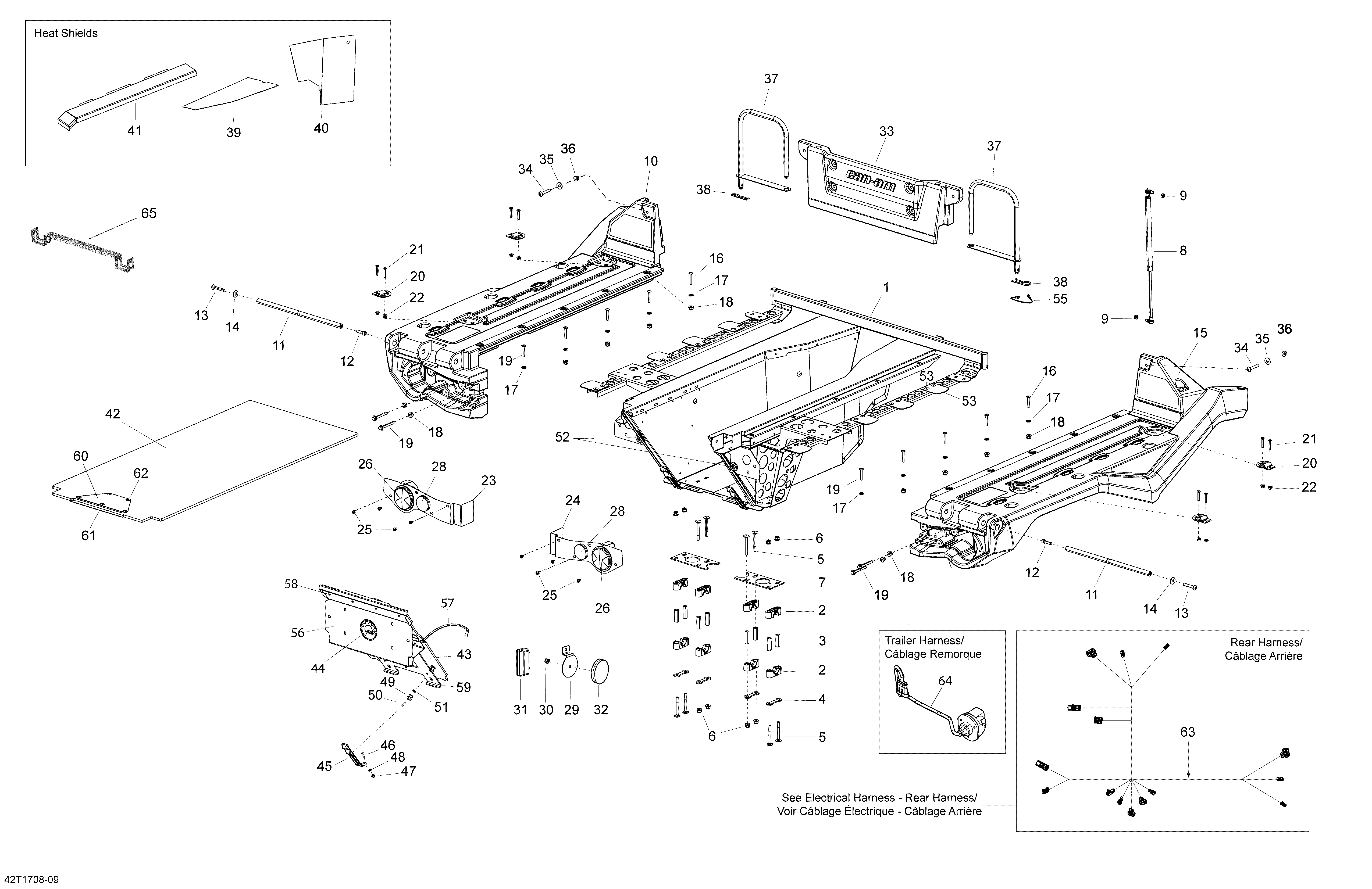

09- Rear Cargo Box для BRP Outlander 6X6 - 650 EFI - 2017
-
№АртикулНазвание
-
1605156657 Metal Platform PaintedMetal Platform Painted
-
2506150400 Housing HalfHousing Half
-
3506150500 Housing BushingHousing Bushing
-
4506150600 Stopper PlateStopper Plate
-
5207787044 Carriage Bolt M8 X 70Carriage Bolt M8 X 70
-
6233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
7705203836 Cargo Box Hinges Reinforcement PlateCargo Box Hinges Reinforcement Plate
-
8708301058 Cargo Box Gas ShockCargo Box Gas Shock
-
9232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
10708300931 Black Side Platform LH. Model-Black InternationalBlack Side Platform LH. Model-Black International
-
10715002788 Black Side Platform LH. Model-Black North AmericaBlack Side Platform LH. Model-Black North America
-
10708301473 Yellow Side Platform LH. Model-Yellow InternationalYellow Side Platform LH. Model-Yellow International
-
10715002790 Yellow Side Platform LH. Model-Yellow North AmericaYellow Side Platform LH. Model-Yellow North America
-
10708301475 Quarry Gray-Side Platform LH. Model-Gray InternationalQuarry Gray-Side Platform LH. Model-Gray International
-
10715002792 Quarry Gray-Side Platform LH. Model-Gray North AmericaQuarry Gray-Side Platform LH. Model-Gray North America
-
11708300935 Hinge AxisHinge Axis
-
12205083044 Socket Head Screw M8 X 30Socket Head Screw M8 X 30
-
13250000298 Torx Truss Screw M8 X 50Torx Truss Screw M8 X 50
-
14234082670 Flat Washer, StainlessFlat Washer, Stainless
-
15708300954 Black Side Platform RH. Model-Black InternationalBlack Side Platform RH. Model-Black International
-
15715002794 Black Side Platform RH. Model-Black North AmericaBlack Side Platform RH. Model-Black North America
-
15708301474 Yellow Side Platform RH. Model-Yellow InternationalYellow Side Platform RH. Model-Yellow International
-
15715002796 Yellow Side Platform RH. Model-Yellow North AmericaYellow Side Platform RH. Model-Yellow North America
-
15708301476 Quarry Gray-Side Platform RH. Model-Gray InternationalQuarry Gray-Side Platform RH. Model-Gray International
-
15715002798 Quarry Gray-Side Platform RH. Model-Gray North AmericaQuarry Gray-Side Platform RH. Model-Gray North America
-
16205484056 Torx Truss M/S M8 X 40Torx Truss M/S M8 X 40
-
17234081410 Flat Washer 8 mmFlat Washer 8 mm
-
18233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
19207686544 Hex. Flanged Screw, M8 X 65Hex. Flanged Screw, M8 X 65
-
20708301189 Retaining HookRetaining Hook
-
21205363586 Socket Screw M6 X 35Socket Screw M6 X 35
-
22233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
23708301274 LH Tail Light Plate. Model-InternationalLH Tail Light Plate. Model-International
-
24708301275 RH Tail Light Plate. Model-InternationalRH Tail Light Plate. Model-International
-
25205461060 Socket Head Screw M6 X 10Socket Head Screw M6 X 10
-
26710001645 Tail LightTail Light
-
28705002408 Red ReflectorRed Reflector
-
29708301538 LH Reflector SupportLH Reflector Support
-
29708301539 RH Reflector SupportRH Reflector Support
-
30233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
31710002055 License LightLicense Light
-
32705002408 Red Reflector. Model-InternationalRed Reflector. Model-International
-
33708301187 Front Panel ShortFront Panel Short
-
34250000298 Torx Truss Screw M8 X 50Torx Truss Screw M8 X 50
-
35234082670 Flat Washer, StainlessFlat Washer, Stainless
-
36233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
37708300939 Locking Handle WeldLocking Handle Weld
-
3841029 Hair pinHair pin
-
39708301336 Bed Heat Shield On TopBed Heat Shield On Top
-
40708301337 Bed Heat Shield On SideBed Heat Shield On Side
-
41708301338 Side Heat ShieldSide Heat Shield
-
42708300959 Middle DeckMiddle Deck
-
43708300964 Lower TailgateLower Tailgate
-
44219902672 Logo BRP, 68 mmLogo BRP, 68 mm
-
455342952 Hood LatchHood Latch
-
46207142544 Hex. Screw M4 X 25Hex. Screw M4 X 25
-
47232541484 Elastic Stop Nut M4Elastic Stop Nut M4
-
4820037 WasherWasher
-
49605449087 Counter RollerCounter Roller
-
50293150212 RivetRivet
-
51517124300 WasherWasher
-
52517303756 GrommetGrommet
-
53708301095 Linq Hole FillerLinq Hole Filler
-
55293750069 Retainer CableRetainer Cable
-
56708300965 Register Plate SupportRegister Plate Support
-
57708301213 Limiter RailLimiter Rail
-
58293150144 Stavex RivetStavex Rivet
-
59708301261 Limiter HookLimiter Hook
-
60708301262 Filler Plate. Except North AmericaFiller Plate. Except North America
-
60715002810 Filler Plate. North AmericaFiller Plate. North America
-
61708301263 Handle PlateHandle Plate
-
62293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
63515177565 Rear Light HarnessRear Light Harness
-
64515177667 Trailer HarnessTrailer Harness
-
65705204877 Plate SupportPlate Support
