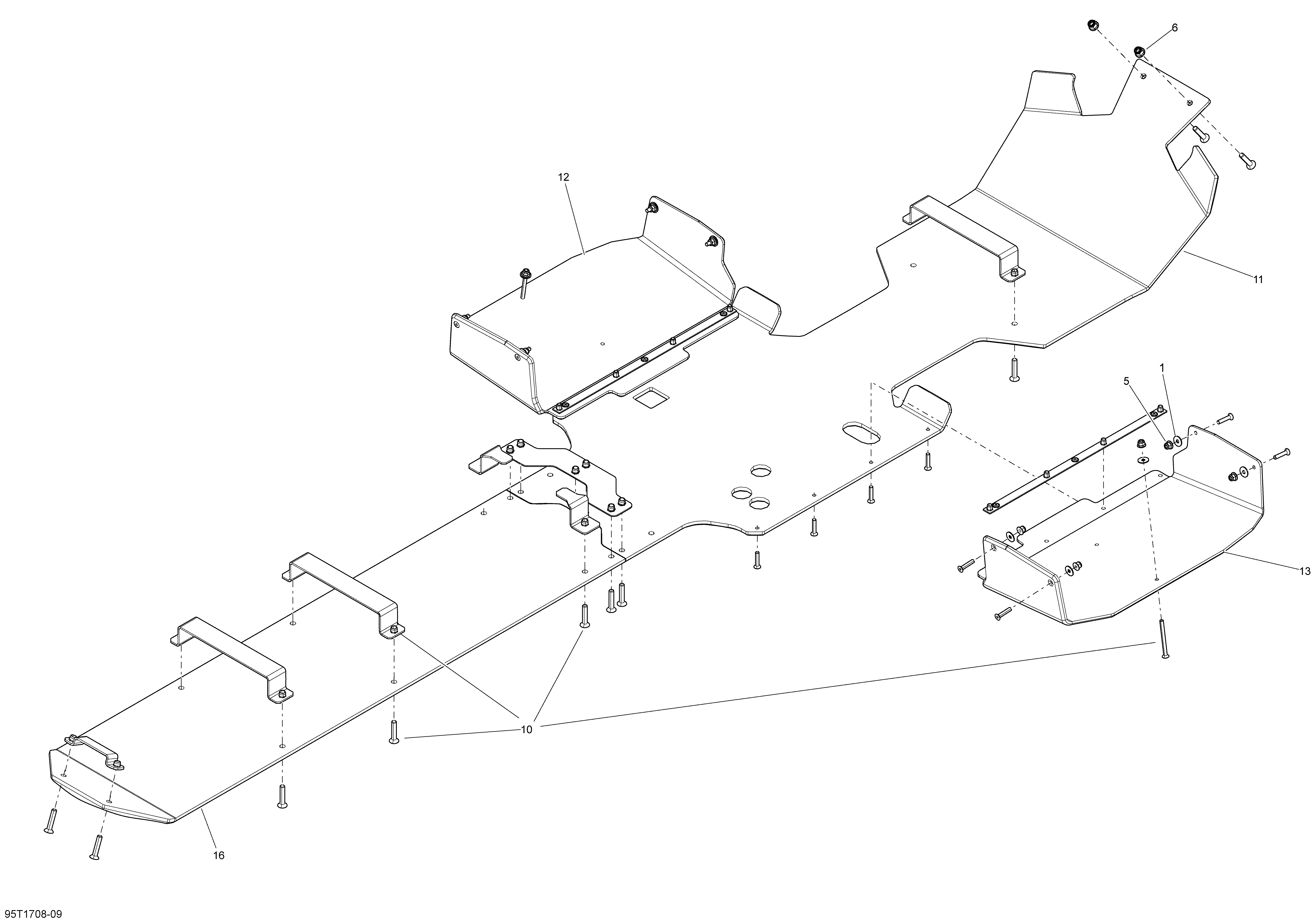

09- Farmer Skid Plate для BRP Outlander 6X6 - 650 EFI - 2017
-
№АртикулНазвание
-
120117 WasherWasher
-
5233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
6233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
10502007310 Skid Plate Fastening Parts Kit 6X6Skid Plate Fastening Parts Kit 6X6
-
11502007448 Front Skid Plate 6X6Front Skid Plate 6X6
-
12502007452 LH Footrest Skid Plate 6X6LH Footrest Skid Plate 6X6
-
13502007453 RH Footrest Skid Plate 6X6RH Footrest Skid Plate 6X6
-
16502007461 Rear Skid Plate 6X6Rear Skid Plate 6X6
-
17715002485 Skid Plate Kit. Include 1 to 16. North AmericaSkid Plate Kit. Include 1 to 16. North America
