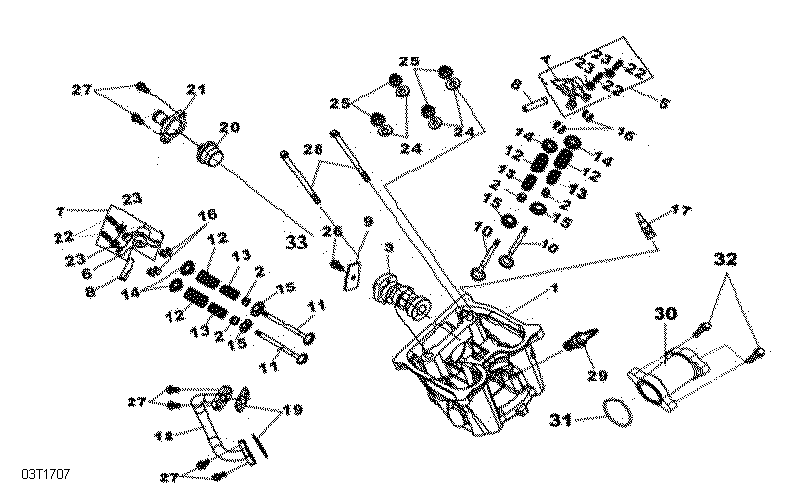

01- Cylinder Head North America для BRP 4- DS 250 - 2018
-
№АртикулНазвание
-
1S12200RB1000 Cylinder Head Ass'yCylinder Head Ass'y
-
2S12209H6B900 Valve Stem Seal CapValve Stem Seal Cap
-
3S14100RB1000 Cam ShaftCam Shaft
-
4S14431RFA000 Rocker IntakeRocker Intake
-
5S1443ARFA000 Intake Valve Rocker Arm Ass'yIntake Valve Rocker Arm Ass'y
-
6S14441RFA000 Rocker ExhaustRocker Exhaust
-
7S1444ARFA000 Exhaust Valve Rocker Arm Ass'yExhaust Valve Rocker Arm Ass'y
-
8S14451HMA000 Rocker Arm ShaftRocker Arm Shaft
-
9S14457HMA000 Cam Shaft Setting PlateCam Shaft Setting Plate
-
10S14711HMA000 Intake ValveIntake Valve
-
11S14721RFS000 Exhaust ValveExhaust Valve
-
12S14751HMA000 Valve Outer SpringValve Outer Spring
-
13S14761HMA000 Valve Inner SpringValve Inner Spring
-
14S14771M8Q000 Valve Spring RetainerValve Spring Retainer
-
15S14777KN7670 Valve Spring SeatValve Spring Seat
-
16S14781M9Q000 Valve CotterValve Cotter
-
17S37750PC1004 Temperature SensorTemperature Sensor
-
18S18647RB1000 Air Pipe Ass'yAir Pipe Ass'y
-
19S18654N14000 Air Pipe GasketAir Pipe Gasket
-
20S19300HMA000 ThermostatThermostat
-
21S19315KJ9000 Thermostat CoverThermostat Cover
-
22S90012HLK000 Adjusting ScrewAdjusting Screw
-
23S90206HLK000 Adjusting NutAdjusting Nut
-
24S90442RFS000 Sealing Washer 10.5 mmSealing Washer 10.5 mm
-
25S9405010080 Flanged Nut 10 mmFlanged Nut 10 mm
-
26S960010601408 Flanged Bolt M6 X 14Flanged Bolt M6 X 14
-
27S960010601600 Flanged Bolt M6 X 16Flanged Bolt M6 X 16
-
28S960010609000 Flanged Bolt M6 X 90Flanged Bolt M6 X 90
-
29707000306 Spark Plug NGK CR8ESpark Plug NGK CR8E
-
32S960010602500 Flanged Bolt M6 X 22Flanged Bolt M6 X 22
