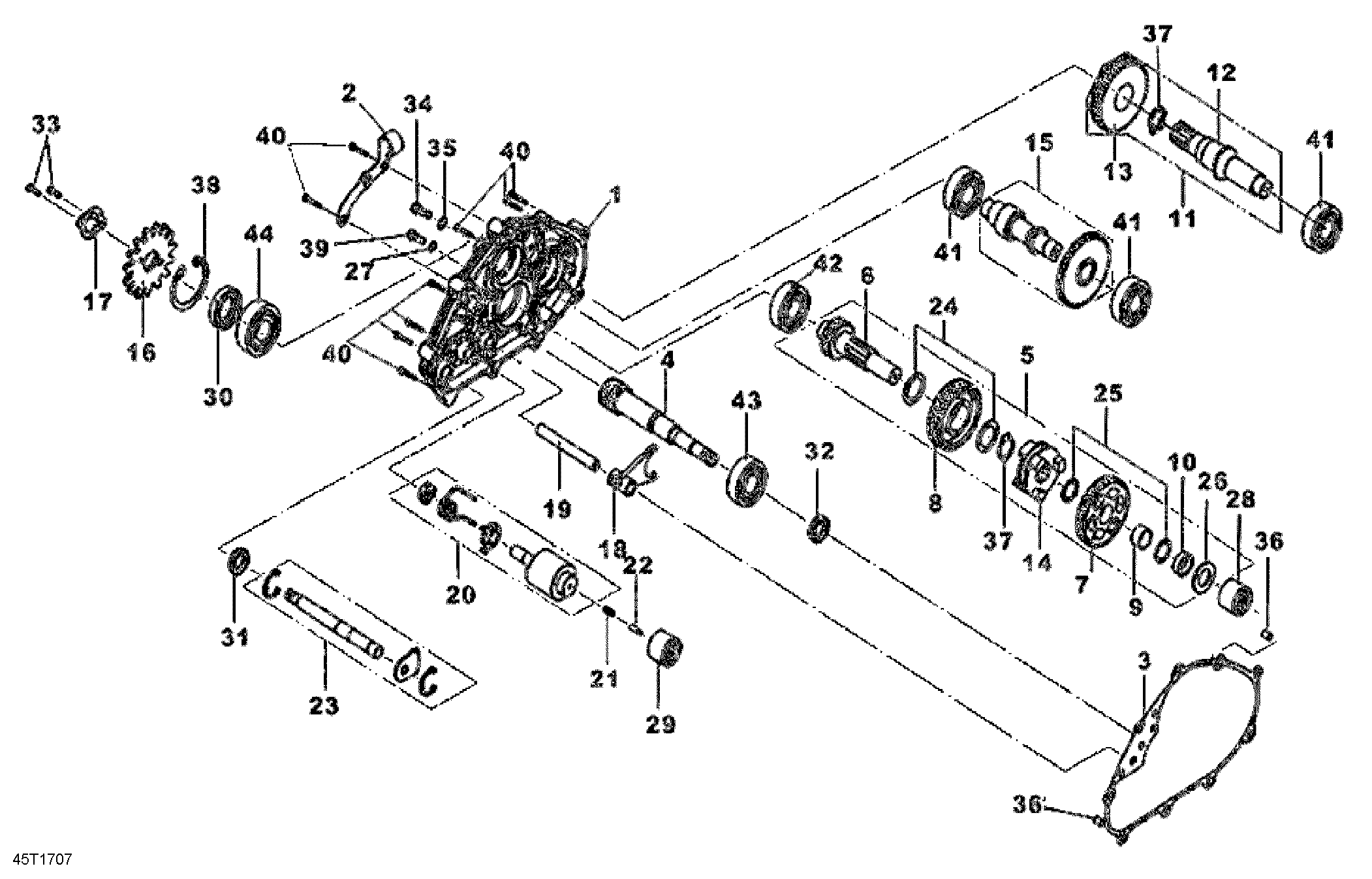

05- Gear Box для BRP 4- DS 250 - 2018
-
№АртикулНазвание
-
1S21200RB1010 Transmission CaseTransmission Case
-
2S21201RB1000 Inner Cover StayInner Cover Stay
-
3S21395RB1000 Cover Transmission GasketCover Transmission Gasket
-
4S23411RB1000 Drive ShaftDrive Shaft
-
5S23420RB1000 Counter Shaft Ass'yCounter Shaft Ass'y
-
11S23430RCA010 Final Shaft Ass'yFinal Shaft Ass'y
-
15S23500RB1000 Reverse Shaft Ass'yReverse Shaft Ass'y
-
16S23800RB1000 Drive SprocketDrive Sprocket
-
17S23801RB1000 Drive Sprocket Fixing PlateDrive Sprocket Fixing Plate
-
18S24211RB1000 Shift ForkShift Fork
-
19S24241RB1000 Shift Fork ShaftShift Fork Shaft
-
20S24300RB1000 Shift Drum Ass'yShift Drum Ass'y
-
21S24319R02000 Gear Indication SpgGear Indication Spg
-
22S24323R02000 Gear IndicationGear Indication
-
23S24610RB1000 Gear Shift Spindle Ass'yGear Shift Spindle Ass'y
-
27S90474M9Q000 WasherWasher
-
28S91003RB1000 Needle BearingNeedle Bearing
-
29S91103X17000 Needle BearingNeedle Bearing
-
30S91209RCA0000 Oil SealOil Seal
-
31S91202RB1000 Oil SealOil Seal
-
32S91204HMA000 Oil SealOil Seal
-
33S92101060100H Hex. BoltHex. Bolt
-
34S9280012000 Drain Plug ScrewDrain Plug Screw
-
35S9410912000 Washer 12 mmWasher 12 mm
-
36S9430110140 Dowel PinDowel Pin
-
38S9452052000 CirclipCirclip
-
39S957010801200 Flanged Bolt M8 X 12Flanged Bolt M8 X 12
-
40S957010804000 Flanged Bolt M8 X 40Flanged Bolt M8 X 40
-
41S961006204010 Ball BearingBall Bearing
-
42S961006304010 Ball BearingBall Bearing
-
43S961006305300 Ball BearingBall Bearing
-
44S961506205000 Ball BearingBall Bearing
