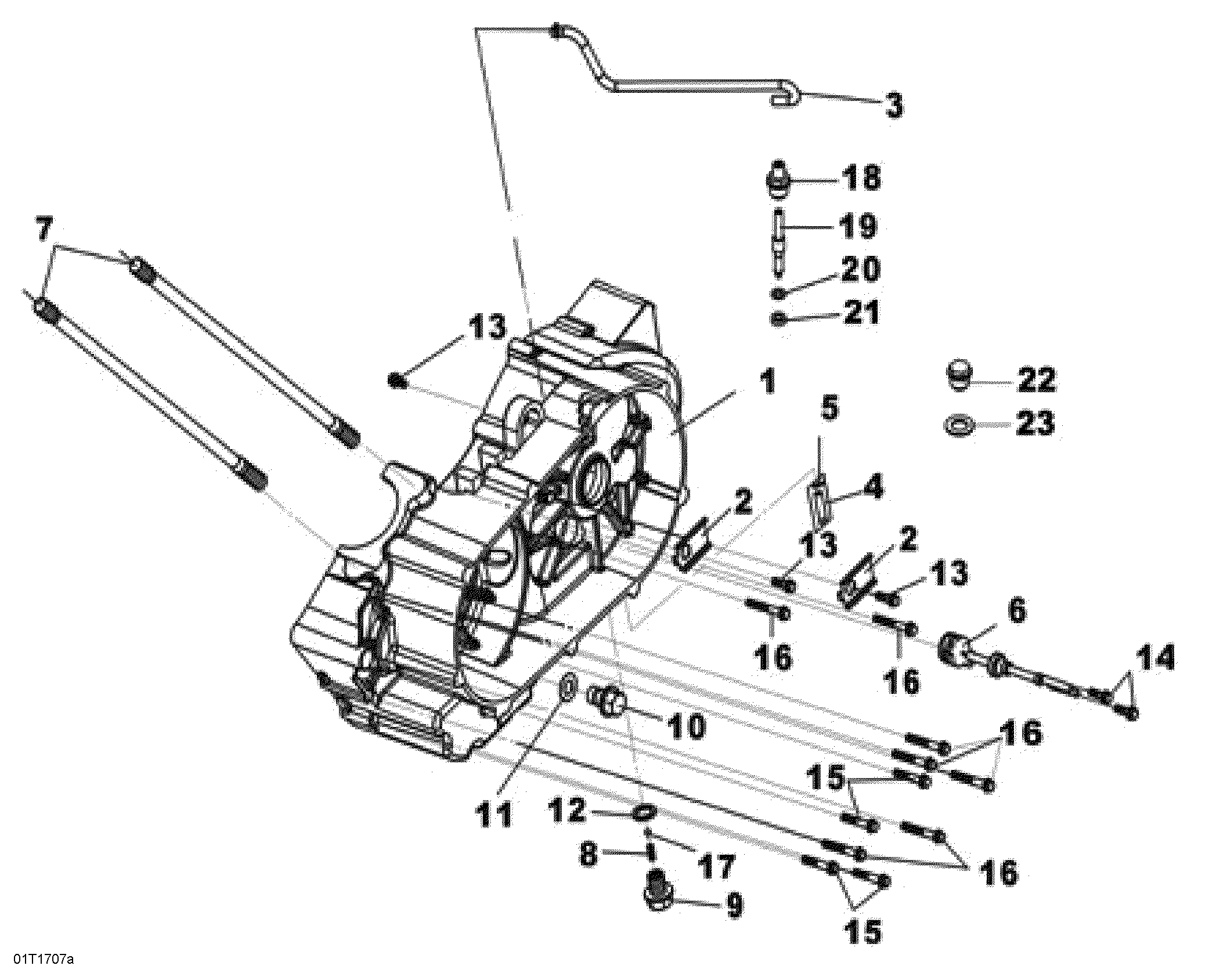

01- Left Crankcase Half для BRP 4- DS 250 - 2018
-
№АртикулНазвание
-
1S11200RB1000 LH Crankcase Ass'yLH Crankcase Ass'y
-
2S11205RB1000 Setting PlateSetting Plate
-
3S11221RB1000 Breather HoseBreather Hose
-
4S11230RA1000 Drain Tube Ass'yDrain Tube Ass'y
-
6S35759RB1020 Change Sw Ass'yChange Sw Ass'y
-
7S90032HMA000 Cylinder StudCylinder Stud
-
8S90051RB1000 Spring Fixed CatchSpring Fixed Catch
-
9S90052RB1000 Drain Plug ScrewDrain Plug Screw
-
10S9280012000 Drain Plug ScrewDrain Plug Screw
-
11S9410912000 Washer 12 mmWasher 12 mm
-
12S9410914000 Drain Plug Screw Washer 14 mmDrain Plug Screw Washer 14 mm
-
13S960010601200 Flanged Hex. Screw M6 X 12Flanged Hex. Screw M6 X 12
-
14S960010601800 Flanged Hex. Screw M6 X 18Flanged Hex. Screw M6 X 18
-
15S960010605000 Flanged Hex. Screw M6 X 50Flanged Hex. Screw M6 X 50
-
16S960010607000 Flanged Hex. Screw M6 X 70Flanged Hex. Screw M6 X 70
-
17S9621112000 Steel BallSteel Ball
-
18S23434RCA000 Gear Fixing Bolt. EuropeGear Fixing Bolt. Europe
-
19S23433RCA000 Meter Gear. EuropeMeter Gear. Europe
-
20S23435RCA000 Thrust Washer. EuropeThrust Washer. Europe
-
21S91201RCA000 Oil Seal. EuropeOil Seal. Europe
-
22S11206RB1000 Sealing Bolt. North America, InternationalSealing Bolt. North America, International
-
23S90403RB1000 Sealing Washer. North America, InternationalSealing Washer. North America, International
