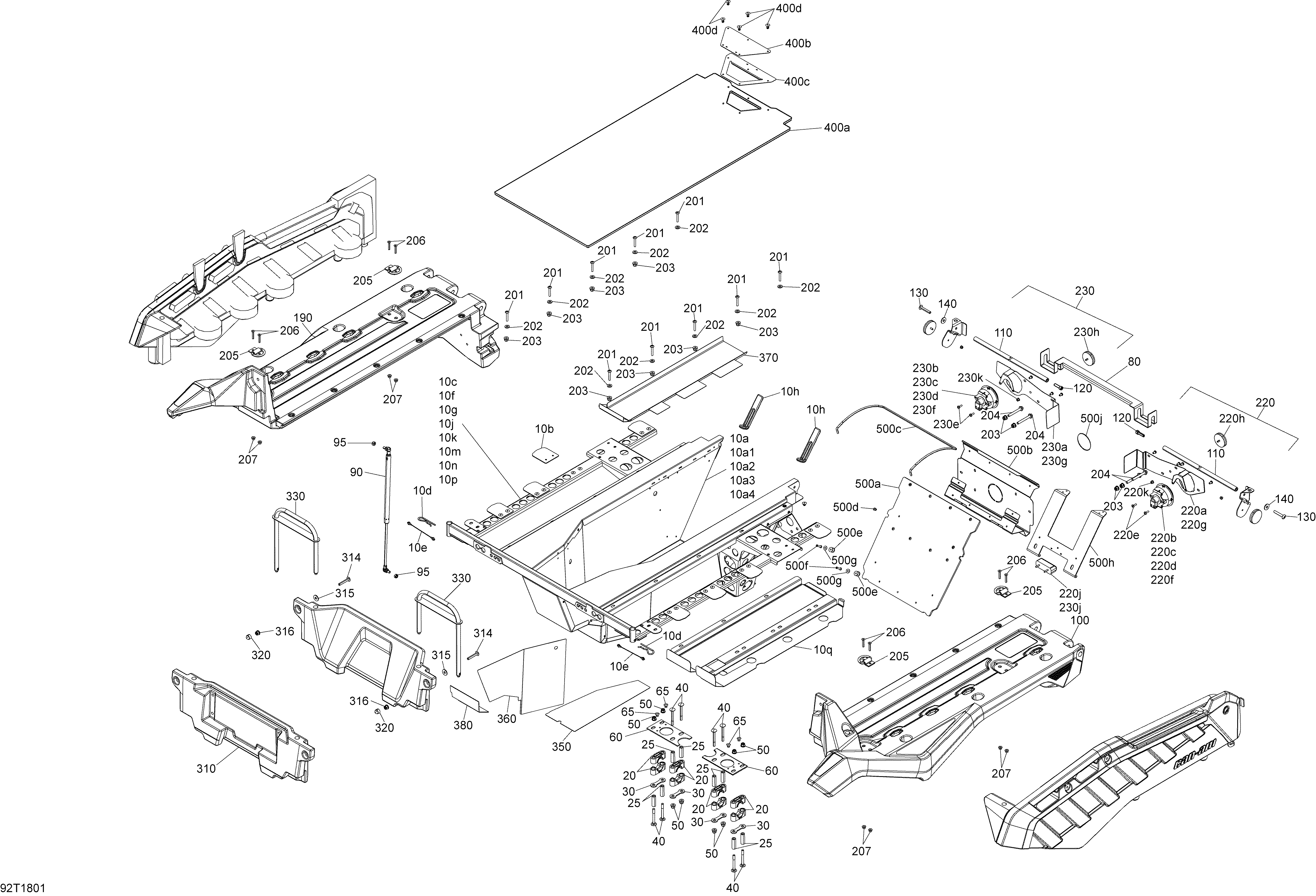

09- Cargo для BRP 3- Outlander MAX 6X6 - 650 EFI - T3 - 2018
-
№АртикулНазвание
-
10a708301728 Metal Platform Paint. Includes 10a to 10a4Metal Platform Paint. Includes 10a to 10a4
-
10a1605636002 Clinch Nut Hexsert M8Clinch Nut Hexsert M8
-
10a236108 RivetRivet
-
10a3390909100 Avex RivetAvex Rivet
-
10a4390909200 Avex RivetAvex Rivet
-
10b708301095 Linq Hole FillerLinq Hole Filler
-
10c293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
10d505073670 Spring CotterSpring Cotter
-
10e293750069 Retainer CableRetainer Cable
-
10f293150144 Stavex RivetStavex Rivet
-
10g20008 Washer 5,3 mmWasher 5,3 mm
-
10h5342952 Hood LatchHood Latch
-
10j234042410 Washer-flat Din.9021b YicWasher-flat Din.9021b Yic
-
10k207142544 Hex. Screw M4 X 25Hex. Screw M4 X 25
-
10m232541484 Elastic Stop Nut M4Elastic Stop Nut M4
-
10n414644300 DartDart
-
10p390909100 Avex RivetAvex Rivet
-
10q707601725 Upper Heat Shield WideUpper Heat Shield Wide
-
20506150400 Housing HalfHousing Half
-
25506150500 Housing BushingHousing Bushing
-
30506150600 Stopper PlateStopper Plate
-
40207787044 Carriage Bolt M8 X 70Carriage Bolt M8 X 70
-
50233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
60705203836 Cargo Box Hinges Reinforcement PlateCargo Box Hinges Reinforcement Plate
-
65293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
90708301058 Cargo Box Gas ShockCargo Box Gas Shock
-
95232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
100708302076 Black, LH Side PlatformBlack, LH Side Platform
-
110708300935 Hinge AxisHinge Axis
-
120205083044 Socket Head Screw M8 X 30Socket Head Screw M8 X 30
-
130250000761 Torx Truss Screw M8 X 50Torx Truss Screw M8 X 50
-
140234082670 Flat Washer, StainlessFlat Washer, Stainless
-
190708302077 Black, RH Side PlatformBlack, RH Side Platform
-
201205484056 Torx Truss M/S M8 X 40Torx Truss M/S M8 X 40
-
202503192494 WasherWasher
-
203233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
204207686544 Hex. Flanged Screw, M8 X 65Hex. Flanged Screw, M8 X 65
-
205708301189 Retaining HookRetaining Hook
-
206205363586 Socket Screw M6 X 35Socket Screw M6 X 35
-
207233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
220710002055 License Light. Includes 220 to 220kLicense Light. Includes 220 to 220k
-
220a605356527 LH Tail Light PlateLH Tail Light Plate
-
220b520000758 BulbBulb
-
220c219800128 BulbBulb
-
220d710001645 Tail LightTail Light
-
220e250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
220f710002964 FlasherFlasher
-
220g207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
220h705011221 Red ReflectorRed Reflector
-
220j710002055 License LightLicense Light
-
220k233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
230710002055 License Light. Includes 230 to 230kLicense Light. Includes 230 to 230k
-
230a605356528 RH Tail Light PlateRH Tail Light Plate
-
230b520000758 BulbBulb
-
230c219800128 BulbBulb
-
230d710001645 Tail LightTail Light
-
230e250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
230f710002964 FlasherFlasher
-
230g207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
230h705011221 Red ReflectorRed Reflector
-
230j710002055 License LightLicense Light
-
230k233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
310708302082 Black Front Panel MaxBlack Front Panel Max
-
314250000761 Torx Truss Screw M8 X 50Torx Truss Screw M8 X 50
-
315234082670 Flat Washer, StainlessFlat Washer, Stainless
-
316233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
32028056 CoverCover
-
330708300939 Locking Handle WeldLocking Handle Weld
-
350708301336 Bed Heat Shield On TopBed Heat Shield On Top
-
360708301337 Bed Heat Shield On SideBed Heat Shield On Side
-
370708301338 Side Heat ShieldSide Heat Shield
-
380708302168 Heat ShieldHeat Shield
-
400a708300959 Middle DeckMiddle Deck
-
400b708301262 Filler PlateFiller Plate
-
400c708301263 Handle PlateHandle Plate
-
400d293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
500a708300964 Lower TailgateLower Tailgate
-
500b708301942 Register Plate SupportRegister Plate Support
-
500c708301213 Limiter RailLimiter Rail
-
500d293150144 Stavex RivetStavex Rivet
-
500e605449087 Counter RollerCounter Roller
-
500f293150212 RivetRivet
-
500g708301695 PlatePlate
-
500h708301261 Limiter HookLimiter Hook
-
500j219902672 Logo BRP, 68 mmLogo BRP, 68 mm
