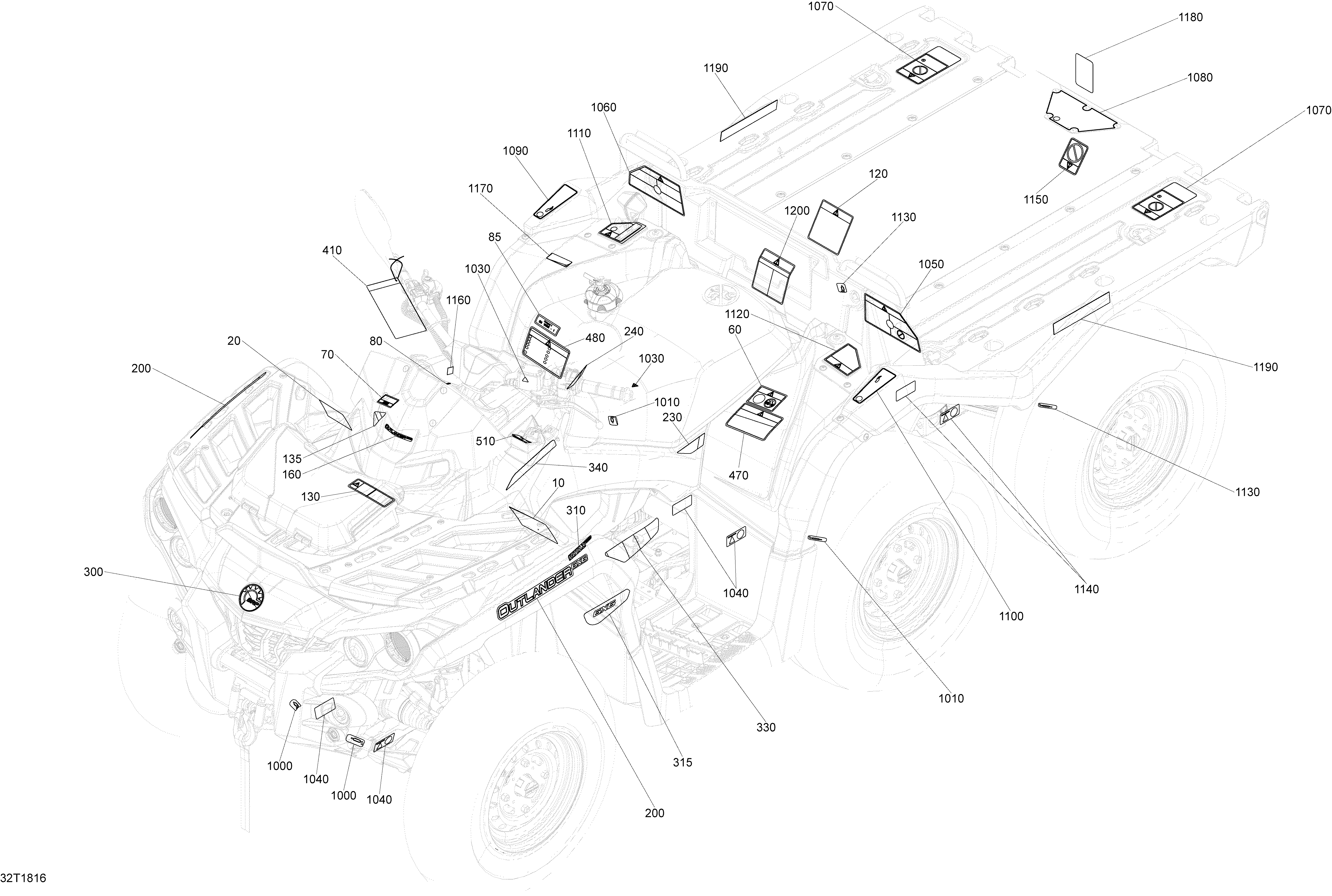

09- Decals для BRP 3- Outlander MAX 6X6 - 650 EFI - T3 - 2018
-
№АртикулНазвание
-
10704906099 Warning LabelWarning Label
-
20704905679 Warning Decal Over 16Warning Decal Over 16
-
60704906104 Warning LabelWarning Label
-
70704905695 Warning Decal, Shifting LeverWarning Decal, Shifting Lever
-
80704906894 Parking Brake DecalParking Brake Decal
-
85704906301 Warning Decal, Cat. 1Warning Decal, Cat. 1
-
120704905701 Warning Decal, Seat PassengerWarning Decal, Seat Passenger
-
130704906105 Warning LabelWarning Label
-
135704905706 Warning Decal, Hot LiquidWarning Decal, Hot Liquid
-
160704906000 Console DecalConsole Decal
-
200704906767 Outlander 6x6 DecalOutlander 6x6 Decal
-
230704906022 LH Pro Max DecalLH Pro Max Decal
-
240704906023 RH Pro Max DecalRH Pro Max Decal
-
300516008739 Logo BRPLogo BRP
-
310704905746 Rotax Power DecalRotax Power Decal
-
315704906120 .ecal Cvt 6 X 6 Visco-lok.ecal Cvt 6 X 6 Visco-lok
-
330704906034 LH 650 Engine DecalLH 650 Engine Decal
-
340704906035 RH 650 Engine DecalRH 650 Engine Decal
-
470704907111 Warning Decal, Road UseWarning Decal, Road Use
-
480704905720 Decal, MutltilingualDecal, Mutltilingual
-
510704906243 Decal DESS KeyDecal DESS Key
-
1000704906895 Decal Front Grease FittingDecal Front Grease Fitting
-
1010704906896 Decal Rear Grease FittingDecal Rear Grease Fitting
-
1030704906395 Brake Liquid DecalBrake Liquid Decal
-
1040704907067 Decal Support PointDecal Support Point
-
1050704904226 Warning LabelWarning Label
-
1060704904227 Warning LabelWarning Label
-
1070704904228 Warning LabelWarning Label
-
1080704904229 Instruction LabelInstruction Label
-
1090704904230 Instruction LabelInstruction Label
-
1100704904231 Instruction LabelInstruction Label
-
1110704904234 Warning LabelWarning Label
-
1120704904236 Warning LabelWarning Label
-
1130704906896 Decal Rear Grease FittingDecal Rear Grease Fitting
-
1140704907067 Decal Support PointDecal Support Point
-
1150704904368 Warning LabelWarning Label
-
1160605356244 P-Decal, T3P-Decal, T3
-
1170605456594 Cabin Decal, T3Cabin Decal, T3
-
1180704904233 Warning Label. All Except Package FlatBedWarning Label. All Except Package FlatBed
-
1200704905701 Warning Decal, Seat Passenger. Outlander MaxWarning Decal, Seat Passenger. Outlander Max
