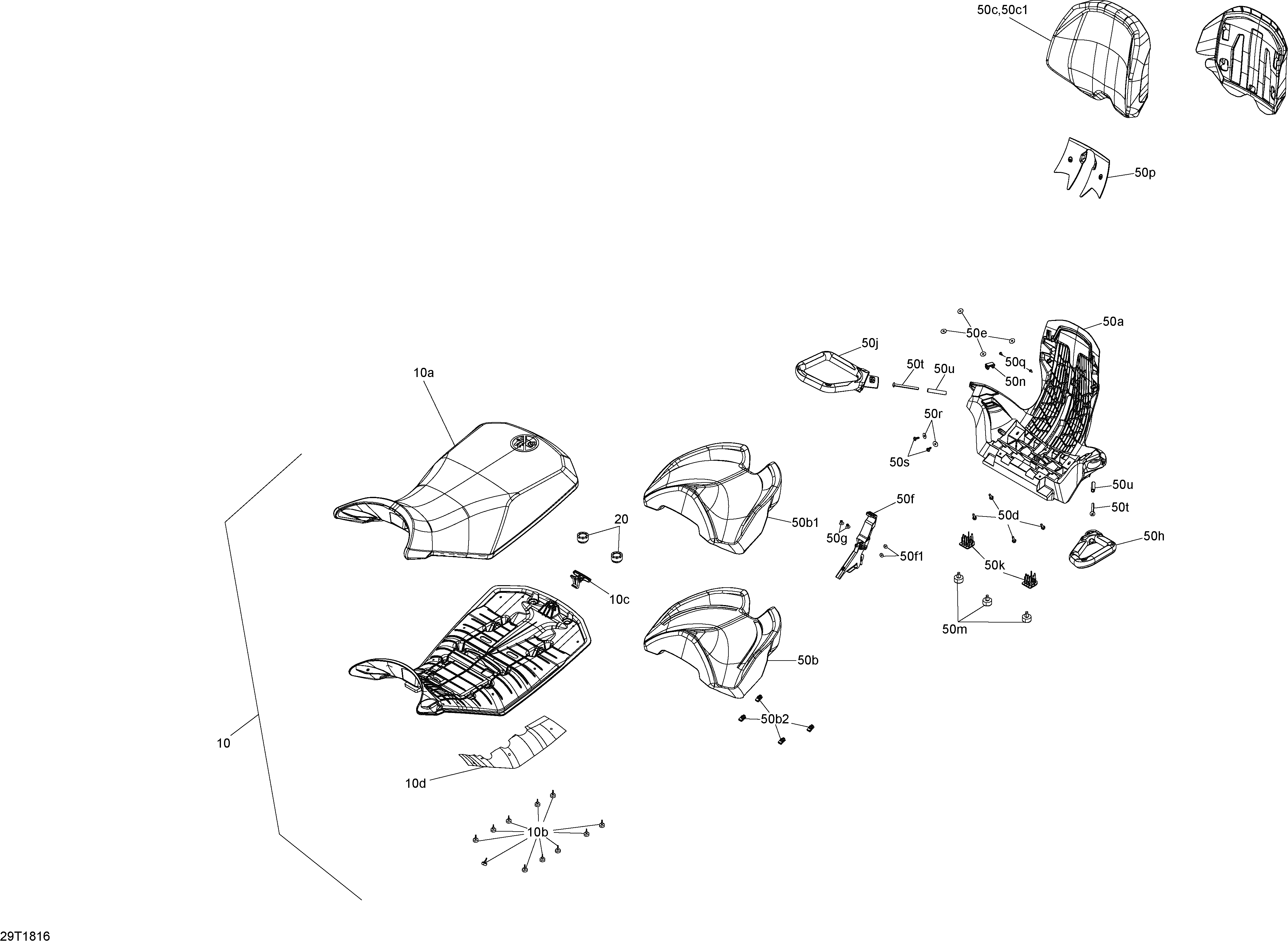

09- Seat для BRP 3- Outlander MAX 6X6 - 650 EFI - T3 - 2018
-
№АртикулНазвание
-
10708002491 Seat Ass'y. Includes 10 to 10dSeat Ass'y. Includes 10 to 10d
-
10a708000724 Black Seat CoverBlack Seat Cover
-
10b708000759 Rubber StopperRubber Stopper
-
10c708000909 LatchLatch
-
10d705005761 Heat ShieldHeat Shield
-
20708000760 Bumper RubberBumper Rubber
-
50a708002574 Seat BaseSeat Base
-
50b708002086 Seat. Includes 50b to 50b2Seat. Includes 50b to 50b2
-
50b1708001581 Passenger Seat CoverPassenger Seat Cover
-
50b2250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
50c708002081 Backrest. Includes 50c to 50c1Backrest. Includes 50c to 50c1
-
50c1708001847 Back Rest CoverBack Rest Cover
-
50d207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
50e708001532 Latch. Includes 50e to 50e1Latch. Includes 50e to 50e1
-
50e1234051410 Flat Washer M5Flat Washer M5
-
50g293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
50h703500806 LH Passenger Seat Handle Kit. Includes 50h to 50h2LH Passenger Seat Handle Kit. Includes 50h to 50h2
-
50j703500807 RH Passenger Seat Handle Kit. Includes 50j to 50j2RH Passenger Seat Handle Kit. Includes 50j to 50j2
-
50h1250000617 Torx Screw M8 X 90. Not ShownTorx Screw M8 X 90. Not Shown
-
50j1250000617 Torx Screw M8 X 90. Not ShownTorx Screw M8 X 90. Not Shown
-
50h2705006129 Sleeve. Not ShownSleeve. Not Shown
-
50j2705006129 Sleeve. Not ShownSleeve. Not Shown
-
50k708001483 Seat SupportSeat Support
-
50m708000758 Rubber StopperRubber Stopper
-
50n708001511 InsertInsert
-
50p708001512 CapCap
-
50q250000577 Torx Truss K40 X 12Torx Truss K40 X 12
-
50r224060201 Flat WasherFlat Washer
-
50s250000546 Oval Head Torx Screw K60 X 16Oval Head Torx Screw K60 X 16
-
50t250000806 Torx Truss M8 X 90Torx Truss M8 X 90
-
50u705009248 SleeveSleeve
-
50v710003910 Pilot Lamp Cap. Not ShownPilot Lamp Cap. Not Shown
