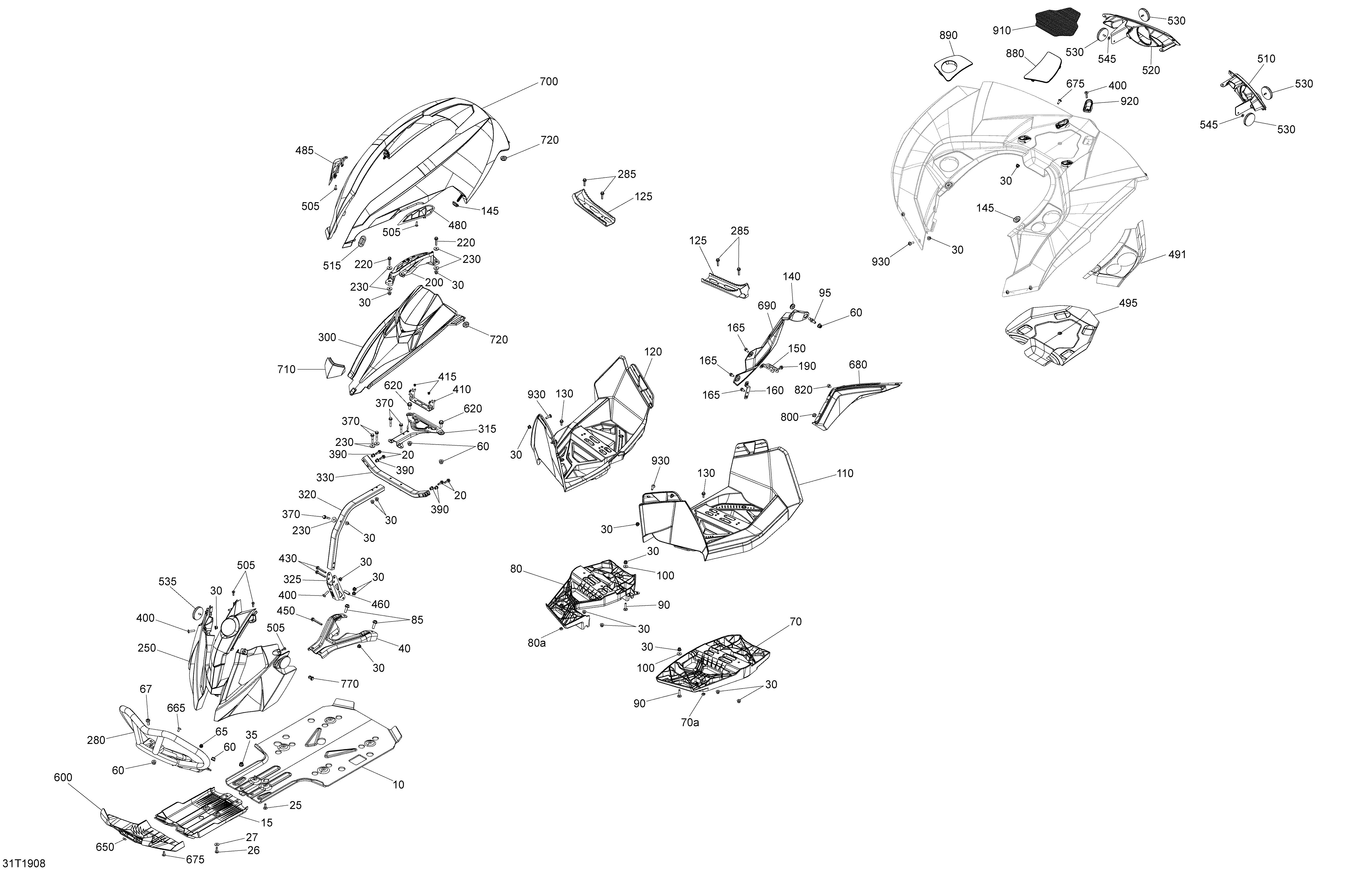

09- Body And Accessories - STD для BRP 001 - Renegade 570 EFI - North America - 2019
-
№АртикулНазвание
-
10715002374 Protective Plate Kit. Package STDProtective Plate Kit. Package STD
-
10705204031 Central Skid Plate. Except Package STDCentral Skid Plate. Except Package STD
-
15705007820 Skid Plate. Package XXCSkid Plate. Package XXC
-
20207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
25207762044 Carriage Bolt M6 X 20Carriage Bolt M6 X 20
-
26250000712 Torx Screw M6 X 20. Except Package STDTorx Screw M6 X 20. Except Package STD
-
27234062670 Flat Washer, Stainless. Except Package STDFlat Washer, Stainless. Except Package STD
-
30233261434 Flanged Elastic Nut M6. Package XXCFlanged Elastic Nut M6. Package XXC
-
35233281434 Hex. Flanged Elastic Nut M8. Except Package STDHex. Flanged Elastic Nut M8. Except Package STD
-
40705003505 Bumper Support. Package STDBumper Support. Package STD
-
40705003505 Bumper Support. Package XXC - BlackBumper Support. Package XXC - Black
-
40705011386 Bumper Support. Package XXC - Timeless Black. Includes 40 to 40aBumper Support. Package XXC - Timeless Black. Includes 40 to 40a
-
60233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
65250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
67250000740 Torx Screw M8 X 20, Scotch GripTorx Screw M8 X 20, Scotch Grip
-
70705004176 LH Footboard. Includes 70 to 70aLH Footboard. Includes 70 to 70a
-
70a232862412 Square Nut M6Square Nut M6
-
80705004177 RH Footboard. Includes 80 to 80aRH Footboard. Includes 80 to 80a
-
80a232862412 Square Nut M6Square Nut M6
-
85207582544 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
90207763044 Carriage Bolt M6 X 30Carriage Bolt M6 X 30
-
95250300039 Ball Head StudBall Head Stud
-
100234062410 Flat Washer 6 mmFlat Washer 6 mm
