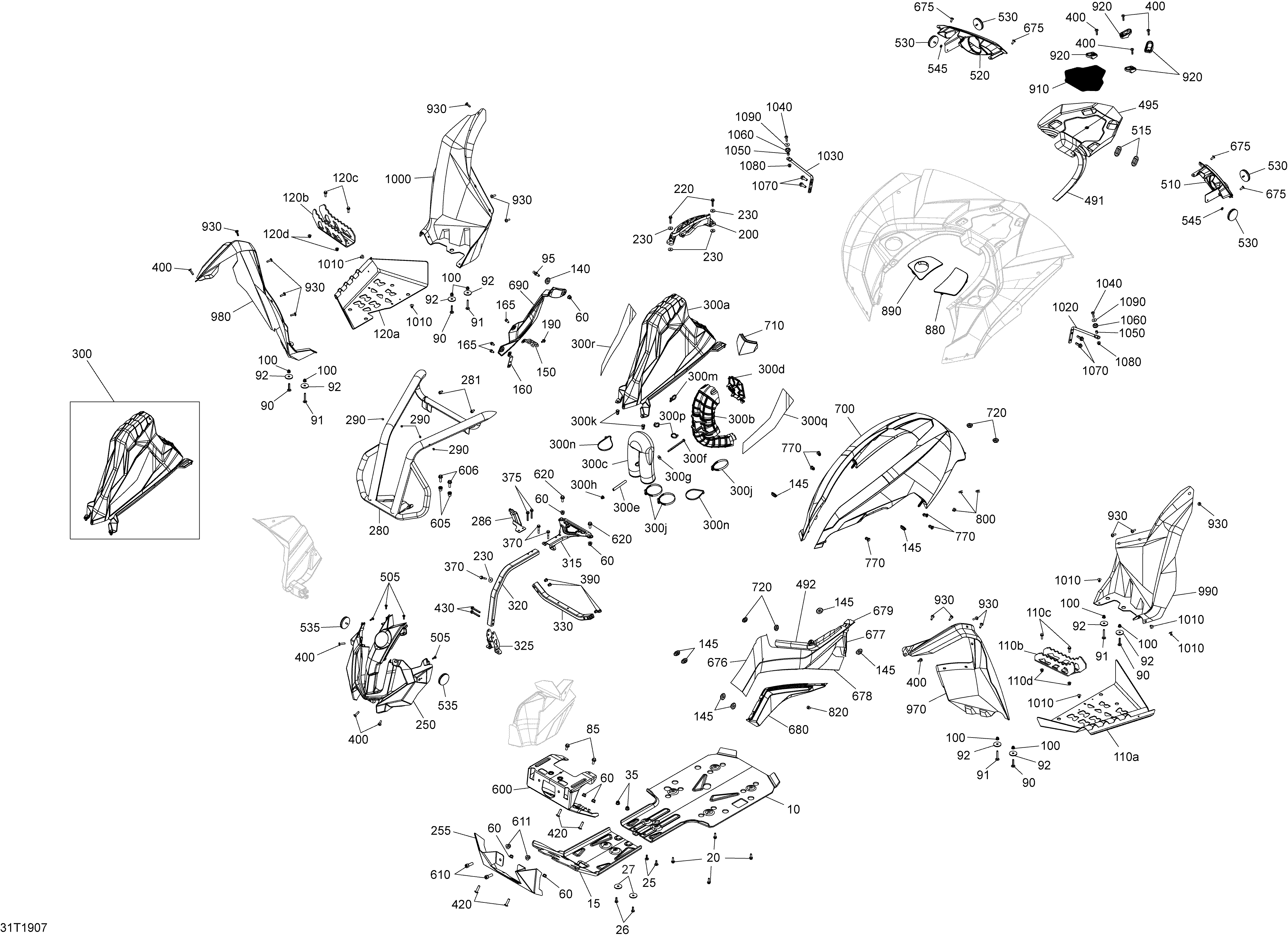

09- Body And Accessories - XMR для BRP 001 - Renegade 570 EFI - North America - 2019
-
№АртикулНазвание
-
10705204031 Central Skid PlateCentral Skid Plate
-
15705205019 Front Skid PlateFront Skid Plate
-
20207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
25207762044 Carriage Bolt M6 X 20Carriage Bolt M6 X 20
-
26250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
27234062670 Flat Washer, StainlessFlat Washer, Stainless
-
35233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
60233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
85207582544 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
90207763554 Carriage Bolt M6 X 35Carriage Bolt M6 X 35
-
91207764550 Carriage Bolt M6 X 45Carriage Bolt M6 X 45
-
92250200158 Flat Washer M8Flat Washer M8
-
95250300039 Ball Head StudBall Head Stud
-
100233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
110a705010490 LH FootboardLH Footboard
-
110b705010493 LH Foot RestLH Foot Rest
-
110c207662034 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
110d233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
120a705010494 RH FootboardRH Footboard
-
120b705010499 RH Foot RestRH Foot Rest
-
120c207662034 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
120d233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
140293720053 GrommetGrommet
-
145705000321 Oval WasherOval Washer
-
150705011461 Engine Cover SupportEngine Cover Support
-
160705003646 Engine Cover SupportEngine Cover Support
-
165210261250 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
190207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
200705003838 Lever IndicatorLever Indicator
-
220207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
230224061201 Flat WasherFlat Washer
-
250705010673 Front FaciaFront Facia
-
255705009707 Front FaciaFront Facia
-
280705010632 Red Front Bumper. Liquid GoldRed Front Bumper. Liquid Gold
-
280705012139 Paint Sunburst Yellow Front Bumper. Package XMR - BlackPaint Sunburst Yellow Front Bumper. Package XMR - Black
-
281207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
286705009695 Fuse BracketFuse Bracket
-
290293000121 PlugPlug
-
300705003556 DashboardDashboard
-
300a705009685 Hood XMRHood XMR
-
300b707001779 Upper Air InletUpper Air Inlet
-
300c707001782 Upper Air OutletUpper Air Outlet
-
300d705010922 Prefilter Screen. Includes 300d to 300pPrefilter Screen. Includes 300d to 300p
-
300e293900122 BushingBushing
-
300f230060060 Hex. Screw M6 X 100Hex. Screw M6 X 100
-
300g250200115 Flat Washer M6Flat Washer M6
-
300h233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
300j293650091 Norma ClampNorma Clamp
-
300k293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
300m710003168 Dart Tie Rap 200MMDart Tie Rap 200MM
-
300n293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
300p414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
300q704906375 Sunburst Yellow Hood Decal LH. Package XMR - Except Liquid GoldSunburst Yellow Hood Decal LH. Package XMR - Except Liquid Gold
-
300r704906376 Sunburst Yellow Hood Decal RH. Package XMR - Except Liquid GoldSunburst Yellow Hood Decal RH. Package XMR - Except Liquid Gold
-
315705003599 Painted BracketPainted Bracket
-
320705003511 Front TubeFront Tube
-
325705009706 SupportSupport
-
330705003510 Body TubeBody Tube
-
370207663544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
375207664044 Hex. Flanged Screw M6 X 40Hex. Flanged Screw M6 X 40
-
390293450275 InsertInsert
-
400250000758 Torx Screw M6 X 25Torx Screw M6 X 25
-
420250000886 Torx Screw M8 X 30Torx Screw M8 X 30
-
430207664544 Flanged Hex. Screw M6 X 45Flanged Hex. Screw M6 X 45
-
491705002475 LH Lateral Panel, CamoLH Lateral Panel, Camo
-
492705010559 Heat ShieldHeat Shield
-
495705005840 Reflective SheetReflective Sheet
-
505250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
510705004731 LH Rear FaciaLH Rear Facia
-
515705003668 Oblong GrommetOblong Grommet
-
520705004732 RH Rear FaciaRH Rear Facia
-
530705011221 Red ReflectorRed Reflector
-
535705011222 Amber ReflectorAmber Reflector
-
545517225900 Flat WasherFlat Washer
-
600705009684 Skid PlateSkid Plate
-
605293450307 Insert, Half Hex Body M8 x 1.25Insert, Half Hex Body M8 x 1.25
-
606207582544 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
610205003044 Socket Screw M10 x 30Socket Screw M10 x 30
-
611233201434 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
620207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
675250000755 Torx Screw M6 X 16Torx Screw M6 X 16
-
676705005620 Reflective SheetReflective Sheet
-
677705010557 Heat ShieldHeat Shield
-
678705005622 Reflective SheetReflective Sheet
-
679705010558 Heat ShieldHeat Shield
-
680705004988 Panel ExtensionPanel Extension
-
690705004966 Engine CoverEngine Cover
-
710705002353 CapCap
-
720705003264 GrommetGrommet
-
770293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
800414479100 ClipClip
-
820293830005 Rubber BumperRubber Bumper
-
880705001910 Black LH CapBlack LH Cap
-
890705002420 Neck CapNeck Cap
-
910705002343 Rear CarpetRear Carpet
-
920705002342 HookHook
-
930250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
970705009736 MudguardMudguard
-
980705009737 RH Front MudguardRH Front Mudguard
-
990705009738 MudguardMudguard
-
1000705009739 MudguardMudguard
-
1010293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1020705010314 LH Fender SupportLH Fender Support
-
1030705010315 RH Fender SupportRH Fender Support
-
1040250000758 Torx Screw M6 X 25Torx Screw M6 X 25
-
1050293900105 BushingBushing
-
1060293720053 GrommetGrommet
-
1070207582544 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
1080233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
1090250200040 Flat WasherFlat Washer
