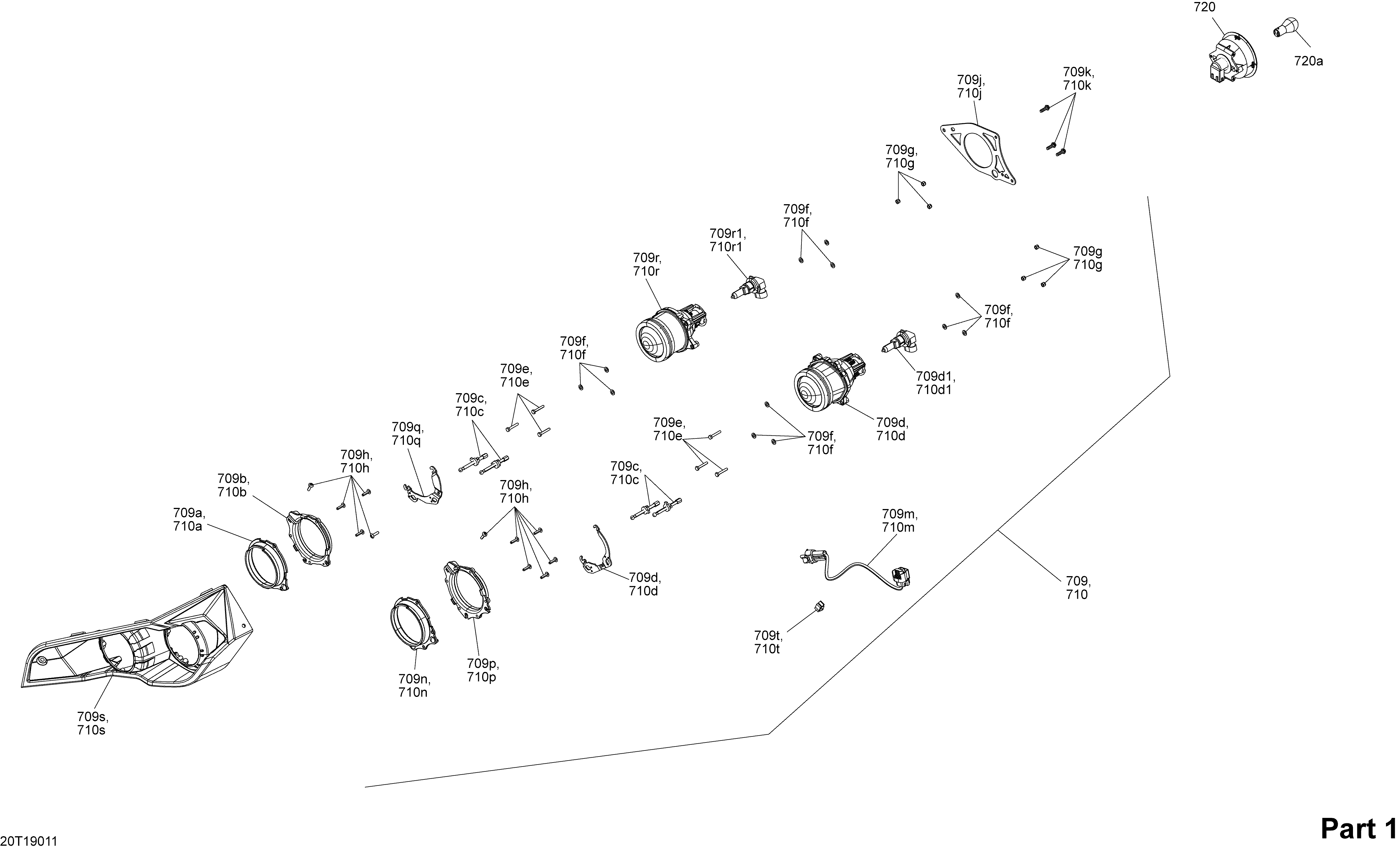

10- Electrical - 570 EFI - Part 1 для BRP 001 - Renegade 570 EFI - North America - 2019
-
№АртикулНазвание
-
709a710001083 LH Low Front HousingLH Low Front Housing
-
709b710001084 LH Low Rear HousingLH Low Rear Housing
-
709c710001147 Setting ScrewSetting Screw
-
709d710002524 Low Beam Ass'y. Includes 709d to 709d1Low Beam Ass'y. Includes 709d to 709d1
-
709d1415129249 Halogen BulbHalogen Bulb
-
709e207142544 Hex. Screw M4 X 25Hex. Screw M4 X 25
-
709f234051410 Flat Washer M5Flat Washer M5
-
709g232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
709h250000723 Phillips Screw K40 X 16Phillips Screw K40 X 16
-
709j705004309 Painted Headlamp SupportPainted Headlamp Support
-
709k241151640 Hex. Flanged Screw K50 X 2.24 X 16Hex. Flanged Screw K50 X 2.24 X 16
-
709m710005944 Light HarnessLight Harness
-
709n710001087 LH High Front HousingLH High Front Housing
-
709p710001088 LH High Rear HousingLH High Rear Housing
-
709q710005853 LH High Light SupportLH High Light Support
-
709r710002525 High Beam Ass'y. Includes 709r to 709r1High Beam Ass'y. Includes 709r to 709r1
-
709r1415129249 Halogen BulbHalogen Bulb
-
709s705004508 LH Front FaciaLH Front Facia
-
709t414227300 ClipClip
-
710a710001081 RH Low Front HousingRH Low Front Housing
-
710b710001082 RH Low Rear HousingRH Low Rear Housing
-
710c710001147 Setting ScrewSetting Screw
-
710d710002524 Low Beam Ass'yLow Beam Ass'y
-
710d1415129249 Halogen BulbHalogen Bulb
-
710e207142544 Hex. Screw M4 X 25Hex. Screw M4 X 25
-
710f234051410 Flat Washer M5Flat Washer M5
-
710g232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
710h250000723 Phillips Screw K40 X 16Phillips Screw K40 X 16
-
710j705004309 Painted Headlamp SupportPainted Headlamp Support
-
710k241151640 Hex. Flanged Screw K50 X 2.24 X 16Hex. Flanged Screw K50 X 2.24 X 16
-
710m710005944 Light HarnessLight Harness
-
710n710001085 RH High Front HousingRH High Front Housing
-
710p710001086 RH High Rear HousingRH High Rear Housing
-
710q710005856 RH High Light SupportRH High Light Support
-
710r710002525 High Beam Ass'yHigh Beam Ass'y
-
710r1415129249 Halogen BulbHalogen Bulb
-
710s705004509 RH Front FaciaRH Front Facia
-
710t414227300 ClipClip
-
720710001645 Tail Light. Includes 720 to 720aTail Light. Includes 720 to 720a
-
720a520000758 BulbBulb
