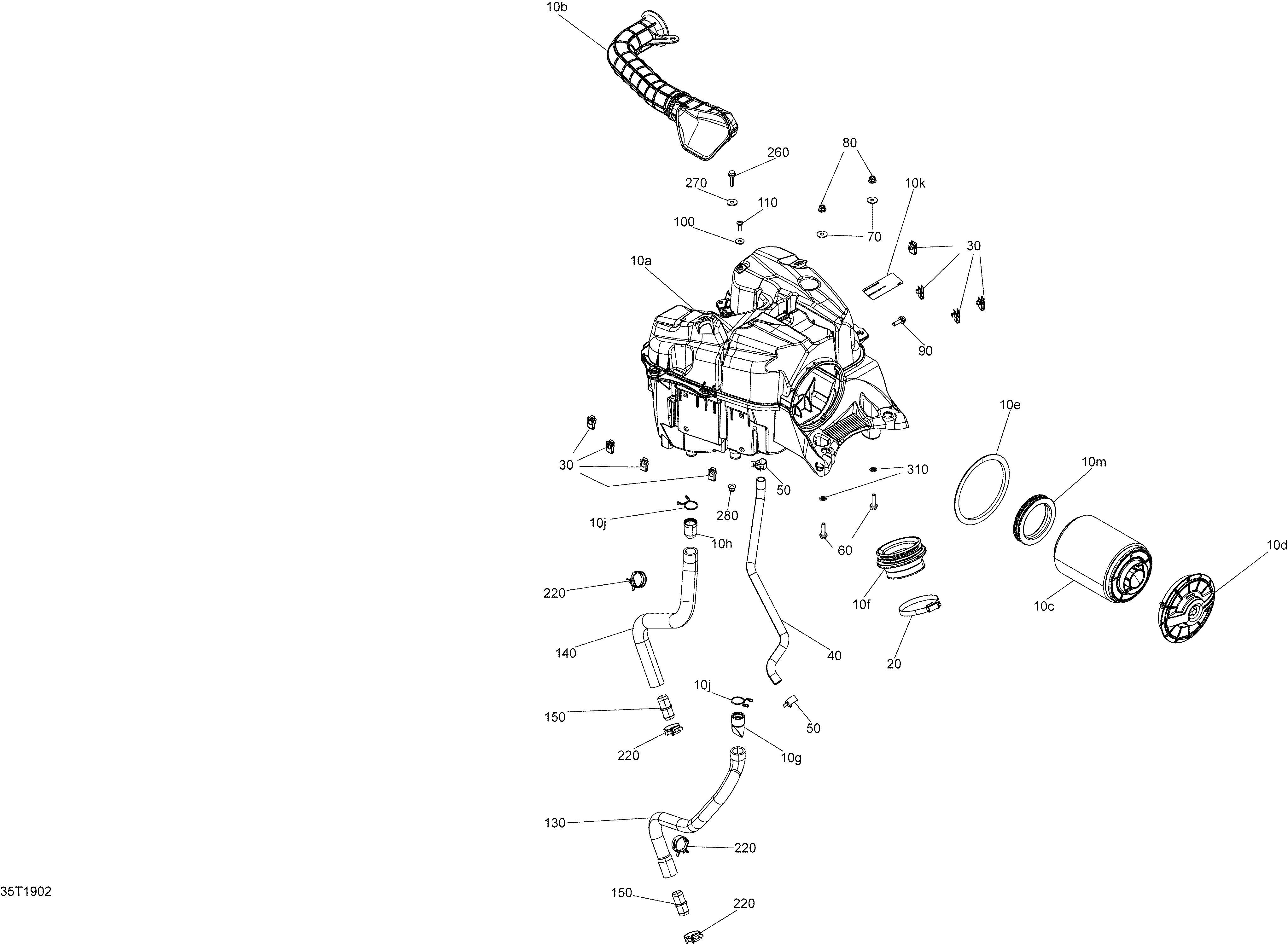

02- Air Intake - T3 - Except XMR для BRP 003 - Outlander MAX 650 EFI - T3 - 2019
-
№АртикулНазвание
-
10a707800724 Air BoxAir Box
-
10b707800375 Air Intake HoseAir Intake Hose
-
10c707800371 Air FilterAir Filter
-
10d715002174 Intake Silencer Cap Ass'yIntake Silencer Cap Ass'y
-
10e293300175 GasketGasket
-
10f707800723 Intake AdaPTOrIntake AdaPTOr
-
10g707800404 Drain TubeDrain Tube
-
10h707800080 Drain TubeDrain Tube
-
10j707800278 Retainer ClipRetainer Clip
-
10k707800373 Decal, Air Filter MaintenanceDecal, Air Filter Maintenance
-
10m707800470 Air Filter AdaptorAir Filter Adaptor
-
20293650091 Norma ClampNorma Clamp
-
30250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
40707800453 Vent HoseVent Hose
-
50293650110 Norma ClampNorma Clamp
-
60207662534 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
70250200082 Flat WasherFlat Washer
-
80233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
90207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
100391301600 WasherWasher
-
110250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
260207662534 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
270250200082 Flat WasherFlat Washer
-
280233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
310732610072 Push NutPush Nut
