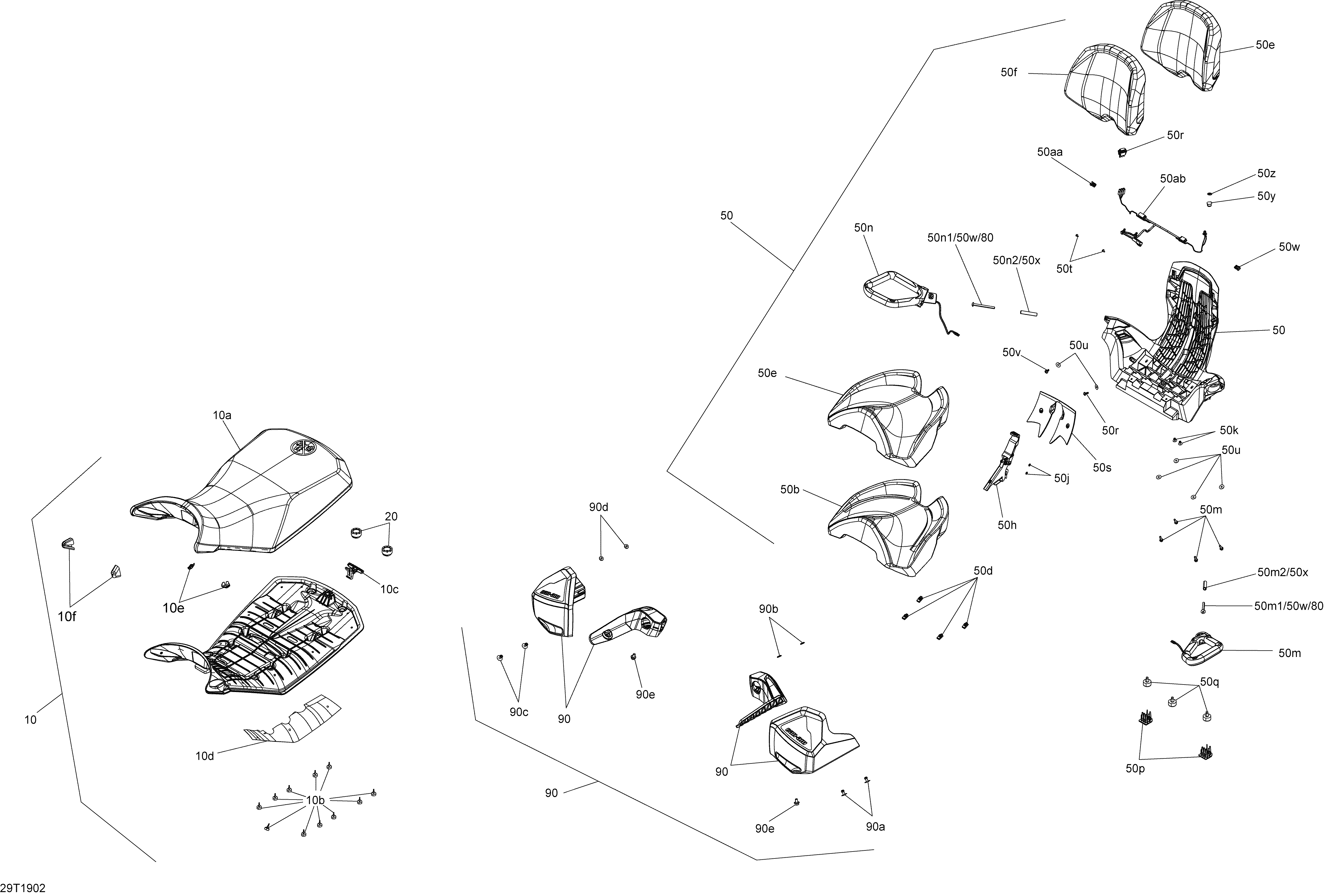

09- Seat для BRP 003 - Outlander MAX 650 EFI - T3 - 2019
-
№АртикулНазвание
-
10708002491 Seat Ass'y. Packages DPS, North Edition, XT, XTP & STD. Includes 10 to 10dSeat Ass'y. Packages DPS, North Edition, XT, XTP & STD. Includes 10 to 10d
-
10a708000724 Black Seat Cover. Packages DPS, North Edition, XT, XTP & STDBlack Seat Cover. Packages DPS, North Edition, XT, XTP & STD
-
10b708000759 Rubber Stopper. Packages DPS, North Edition, XT, XTP & STDRubber Stopper. Packages DPS, North Edition, XT, XTP & STD
-
10c708000909 Latch. Packages DPS, North Edition, XT, XTP & STDLatch. Packages DPS, North Edition, XT, XTP & STD
-
10d705005761 Heat Shield. Packages DPS, North Edition, XT, XTP & STDHeat Shield. Packages DPS, North Edition, XT, XTP & STD
-
10708002493 Assembly Seat. Packages PRO Nordic & PRO. Includes 10 to 10hAssembly Seat. Packages PRO Nordic & PRO. Includes 10 to 10h
-
10a708001972 Seat Cover. Packages PRO Nordic & PROSeat Cover. Packages PRO Nordic & PRO
-
10b708000759 Rubber Stopper. Packages PRO Nordic & PRORubber Stopper. Packages PRO Nordic & PRO
-
10c708000909 Latch. Packages PRO Nordic & PROLatch. Packages PRO Nordic & PRO
-
10d705005761 Heat Shield. Packages PRO Nordic & PROHeat Shield. Packages PRO Nordic & PRO
-
10e708002077 Center, Corner Seat. Packages PRO Nordic & PROCenter, Corner Seat. Packages PRO Nordic & PRO
-
10f269001669 RH, Corner Seat. Packages PRO Nordic & PRORH, Corner Seat. Packages PRO Nordic & PRO
-
10g269001670 LH, Corner Seat. Packages PRO Nordic & PROLH, Corner Seat. Packages PRO Nordic & PRO
-
20708000760 Bumper RubberBumper Rubber
-
50a708002574 Seat Base. Except Package PRO NordicSeat Base. Except Package PRO Nordic
-
50b708002086 Seat. Except Package PRO Nordic. Includes 50b to 50dSeat. Except Package PRO Nordic. Includes 50b to 50d
-
50c708001581 Passenger Seat Cover. Except Package PRO NordicPassenger Seat Cover. Except Package PRO Nordic
-
50d250000957 Extruded Panel Nut M6. Except Package PRO NordicExtruded Panel Nut M6. Except Package PRO Nordic
-
50e708002081 Backrest. Except Package PRO Nordic. Includes 50e to 50fBackrest. Except Package PRO Nordic. Includes 50e to 50f
-
50f708001847 Back Rest Cover. Except Package PRO NordicBack Rest Cover. Except Package PRO Nordic
-
50g207562034 Hex. Flanged Screw M6 X 20, Scotch Grip. Except Package PRO NordicHex. Flanged Screw M6 X 20, Scotch Grip. Except Package PRO Nordic
-
50h708001532 Latch. Except Package PRO Nordic. Includes 50h to 50jLatch. Except Package PRO Nordic. Includes 50h to 50j
-
50j234051410 Flat Washer M5. Except Package PRO NordicFlat Washer M5. Except Package PRO Nordic
-
50k293150108 Pop Rivet 3/16”. Except Package PRO NordicPop Rivet 3/16”. Except Package PRO Nordic
-
50m703500806 LH Passenger Seat Handle Kit. Except Package PRO Nordic & North Edition. Includes 50m to 50m2LH Passenger Seat Handle Kit. Except Package PRO Nordic & North Edition. Includes 50m to 50m2
-
50m1250000617 Torx Screw M8 X 90. Except Package PRO Nordic & North EditionTorx Screw M8 X 90. Except Package PRO Nordic & North Edition
-
50m2705006129 Sleeve. Except Package PRO Nordic & North EditionSleeve. Except Package PRO Nordic & North Edition
-
50n703500807 RH Passenger Seat Handle Kit. Except Package PRO Nordic & North Edition. Includes 50n to 50n2RH Passenger Seat Handle Kit. Except Package PRO Nordic & North Edition. Includes 50n to 50n2
-
50n1250000617 Torx Screw M8 X 90. Except Package PRO Nordic & North EditionTorx Screw M8 X 90. Except Package PRO Nordic & North Edition
-
50n2705006129 Sleeve. Except Package PRO Nordic & North EditionSleeve. Except Package PRO Nordic & North Edition
-
50p708001483 Seat Support. Except Package PRO NordicSeat Support. Except Package PRO Nordic
-
50q708000758 Rubber Stopper. Except Package PRO NordicRubber Stopper. Except Package PRO Nordic
-
50r708001511 Insert. Except Package PRO Nordic & North EditionInsert. Except Package PRO Nordic & North Edition
-
50r710002900 Switch-Rocker. Package North EditionSwitch-Rocker. Package North Edition
-
50s708001512 Cap. Except Package PRO NordicCap. Except Package PRO Nordic
-
50t250000577 Torx Truss K40 X 12. Except Package PRO NordicTorx Truss K40 X 12. Except Package PRO Nordic
-
50u224060201 Flat Washer. Except Package PRO NordicFlat Washer. Except Package PRO Nordic
-
50v250000546 Oval Head Torx Screw K60 X 16. Except Package PRO NordicOval Head Torx Screw K60 X 16. Except Package PRO Nordic
-
50w250000806 Torx Truss M8 X 90. Except Package PRO NordicTorx Truss M8 X 90. Except Package PRO Nordic
-
50x705009248 Sleeve. Except Package PRO NordicSleeve. Except Package PRO Nordic
-
50y710003910 Pilot Lamp Cap. Except Package PRO Nordic & North EditionPilot Lamp Cap. Except Package PRO Nordic & North Edition
-
50y572103300 Cap. Package North EditionCap. Package North Edition
-
50z704902870 Decal. Visiere *Decal.-Visor. Package North EditionDecal. Visiere *Decal.-Visor. Package North Edition
-
50aa515175495 Female Housing, 3 Circuits. Package North EditionFemale Housing, 3 Circuits. Package North Edition
-
50ab710005933 Harness. Package North EditionHarness. Package North Edition
-
50ac710005037 Clip. Package North EditionClip. Package North Edition
-
80250000806 Torx Truss M8 X 90. Package North EditionTorx Truss M8 X 90. Package North Edition
-
90715001669 Wind Deflector. Package North Edition. Includes 90 to 90eWind Deflector. Package North Edition. Includes 90 to 90e
-
90A293150104 Pop Rivet 3/16''. Package North EditionPop Rivet 3/16''. Package North Edition
-
90b250200121 Flat Washer. Package North EditionFlat Washer. Package North Edition
-
90c293150104 Pop Rivet 3/16''. Package North EditionPop Rivet 3/16''. Package North Edition
-
90d250200121 Flat Washer. Package North EditionFlat Washer. Package North Edition
-
90e207561044 Flanged Screw M6 X 10, Scotch Grip. Package North EditionFlanged Screw M6 X 10, Scotch Grip. Package North Edition
