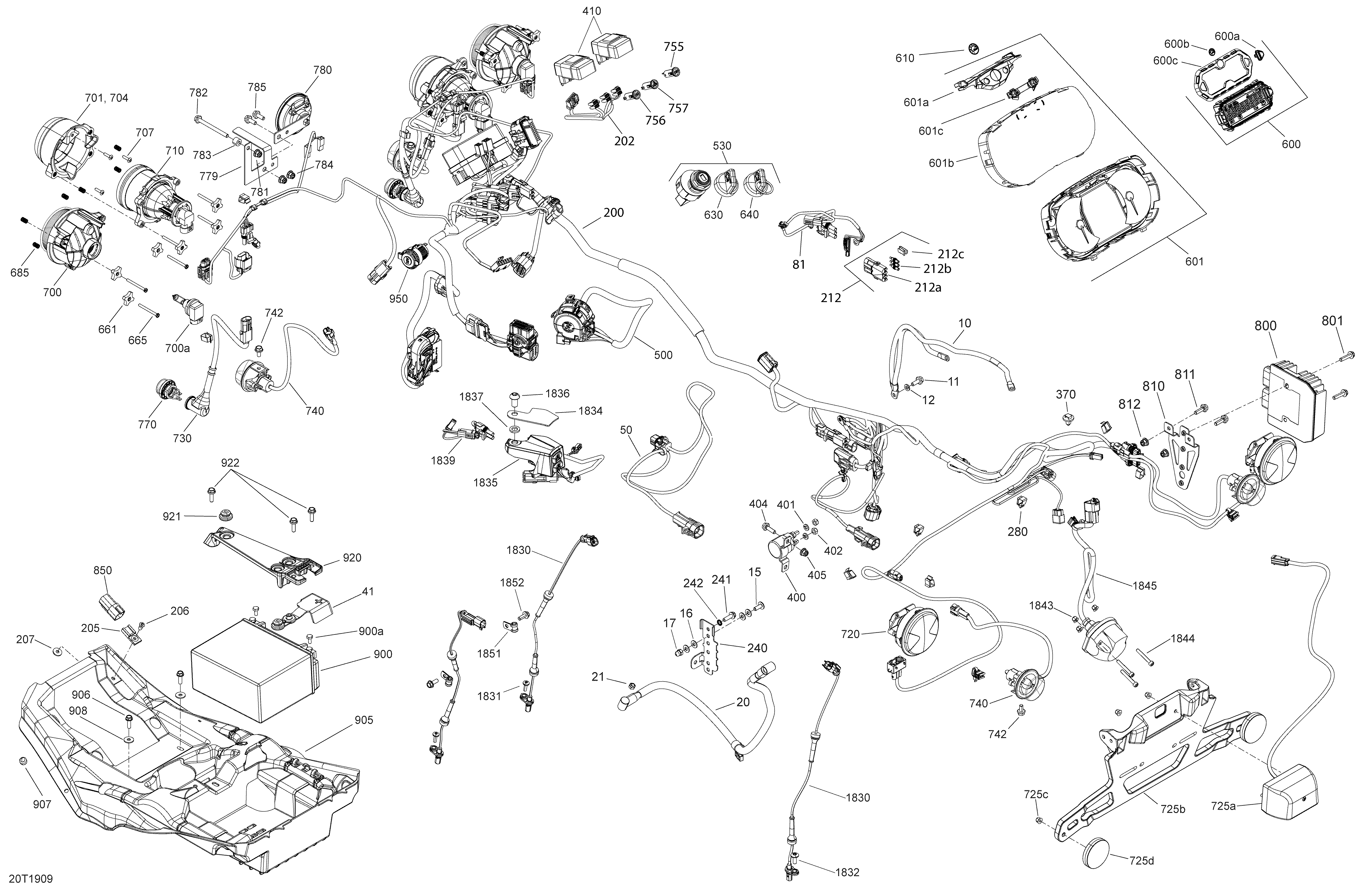

10- Electrical - 570 EFI & 650 EFI - Packages XT, XTP & Pro Nordic для BRP 003 - Outlander MAX 650 EFI - T3 - 2019
-
№АртикулНазвание
-
10710004382 Ground CableGround Cable
-
11207561644 Hex.Fla. Screw M6 X 16, Scotch GripHex.Fla. Screw M6 X 16, Scotch Grip
-
12234161601 Lock Washer Helical M6Lock Washer Helical M6
-
15250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
-
16224061121 Flat WasherFlat Washer
-
17232361493 Domed Nut M6Domed Nut M6
-
20710004377 Positive CablePositive Cable
-
21232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
41710002569 CapCap
-
50710005819 Extension Cable 02 SensorExtension Cable 02 Sensor
-
81710005246 Winch CableWinch Cable
-
200710006170 No ABS Cable. Ecept Package XT, XTPNo ABS Cable. Ecept Package XT, XTP
-
200710006169 Harness. Package XT, XTPHarness. Package XT, XTP
-
202710005840 Indicator Light CableIndicator Light Cable
-
205270000141 ClipClip
-
206390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
207391301600 WasherWasher
-
240710004118 Connector BracketConnector Bracket
-
241210262040 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
242234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
280414227300 ClipClip
-
370293730040 Mount DartMount Dart
-
400710001364 Starter RelayStarter Relay
-
401234161601 Lock Washer Helical M6Lock Washer Helical M6
-
402232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
404207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
405233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
410710003239 Flasher UnitFlasher Unit
-
500710006211 LH Multi Fonction ControlLH Multi Fonction Control
-
530710003847 Ignition SwitchIgnition Switch
-
600710006329 Speedometer. Packages XT & Pro Nordic. Includes 600 to 600cSpeedometer. Packages XT & Pro Nordic. Includes 600 to 600c
-
600a710001183 Trim Ring Ass'y. Packages XT & Pro NordicTrim Ring Ass'y. Packages XT & Pro Nordic
-
600a1704904615 BRP Logo, 13 mm. Packages XT & Pro NordicBRP Logo, 13 mm. Packages XT & Pro Nordic
-
600b715900265 Button. Packages XT & Pro NordicButton. Packages XT & Pro Nordic
-
601710006331 Speedometer. Package XTP. Includes 601 to 601cSpeedometer. Package XTP. Includes 601 to 601c
-
601a705004366 Cap Support. Package XTPCap Support. Package XTP
-
601b415129349 Lens. Package XTPLens. Package XTP
-
601c415129355 Speedometer Button. Package XTPSpeedometer Button. Package XTP
-
610516006224 BRP Logo, 20 mm. Package XTPBRP Logo, 20 mm. Package XTP
-
610704904615 BRP Logo, 13 mm. Packages XT & Pro NordicBRP Logo, 13 mm. Packages XT & Pro Nordic
-
630710002183 Grey, Electronic KeyGrey, Electronic Key
-
640710000817 Black, Electronic KeyBlack, Electronic Key
-
661572106600 HandleHandle
-
665250000718 Hex. Screw K40 X 45Hex. Screw K40 X 45
-
685517168600 SpringSpring
-
700710006177 Low Beam. Includes 700 to 700aLow Beam. Includes 700 to 700a
-
700a715900141 Bulb 12V 55WBulb 12V 55W
-
701710002291 RH High Front HousingRH High Front Housing
-
704710002292 LH High Front HousingLH High Front Housing
-
707250000723 Phillips Screw K40 X 16Phillips Screw K40 X 16
-
710710002525 High Beam Ass'y. Includes 710 to 710aHigh Beam Ass'y. Includes 710 to 710a
-
710a415129249 Halogen BulbHalogen Bulb
-
720710001645 Tail Light. Includes 720 to 720aTail Light. Includes 720 to 720a
-
720a520000758 BulbBulb
-
725a710005563 License Plate LightLicense Plate Light
-
725b708300434 Plate SupportPlate Support
-
725c233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
725d705011221 Red ReflectorRed Reflector
-
730710005676 Position Light HarnessPosition Light Harness
-
740710002964 FlasherFlasher
-
742207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
755710005766 Pilot Light Trailer FlasherPilot Light Trailer Flasher
-
756710005767 Pilot Light Tail LampPilot Light Tail Lamp
-
757710003909 Pilot LampPilot Lamp
-
770710001726 Day LightDay Light
-
779710006113 Horn SupportHorn Support
-
780710004791 HornHorn
-
781233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
782207667044 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
783708001129 BushingBushing
-
784233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
785207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
800710005842 Voltage RegulatorVoltage Regulator
-
801210262550 Hex. Flanged Forming Screw M6 X 25Hex. Flanged Forming Screw M6 X 25
-
810710001752 Rectifier SupportRectifier Support
-
811207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
812233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
850710004904 Connector PlugConnector Plug
-
900410301203 Battery Ass'y, 18 Amperes. Includes 900 to 900aBattery Ass'y, 18 Amperes. Includes 900 to 900a
-
900a250000282 Battery Bolt KitBattery Bolt Kit
-
905710005528 Battery SupportBattery Support
-
906210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
907293830005 Rubber BumperRubber Bumper
-
908234062670 Flat Washer, StainlessFlat Washer, Stainless
-
920710002404 Fixation PlateFixation Plate
-
921705003666 Rubber GrommetRubber Grommet
-
922207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
950710001248 Outlet DCOutlet DC
-
1830710005610 Speed Sensor. Except Package Pro NordicSpeed Sensor. Except Package Pro Nordic
-
1831250000720 Torx Screw K50 X 16. Except Package Pro NordicTorx Screw K50 X 16. Except Package Pro Nordic
-
1832250000721 Torx Truss Screw M6 X 16. Except Package Pro NordicTorx Truss Screw M6 X 16. Except Package Pro Nordic
-
1834715004008 Top Plate. Package Pro NordicTop Plate. Package Pro Nordic
-
1835710004990 Multifonction Housing Assembly. Package Pro NordicMultifonction Housing Assembly. Package Pro Nordic
-
1836710005908 Screw M10 X1.25 X 20 BHCS S.Grip. Package Pro NordicScrew M10 X1.25 X 20 BHCS S.Grip. Package Pro Nordic
-
1837503192496 Washer. Package Pro NordicWasher. Package Pro Nordic
-
1843233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
1844205053588 Socket Head Screw M5 X 35Socket Head Screw M5 X 35
-
1845710005846 Trailer HarnessTrailer Harness
-
1851715900250 Hose Clip. Except Package Pro NordicHose Clip. Except Package Pro Nordic
-
1852210261640 Hex Flanged Screw M6 X 16. Except Package Pro Nordic. A completeHex Flanged Screw M6 X 16. Except Package Pro Nordic. A complete
