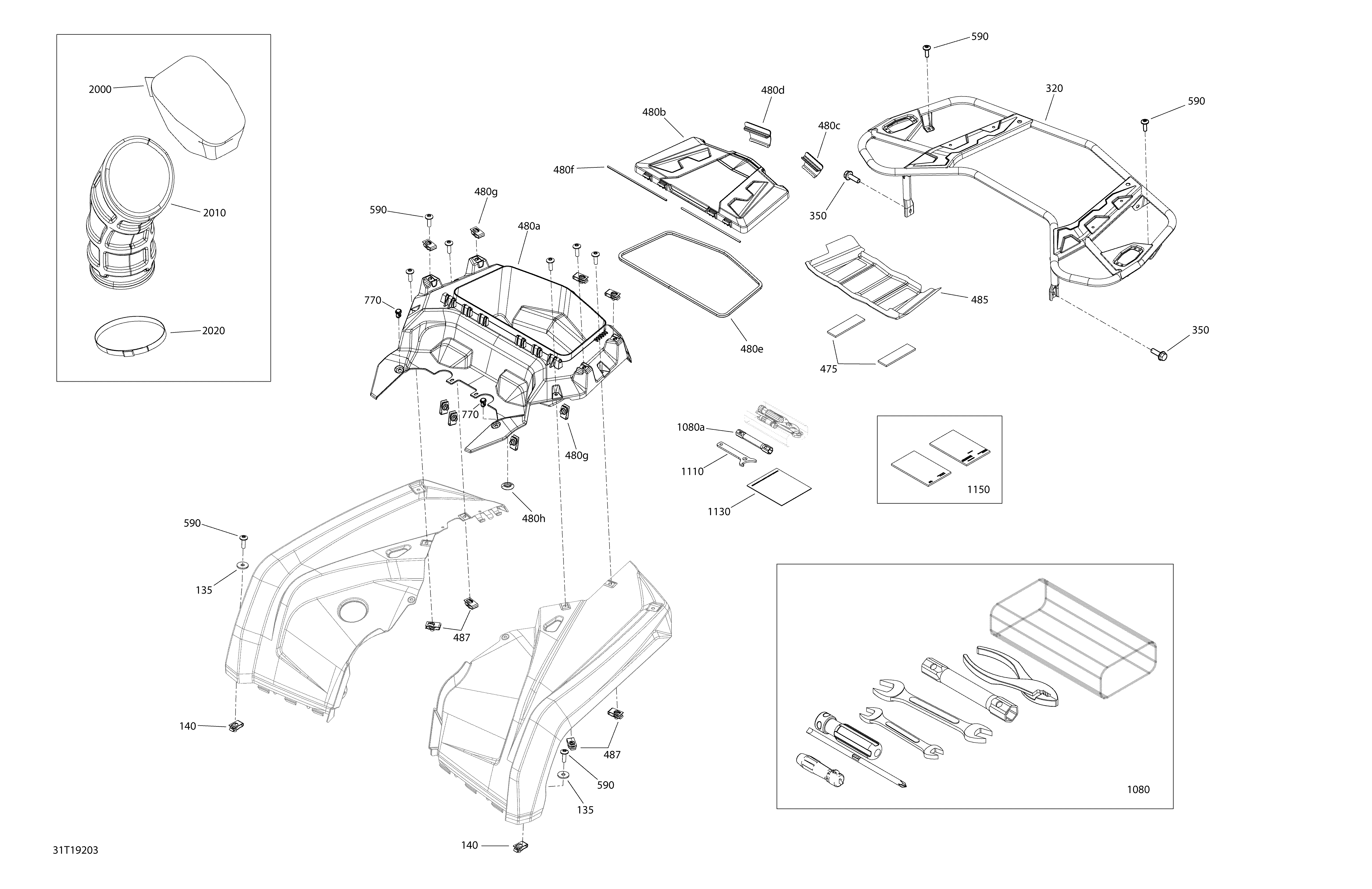

09- Body And Accessories 6X6 - 450 EFI - Squadron Green - Rear для BRP 001 - Outlander 6X6 - 450 EFI - T3 - 2019
-
№АртикулНазвание
-
135224061201 Flat WasherFlat Washer
-
140250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
320705013392 Black - Front Luggage RackBlack - Front Luggage Rack
-
350250001016 Hex Flanged Screw M8 X 25 S.GripHex Flanged Screw M8 X 25 S.Grip
-
475293830163 Rubber PadRubber Pad
-
480a705007136 Rear BoxRear Box
-
480b715005833 Storage Cover Kit. North AmericaStorage Cover Kit. North America
-
480b715005835 Rear Storage Box Cover. T3Rear Storage Box Cover. T3
-
480c705007448 LH Box Rear LatchLH Box Rear Latch
-
480d705007921 RH Box Rear Latch. Includes 480d to 480eRH Box Rear Latch. Includes 480d to 480e
-
480e715900411 Neoprene SealNeoprene Seal
-
480f705007531 Retaining RodRetaining Rod
-
480g250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
480h414859400 CapCap
-
485705007487 Heat Deflector SheetHeat Deflector Sheet
-
487250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
590250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
770293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
1080704700168 Tool Kit. Includes 1080 to 1080aTool Kit. Includes 1080 to 1080a
-
1080a529000085 Socket Wrench 14/16MMSocket Wrench 14/16MM
-
1110529000035 Adjustement WrenchAdjustement Wrench
-
1130219400038 Waranty FormWaranty Form
-
1150219001376 Manual Winch Kit. Package Pro NordicManual Winch Kit. Package Pro Nordic
-
2000707001786 CVT FilterCVT Filter
-
2010707001864 CVT InletCVT Inlet
-
2020293650240 Crimp ClampCrimp Clamp
