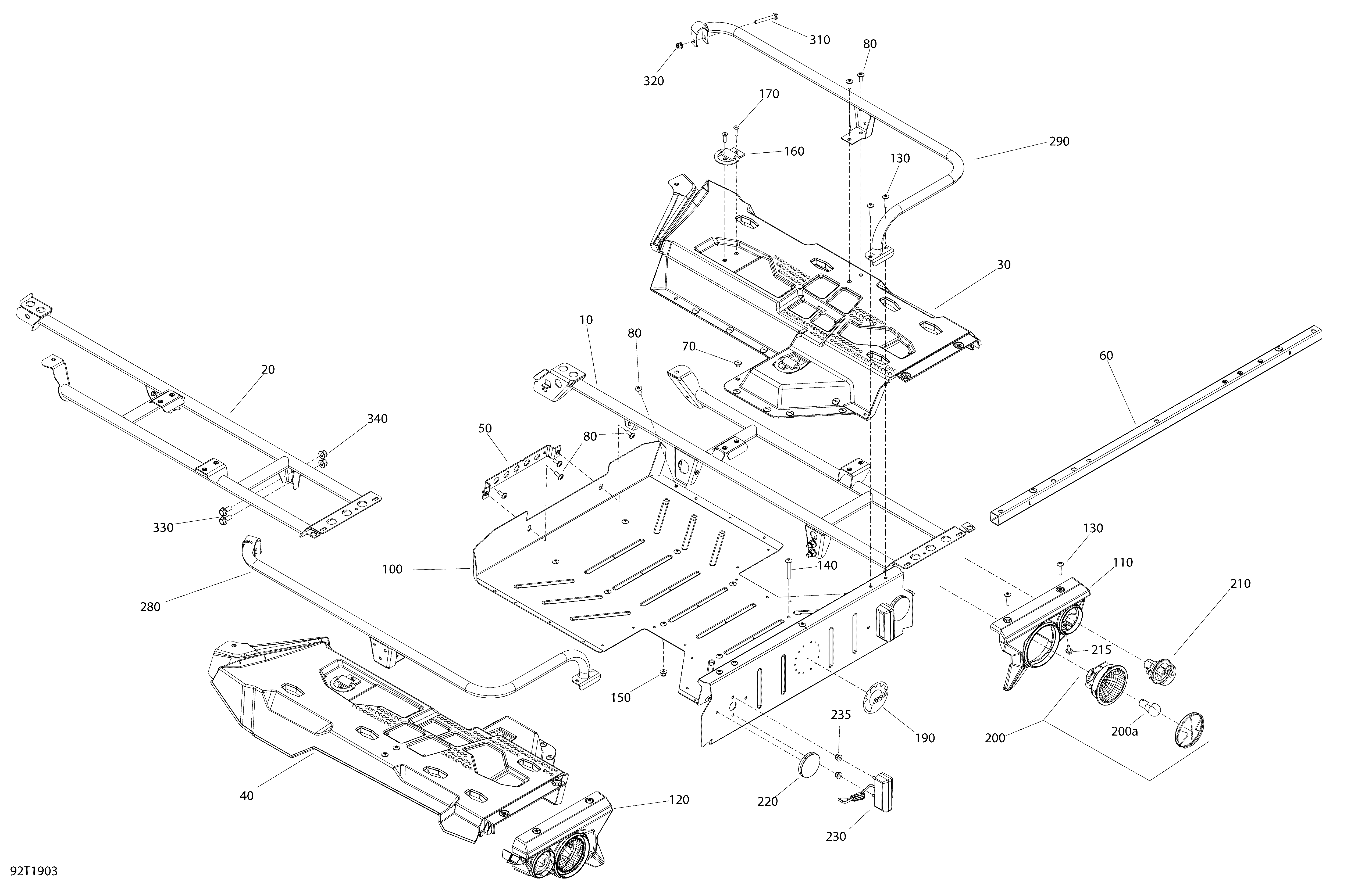

09- Cargo 6X6 - 450 EFI_Luggage Rack для BRP 001 - Outlander 6X6 - 450 EFI - T3 - 2019
-
№АртикулНазвание
-
10708302667 RH Fender SupportRH Fender Support
-
20708302668 LH Fender SupportLH Fender Support
-
30708302687 RH Cargo FenderRH Cargo Fender
-
40708302688 LH Cargo FenderLH Cargo Fender
-
50708302628 Fastening PlateFastening Plate
-
60708302619 Rear Support TubeRear Support Tube
-
70293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
80250000717 Torx Head Screw M6 X 16. Package Pro NordicTorx Head Screw M6 X 16. Package Pro Nordic
-
80250000717 Torx Head Screw M6 X 16. Package STDTorx Head Screw M6 X 16. Package STD
-
9020117 Washer. Package STD. not shownWasher. Package STD. not shown
-
100715006173 Black FlatbedBlack Flatbed
-
110708302734 RH Light CoverRH Light Cover
-
120708302735 LH Light CoverLH Light Cover
-
130250000807 Torx Truss Screw M6 X 25Torx Truss Screw M6 X 25
-
140250000748 Torx Screw M6 X 45Torx Screw M6 X 45
-
150233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
160708301189 Retaining Hook. Package Pro NordicRetaining Hook. Package Pro Nordic
-
170205362556 Screw-socket Hd.ctsk.m6 X 25. Package Pro NordicScrew-socket Hd.ctsk.m6 X 25. Package Pro Nordic
-
180205362096 Screw-Socket HD.CTSK.DIN.7991. Package Pro Nordic. not shownScrew-Socket HD.CTSK.DIN.7991. Package Pro Nordic. not shown
-
190219902672 Logo BRP, 68 mmLogo BRP, 68 mm
-
200710001645 Tail Light. Includes 200 to 200aTail Light. Includes 200 to 200a
-
200a520000758 BulbBulb
-
210710002964 FlasherFlasher
-
215207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
220705011221 Red ReflectorRed Reflector
-
230710002055 License Light. Includes 230 to 230aLicense Light. Includes 230 to 230a
-
230a219800128 Bulb. not shownBulb. not shown
-
235233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
280708302788 LH Side Rail. Package Pro NordicLH Side Rail. Package Pro Nordic
-
290708302789 RH Side Rail. Package Pro NordicRH Side Rail. Package Pro Nordic
-
310207664554 Hexagonal Flanged Screw. Package Pro NordicHexagonal Flanged Screw. Package Pro Nordic
-
320233261466 Hex. Flanged Elastic Nut M6. Package Pro NordicHex. Flanged Elastic Nut M6. Package Pro Nordic
-
330207682046 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
340233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
