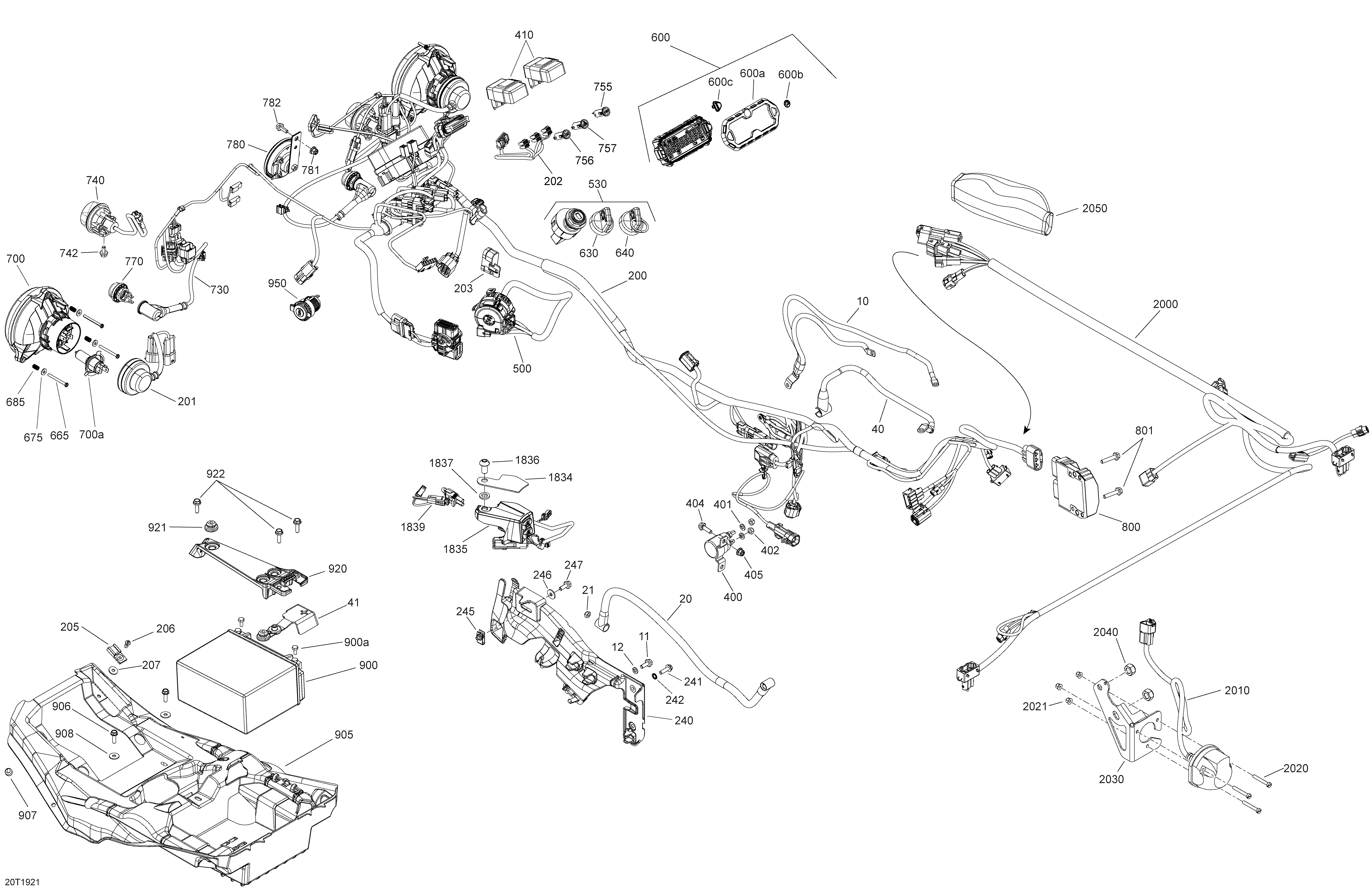

10- Electrical 6X6 - 450 EFI - T3 для BRP 001 - Outlander 6X6 - 450 EFI - T3 - 2019
-
№АртикулНазвание
-
10710004380 Ground CableGround Cable
-
11207561644 Hex.Fla. Screw M6 X 16, Scotch GripHex.Fla. Screw M6 X 16, Scotch Grip
-
12234161601 Lock Washer Helical M6Lock Washer Helical M6
-
20710004381 Positive CablePositive Cable
-
21232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
40710004376 Positive CablePositive Cable
-
41710002569 CapCap
-
200710006170 NOABS CABLENOABS CABLE
-
201710005780 Light CableLight Cable
-
202710005840 Indicator Light CableIndicator Light Cable
-
203710005760 DPS Connector CapDPS Connector Cap
-
205270000141 ClipClip
-
206390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
207391301600 WasherWasher
-
240707001280 Cable BracketCable Bracket
-
241210262040 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
242234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
245250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
246234062410 Flat Washer 6 mmFlat Washer 6 mm
-
247207561644 Hex.Fla. Screw M6 X 16, Scotch GripHex.Fla. Screw M6 X 16, Scotch Grip
-
400710001364 Starter RelayStarter Relay
-
401234161601 Lock Washer Helical M6Lock Washer Helical M6
-
402232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
404207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
405233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
410710003239 Flasher UnitFlasher Unit
-
500710006211 LH Multi Fonction ControlLH Multi Fonction Control
-
530710003847 Ignition SwitchIgnition Switch
-
600710006216 Speedometer. Includes 600 to 600cSpeedometer. Includes 600 to 600c
-
600a710001183 Trim Ring Ass'yTrim Ring Ass'y
-
600b704904615 BRP Logo, 13 mmBRP Logo, 13 mm
-
600c715900265 ButtonButton
-
630710002183 Grey, Electronic KeyGrey, Electronic Key
-
640710000817 Black, Electronic KeyBlack, Electronic Key
-
665250000718 Hex. Screw K40 X 45Hex. Screw K40 X 45
-
675517225900 Flat WasherFlat Washer
-
685517168600 SpringSpring
-
700710003900 Low Beam. Includes 700 to 700aLow Beam. Includes 700 to 700a
-
700a710000871 Bulb, 12V 35/35WBulb, 12V 35/35W
-
730710005676 Position Light HarnessPosition Light Harness
-
740710002964 FlasherFlasher
-
742207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
755710005766 Pilot Light Trailer FlasherPilot Light Trailer Flasher
-
756710005767 Pilot Light Tail LampPilot Light Tail Lamp
-
757710003909 Pilot LampPilot Lamp
-
770710001726 Day LightDay Light
-
780710004791 HornHorn
-
781233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
782207667044 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
800710005569 Voltage RegulatorVoltage Regulator
-
801207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
900410301203 Battery Ass'y, 18 Amperes. Includes 900 to 900aBattery Ass'y, 18 Amperes. Includes 900 to 900a
-
900a250000282 Battery Bolt KitBattery Bolt Kit
-
905710005528 Battery SupportBattery Support
-
906210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
907293830005 Rubber BumperRubber Bumper
-
908234062670 Flat Washer, StainlessFlat Washer, Stainless
-
920710002404 Fixation PlateFixation Plate
-
921705003666 Rubber GrommetRubber Grommet
-
922207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
950710001248 Outlet DCOutlet DC
-
1834715004008 Top PlateTop Plate
-
1835710004990 Multifonction Housing AssemblyMultifonction Housing Assembly
-
1836710005908 Screw M10 X1.25 X 20 BHCS S.GripScrew M10 X1.25 X 20 BHCS S.Grip
-
1837503192496 WasherWasher
-
1839710004567 CableCable
-
2000710005932 Rear Light HarnessRear Light Harness
-
2010710005846 Trailer HarnessTrailer Harness
-
202040233 Screw M5 X 35Screw M5 X 35
-
2021233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
2030705204572 Plug Fastening PlatePlug Fastening Plate
-
2040232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
2050710004193 SheathSheath
