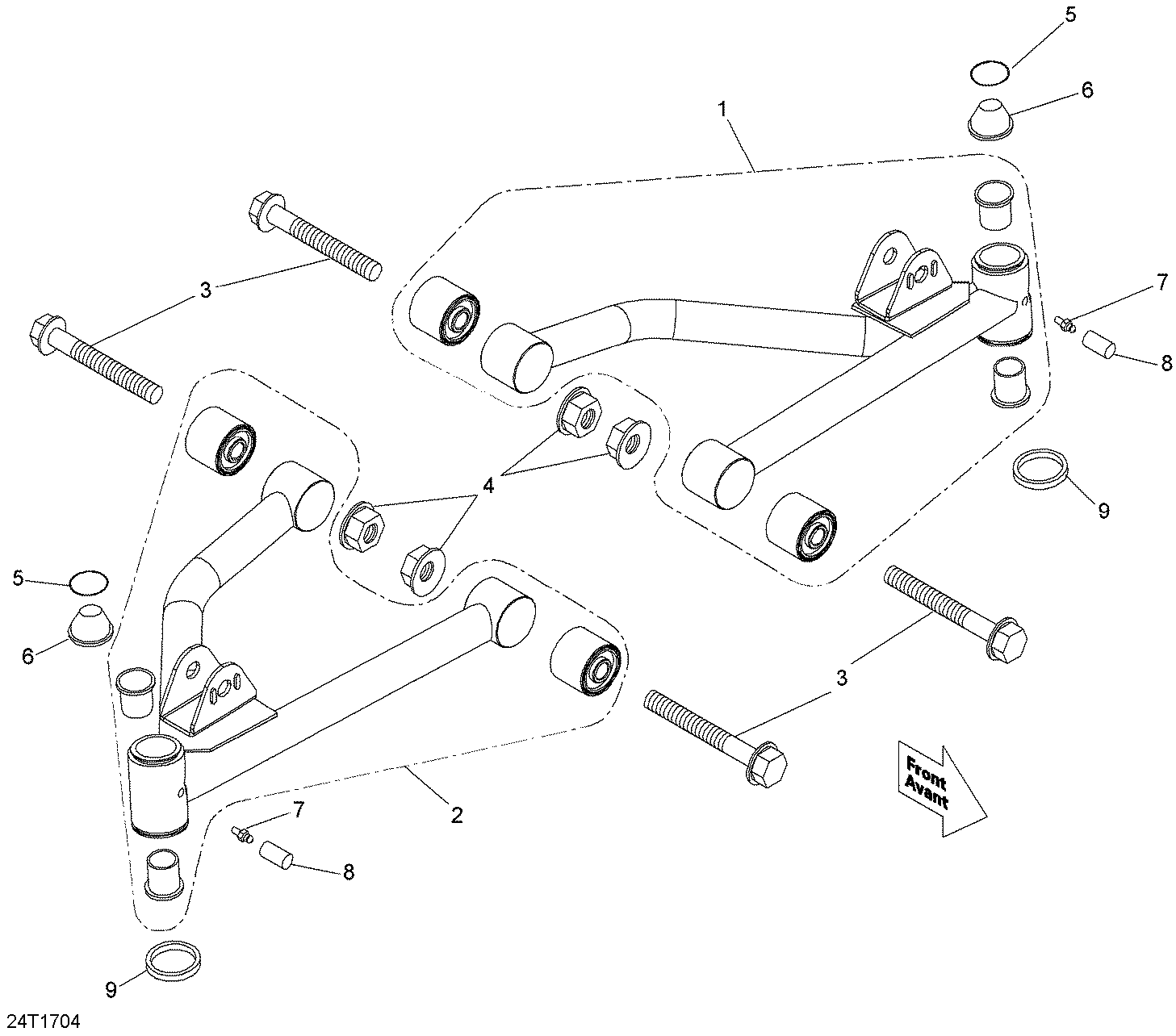

07- Front Suspension Arm для BRP 1- DS 70 - 2019
-
№АртикулНазвание
-
1V51449DGF060 LH Suspension ArmLH Suspension Arm
-
2V51459DGF050 RH Suspension ArmRH Suspension Arm
-
3V9600010048020LL Hexagonal Flanged BoltHexagonal Flanged Bolt
-
4232501416 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
5V95011CEK000 CirclipCirclip
-
6V52247DGF010LL Rubber ProtectorRubber Protector
-
7V43350MAA000LL Grease ValveGrease Valve
-
8V52225MAA000 Grease Valve CapGrease Valve Cap
-
9V52245MAA000 Seal CoverSeal Cover
