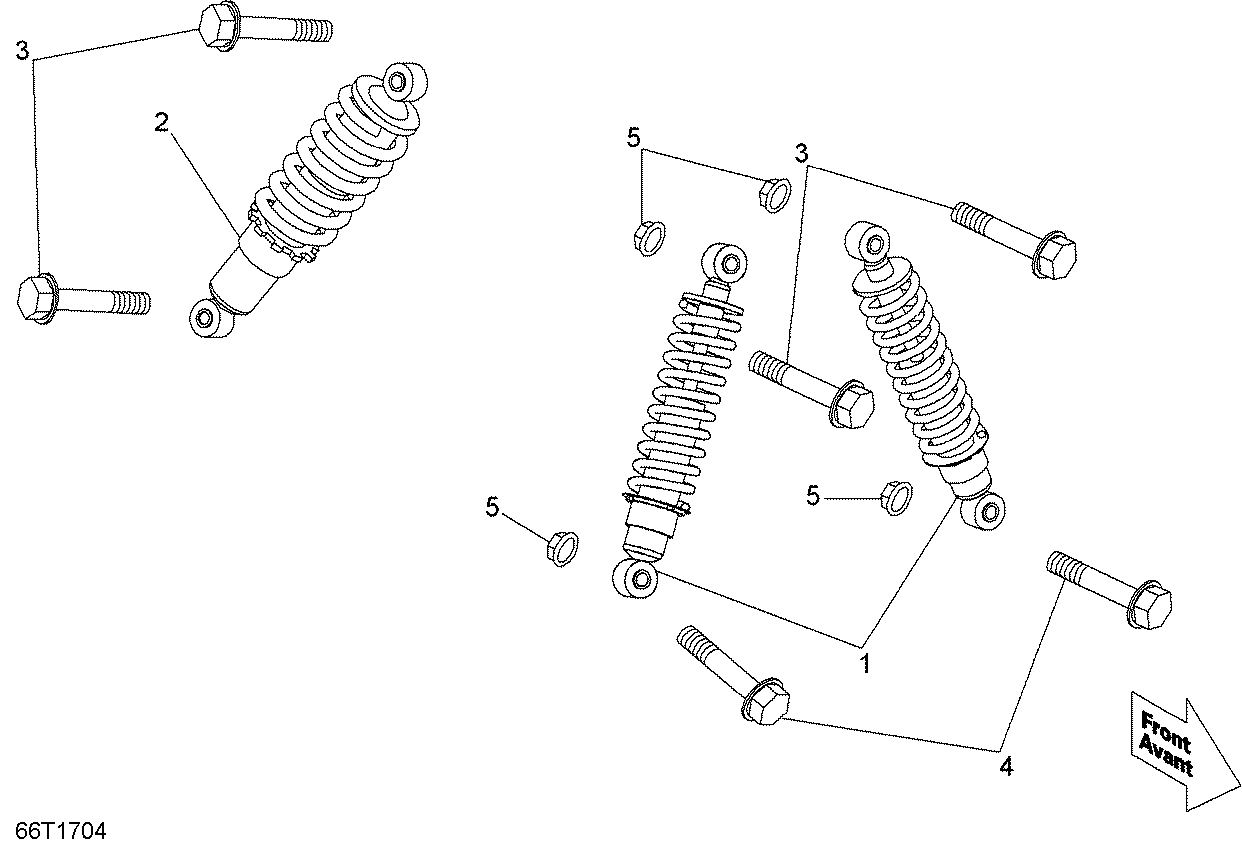

07- Shocks для BRP 1- DS 70 - 2019
-
№АртикулНазвание
-
1V52500DGF050RDLL Red Shock Absorber FrontRed Shock Absorber Front
-
1V52500DGF000BKLL Black Shock Absorber FrontBlack Shock Absorber Front
-
2V52400DGF040RDLL Red Shock Absorber RearRed Shock Absorber Rear
-
2V52400DGF000BKLL Black Shock Absorber RearBlack Shock Absorber Rear
-
3V9600010040LL Hexagonal Flanged BoltHexagonal Flanged Bolt
-
4V9200010040010LL Hexagonal Bolt M10 X 40Hexagonal Bolt M10 X 40
-
5232501416 Elastic Flanged Nut M10Elastic Flanged Nut M10
Все узлы модели:
- 00- Model Numbers
- 01- Chain Tensioner
- 01- Crankcase, Left
- 01- Crankcase, Right
- 01- Crankshaft and Pistons
- 01- Cylinder
- 01- Cylinder Head And Intake Manifold
- 01- Exhaust System
- 02- Carburetor And Air Cleaner
- 02- Fuel Tank
- 02- Oil Pump
- 03- Magneto And Electric Starter
- 05- Clutch
- 05- CVT Cover And Kick Starter
- 05- Gear Box
- 05- Shift Lever
- 06- Brakes
- 07- Front Suspension Arm
- 07- Handlebar
- • 07- Shocks
- 07- Steering
- 07- Wheels And Tires
- 08- Chain
- 08- Drive System, Rear
- 09- Accessories And Decals
- 09- Body And Accessories
- 09- Frame
- 09- Seat
- 09- Tools
- 10- Electrical Components
- 10- Headlights And Reflectors
- 10- Indicator Lights And Cover
- 10- Main Harness
